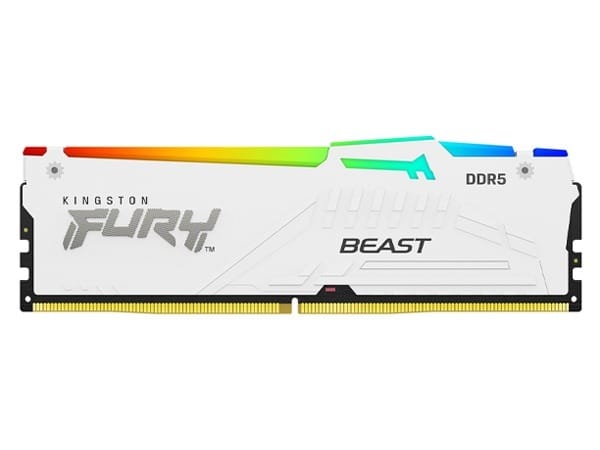

Kingston FURY KF560C36BWEAK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL36 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.0 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 36-38-38 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC |
 |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 36 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 64 GB |
| Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 2 x 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 3000 MHz |
| Memory data transfer rate | 6000 MT/s |
| Component for What this product is used as a part of (component for). | PC/Server |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 288-pin DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Memory ranking | 2 |
| Memory voltage The voltage (V) of the memory in the device. | 1.35 V |
| Module configuration | 4096M x 64 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| AMD Extended Profiles for Overclocking (EXPO) |
|
| AMD Extended Profiles for Overclocking (EXPO) version | 1.0 |
| SPD profile |
|
| Programming power voltage (VPP) | 1.8 V |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China, Taiwan |
| Cooling type The method used to cool the device or to cool the air around the device. | Heatsink |
| Lead plating | Gold |
| Backlight Product has a built-in light source for its illuminating. |
|
| Backlight colour | Red/Green/Blue |
| JEDEC standard |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 7.1 mm |
| Depth The distance from the front to the back of something. | 133.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 42.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 90 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 121.9 mm |
| Package depth The distance from the front to the back of the packaging. | 14 mm |
| Package height The distance from the top to the bottom of the packaging. | 171.5 mm |
| Package weight Weight of the packaged product. | 133.1 g |
| Logistics data | |
| Master (outer) case width | 190.5 mm |
| Master (outer) case length | 254 mm |
| Master (outer) case height | 177.8 mm |
| Master (outer) case gross weight | 1.51 kg |
| Products per master (outer) case | 10 pc(s) |
| SKU | 728765 |
| MPN | KF560C36BWEAK2-64 |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kingston.com/ |
