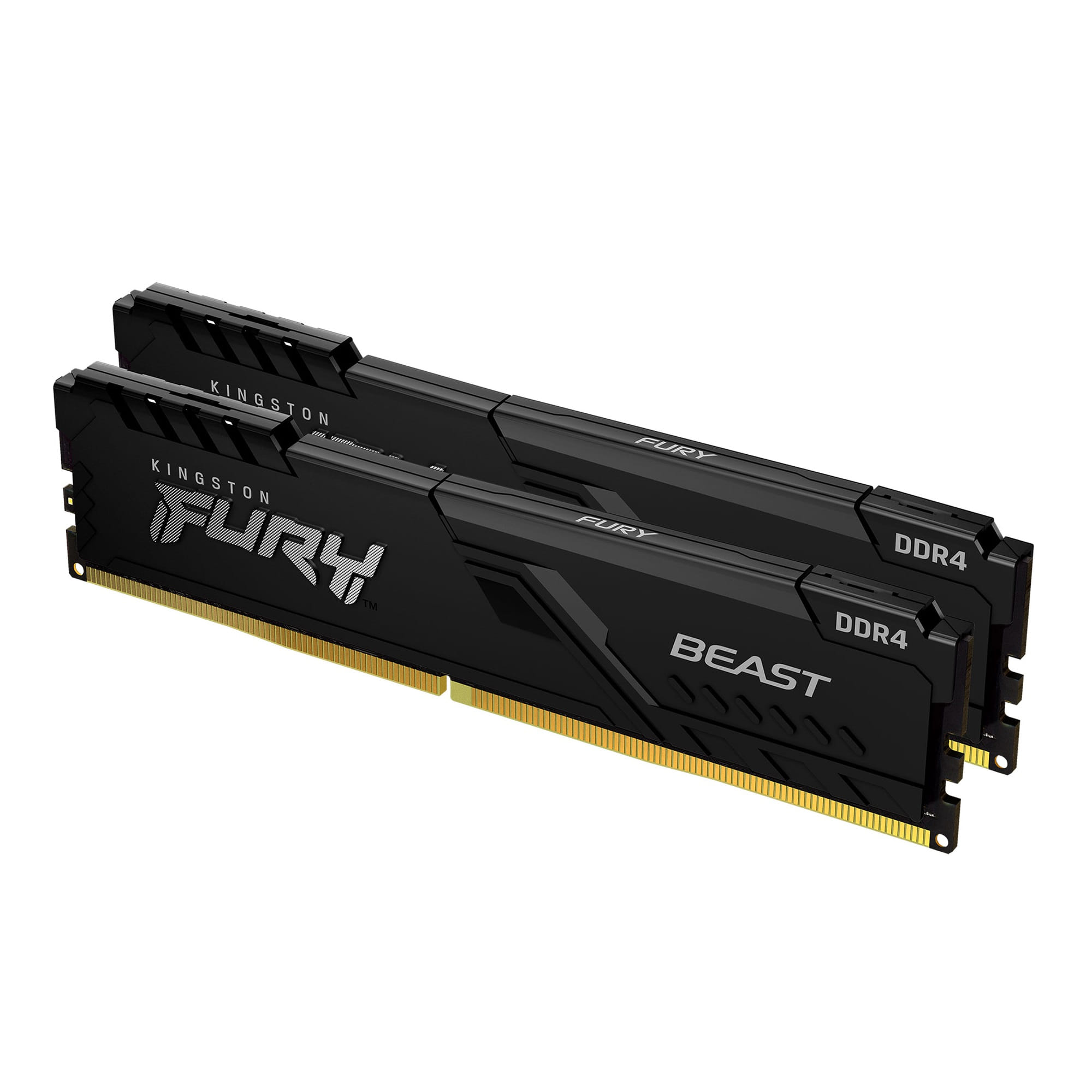

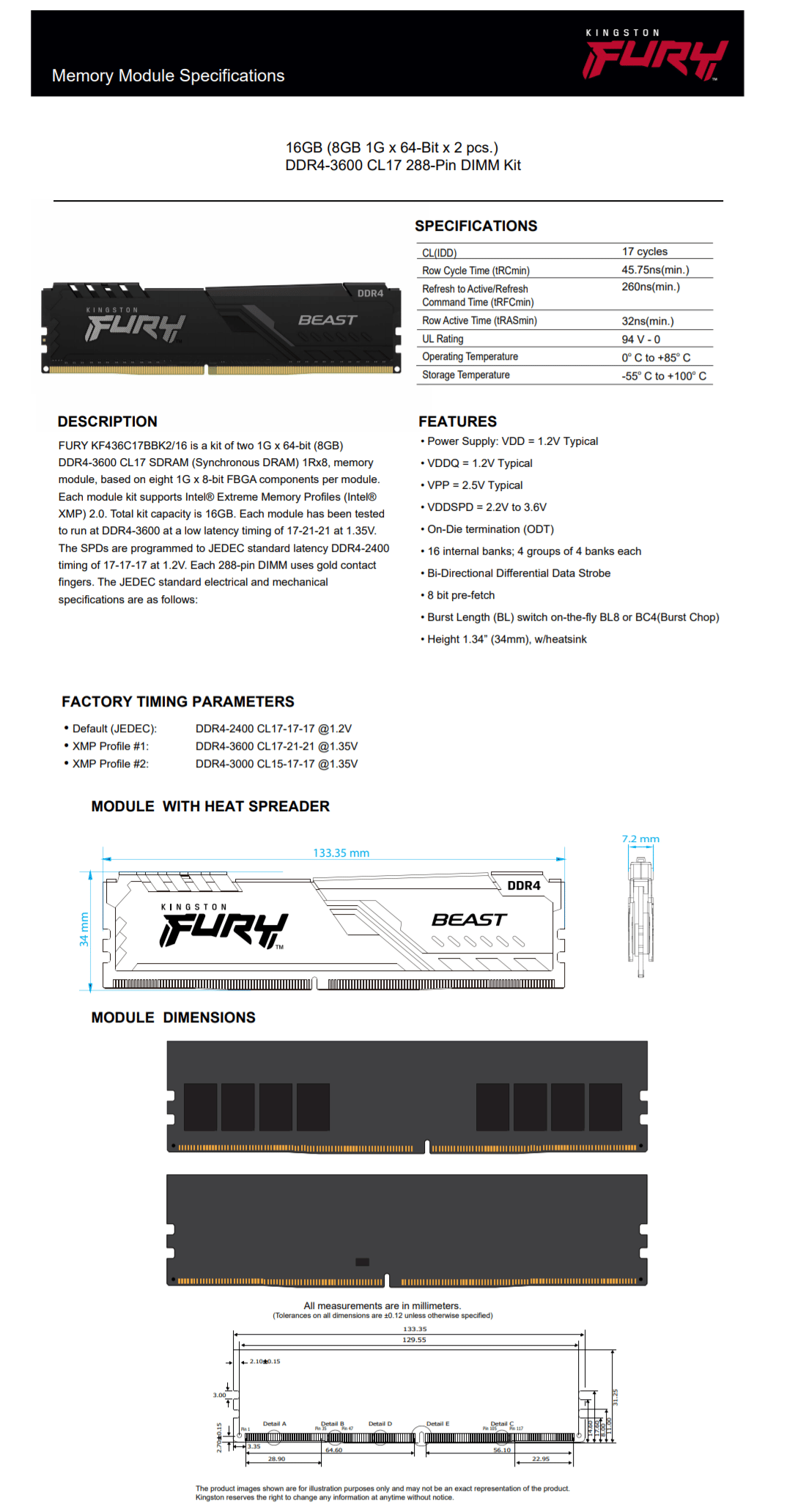

16GB DDR4 3600MHz Non-ECC Unbuffered DIMM CL17 1RX8 1.35V 288-pin 8Gbit
| Features | |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 17 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 16 GB |
| Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 2 x 8 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 3600 MHz |
| Component for What this product is used as a part of (component for). | PC/Server |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 288-pin DIMM |
| Memory voltage The voltage (V) of the memory in the device. | 1.2 V |
| Module configuration | 1024M x 64 |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 260 ns |
| Row active time | 32 ns |
| Intel Extreme Memory Profile (XMP) |
 |
| Programming power voltage (VPP) | 2.5 V |
| Cooling type The method used to cool the device or to cool the air around the device. | Heatsink |
| Lead plating | Gold |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 133.3 mm |
| Depth The distance from the front to the back of something. | 7.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 34.1 mm |
| SKU | 520490 |
| MPN | KF436C17BBK2/16 |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kingston.com/ |
