2133 MHz

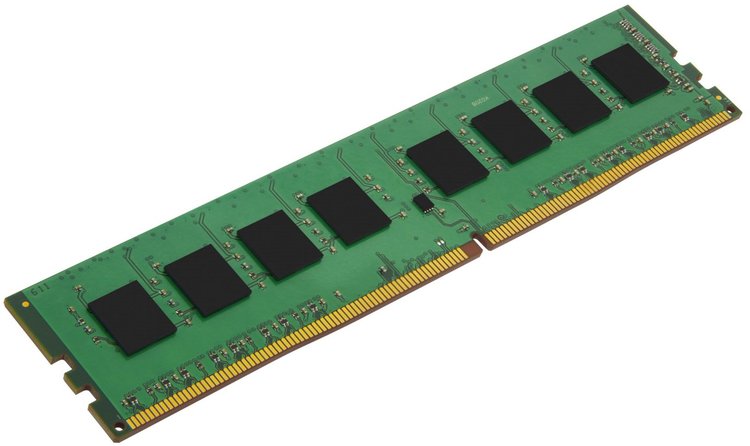

Kingston KVR21N15S8/8 8GB Ram
Power Supply: VDD=1.2V Typical • VDDQ = 1.2V Typical • VPP - 2.5V Typical • VDDSPD=2.2V to 3.6V • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals • Low-power auto self refresh (LPASR) • Data bus inversion (DBI) for data bus • On-die VREFDQ generation and calibration • Single-rank • On-board I2 serial presence-detect (SPD) EEPROM • 16 internal banks; 4 groups of 4 banks each • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS) • Selectable BC4 or BL8 on-the-fly (OTF) • Fly-by topology • Terminated control command and address bus • PCB: Height 1.23” (31.25mm) • RoHS Compliant and Halogen-Free
Memory Speed: 2133Mhz
Memory Size: 8GB Memory
Memory Type: DDR4
Manufacturer: Kingston
| Features | |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 15 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 1 x 8 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 2133 MHz |
| Component for What this product is used as a part of (component for). | PC/server |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 288-pin DIMM |
| Buffered memory type | Unregistered (unbuffered) |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Memory ranking | 1 |
| Memory voltage The voltage (V) of the memory in the device. | 1.2 V |
| Module configuration | 1024M x 64 |
| Row cycle time | 46.5 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 33 ns |
| Halogen-free |
 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | PC-17000 |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Lead plating | Gold |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 31.2 mm |
| Packaging data | |
| Package type The type of product package e.g. box. | DIMM |
| Other features | |
| Number of pins | 288 |
| SKU | 217070 |
| MPN | KVR21N15S8/8 |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
