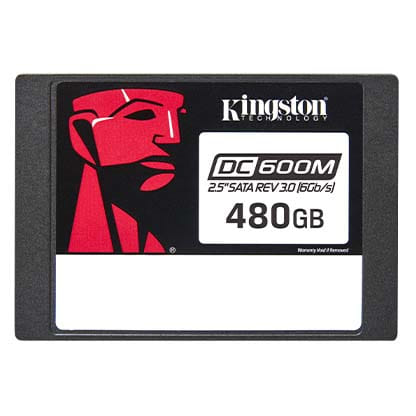

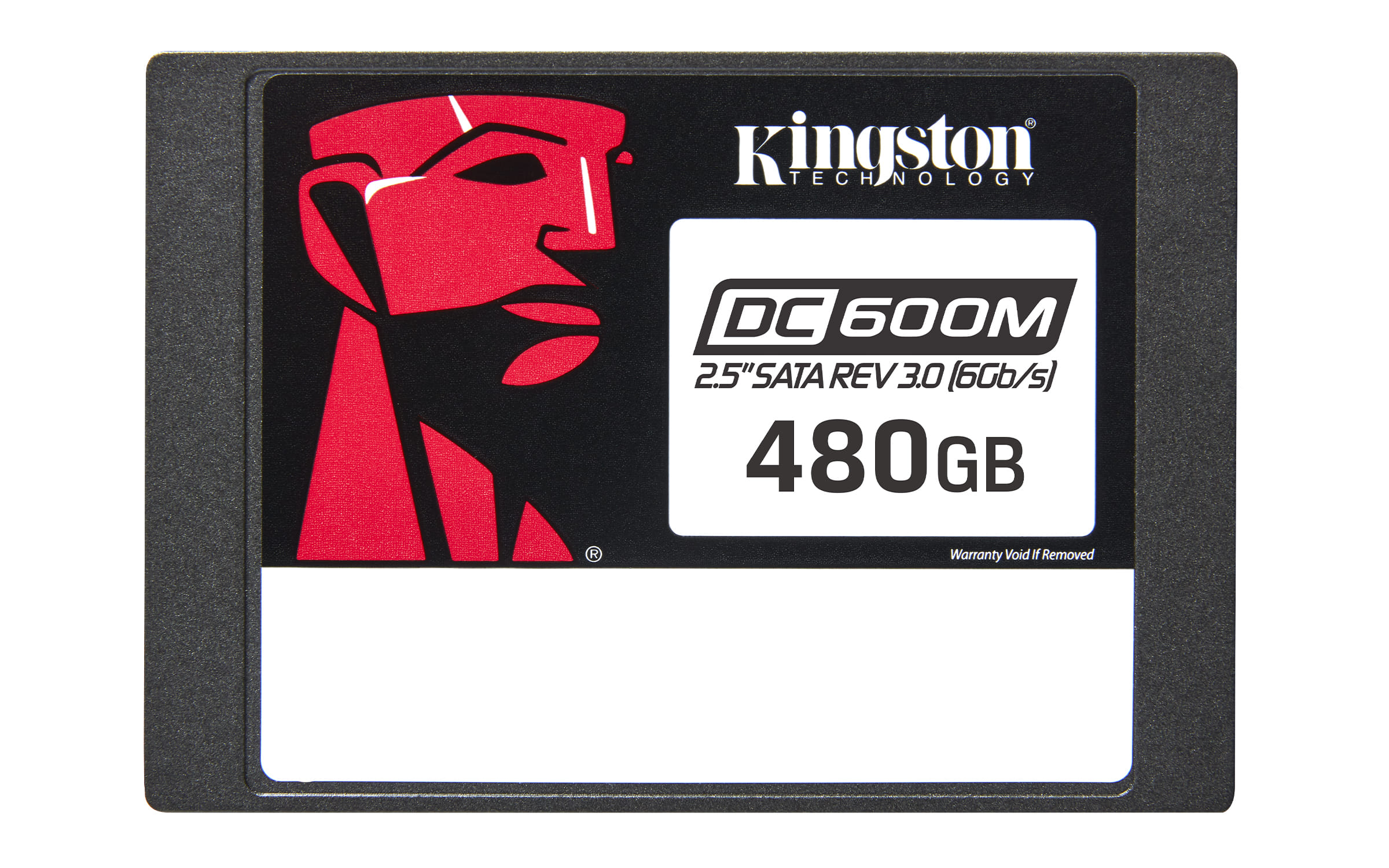

Kingston Technology DC600M, 480 GB, 2.5", 560 MB/s, 6 Gbit/s
DC600M 2.5 SATA Enterprise SSD 6Gbps SATA 3.0 storage for mixed use workloads
Kingston s DC600M SSD is a fourth generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for mixed use workloads. The DC600M is suited for use in high volume rack mount servers and includes hardware based on board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re initialise on the next power up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.
Hardware based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)
Optimised performance predictability to meet service level agreements (SLAs).
AES 256 bit self encrypting drive
Built in protection to safeguard important data.
Capacities up to 7680GB
Upgrade and manage storage with capacities up to 7680GB.
Kingston s DC600M SSD is a fourth generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for mixed use workloads. The DC600M is suited for use in high volume rack mount servers and includes hardware based on board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re initialise on the next power up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.
Hardware based PLP
Power loss capacitors to protect user data against unexpected power loss and enhance performance.
Delivers excellent quality of service (QoS)
Optimised performance predictability to meet service level agreements (SLAs).
AES 256 bit self encrypting drive
Built in protection to safeguard important data.
Capacities up to 7680GB
Upgrade and manage storage with capacities up to 7680GB.
| Features | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD form factor The size of the solid-state drive, given in inches | 2.5" |
| SSD capacity The Solid State Drive's data storage capacity. | 480 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Serial ATA III |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC NAND |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Hardware encryption |
 |
| Target workload | Mixed Use (MU) |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| Read speed The speed at which a device can read data. | 560 MB/s |
| Write speed The speed at which a device can write data. | 470 MB/s |
| Random read (4KB) | 94000 IOPS |
| Random write (4KB) | 41000 IOPS |
| Read latency | 200 µs |
| Write latency | 30 µs |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| H/W PLP function |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| TBW rating | 876 |
| Use conditions | Server/Enterprise |
| Power | |
| Power consumption (read) | 1.6 W |
| Power consumption (write) | 3.6 W |
| Power consumption (max) The maximum amount of power used by the device. | 1.45 W |
| Power consumption (idle) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 20 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 69.9 mm |
| Depth The distance from the front to the back of something. | 7 mm |
| Height The measurement of the product from head to foot or from base to top. | 100 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 92.34 g |
| SKU | 727700 |
| MPN | SEDC600M/480G |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 2.5" |
| Connection Interface | SATA |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.kingston.com/ |
