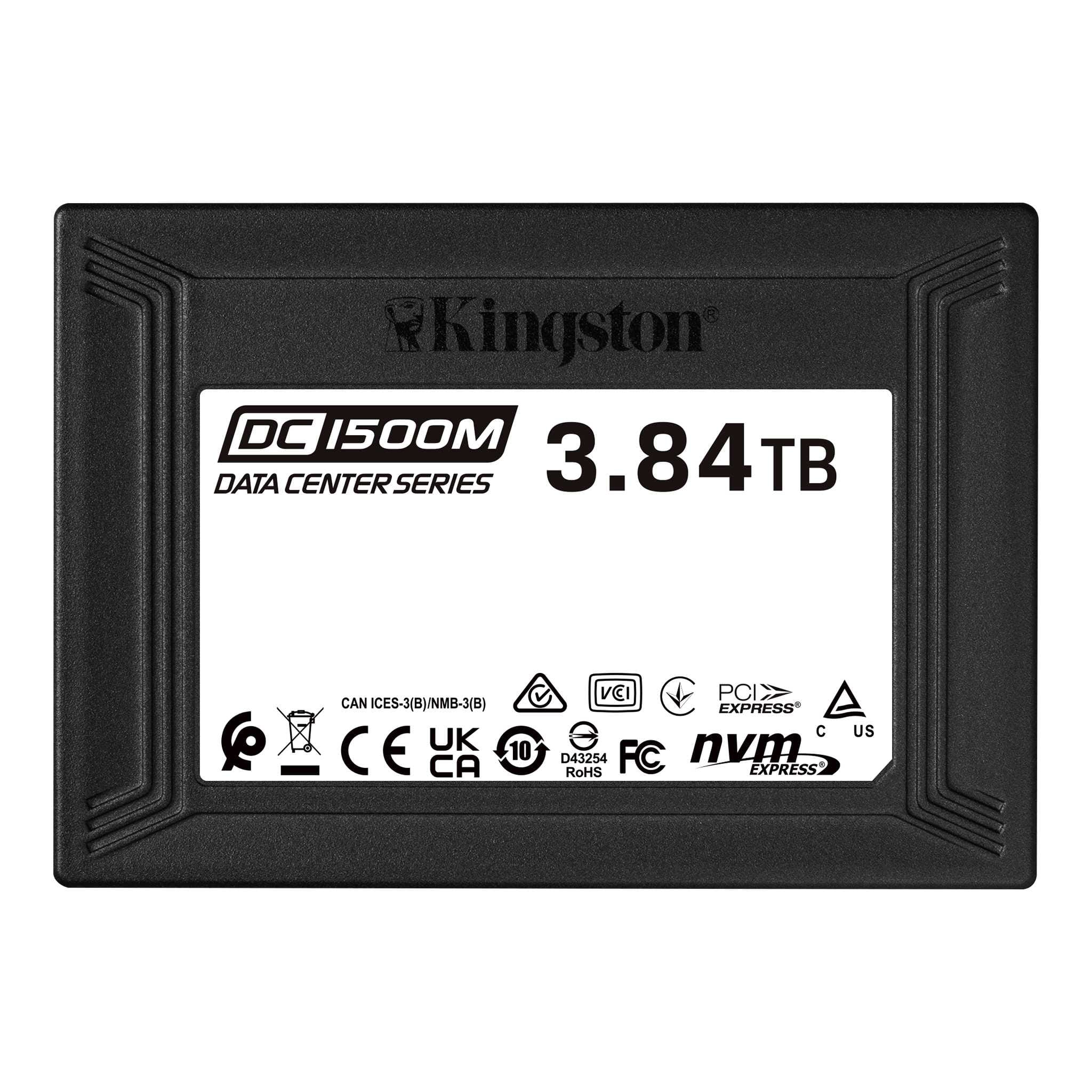

Kingston Technology DC1500M U.2 Enterprise SSD, 3840 GB, U.2, 3100 MB/s
Kingston DC1500M U.2 NVMe SSD features high-storage capacity and enhanced enterprise performance. It offers a high-performance Gen 3.0 x4 PCIe NVMe design to deliver latency and IOPS consistency. DC1500M is backed by strict QoS requirements to ensure predictable random IO performance as well as predictable latencies over a wide range of workloads.
The U.2 form factor design (2.5 , 15mm) works seamlessly with the latest-generation servers and storage arrays utilising PCIe and U.2 backplanes. DC1500M is hot pluggable, eliminating the challenges of serviceable PCIe storage.
It boasts enterprise-class features such as end-to-end data path protection, namespace management, power loss protection (PLP) and telemetry monitoring for increased data center reliability. Backed by Kingston's legendary pre- and post-sales support and a five-year limited warranty1. Capacities range from 960GB to 7.6TB2.
Applications
The "mixed-use" workload drive makes it ideal for running a wide range of customer applications including:
- Virtualisation
- High-performance cloud service
- Web hosting caching
- High-resolution media capture and transport
- ERP, CRM, GL, OLAP, OLTP, ERM, BI and EDW workloads
Data Center NVMe performance
Incredible I/O consistency with sustained speeds of up to 3GB/s and 510K IOPS.
Enterprise-class mixed-use storage
An exceptional balance of consistent I/O delivery with high read and write IOPS performance to manage a wide range of transactional workloads.
Reduce application latencies
Quality of Service (QoS) delivers ultra-low transactional latency for large data sets and various web-based applications.
On-board Power Loss Protection (PLP)
Enterprise-class protection to reduce the possibility of data loss or corruption on ungraceful power fails.
The U.2 form factor design (2.5 , 15mm) works seamlessly with the latest-generation servers and storage arrays utilising PCIe and U.2 backplanes. DC1500M is hot pluggable, eliminating the challenges of serviceable PCIe storage.
It boasts enterprise-class features such as end-to-end data path protection, namespace management, power loss protection (PLP) and telemetry monitoring for increased data center reliability. Backed by Kingston's legendary pre- and post-sales support and a five-year limited warranty1. Capacities range from 960GB to 7.6TB2.
Applications
The "mixed-use" workload drive makes it ideal for running a wide range of customer applications including:
- Virtualisation
- High-performance cloud service
- Web hosting caching
- High-resolution media capture and transport
- ERP, CRM, GL, OLAP, OLTP, ERM, BI and EDW workloads
Data Center NVMe performance
Incredible I/O consistency with sustained speeds of up to 3GB/s and 510K IOPS.
Enterprise-class mixed-use storage
An exceptional balance of consistent I/O delivery with high read and write IOPS performance to manage a wide range of transactional workloads.
Reduce application latencies
Quality of Service (QoS) delivers ultra-low transactional latency for large data sets and various web-based applications.
On-board Power Loss Protection (PLP)
Enterprise-class protection to reduce the possibility of data loss or corruption on ungraceful power fails.
| Features | |
| SSD form factor The size of the solid-state drive, given in inches | U.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 3840 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D TLC |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC/notebook |
| Read speed The speed at which a device can read data. | 3100 MB/s |
| Write speed The speed at which a device can write data. | 2700 MB/s |
| Random read (4KB) | 480000 IOPS |
| Random write (4KB) | 210000 IOPS |
| Read latency | 110 µs |
| Write latency | 206 µs |
| PCI Express interface data lanes | x4 |
| Power loss protection |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| Endurance rating (for 5 years) | 1 GB/day |
| Harmonized System (HS) code | 84717070 |
| Power | |
| Power consumption (read) | 7 W |
| Power consumption (write) | 16 W |
| Average power consumption (read) | 6.4 W |
| Average power consumption (write) | 14.2 W |
| Power consumption (idle) | 6.8 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 20 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100.1 mm |
| Depth The distance from the front to the back of something. | 14.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 69.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 155 g |
| SKU | 694646 |
| MPN | SEDC1500M/3840G |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Drive Form Factor | U.2 |
| Connection Interface | PCIe Gen 3 NVMe M.2 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.kingston.com/ |
