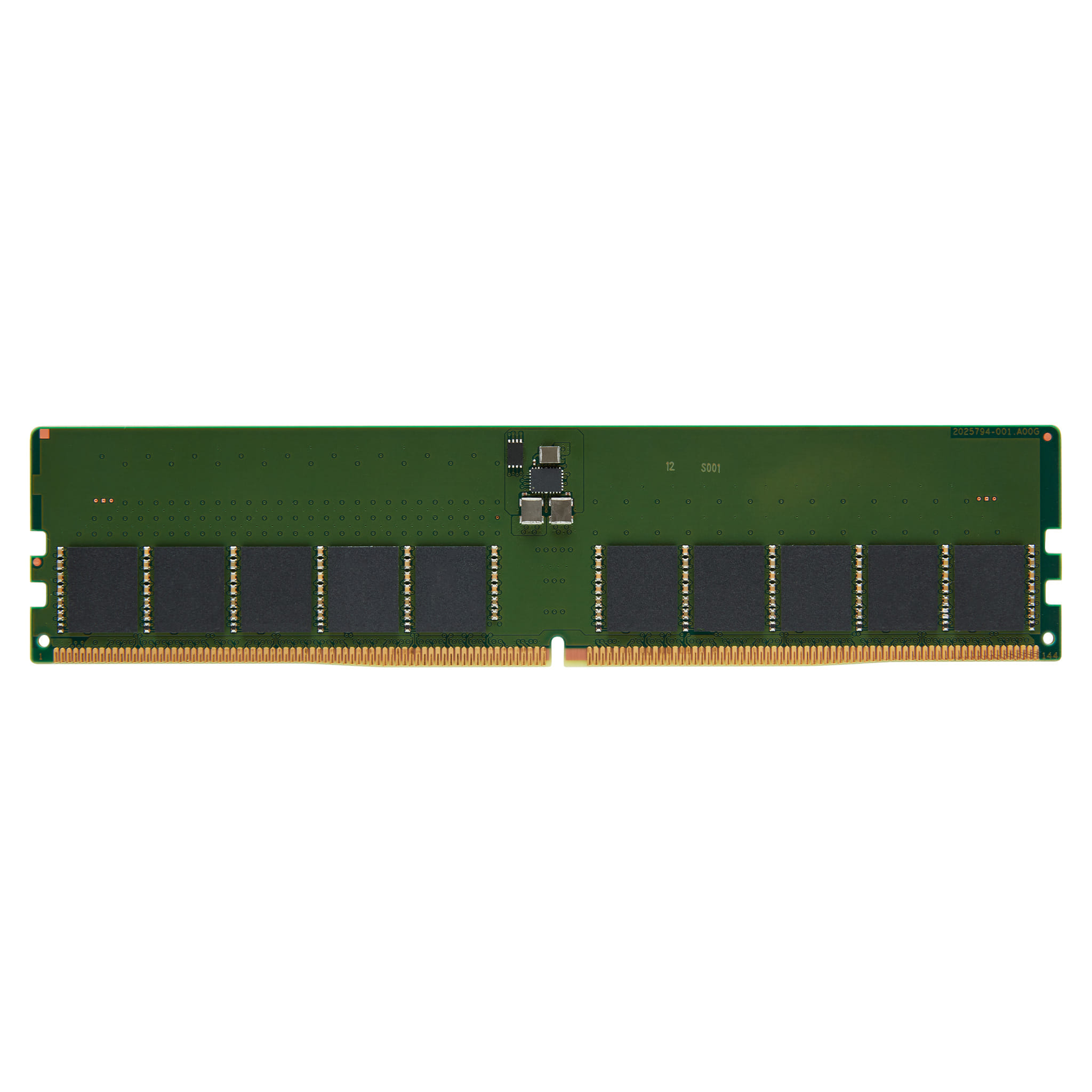

Kingston Technology KSM56E46BD8KM-32HA, 32 GB, 1 x 32 GB, DDR5, 5600 MHz, 288-pin DIMM, Black, Green
Kingston's KSM56E46BD8KM-32HA is a 4G x 72-bit (32GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC |
 |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 46 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 1 x 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 5600 MHz |
| Component for What this product is used as a part of (component for). | Server |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 288-pin DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Memory ranking | 2 |
| Memory voltage The voltage (V) of the memory in the device. | 1.1 V |
| Module configuration | 4096M x 72 |
| Row cycle time | 48 ns |
| Refresh row cycle time | 295 ns |
| Row active time | 32 ns |
| Row Precharge Time (TRP) | 16 |
| SPD profile |
|
| Programming power voltage (VPP) | 1.8 V |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Green |
| Lead plating | Gold |
| JEDEC standard |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 95 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 133.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 31.2 mm |
| SKU | 774749 |
| MPN | KSM56E46BD8KM-32HA |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.kingston.com/ |
