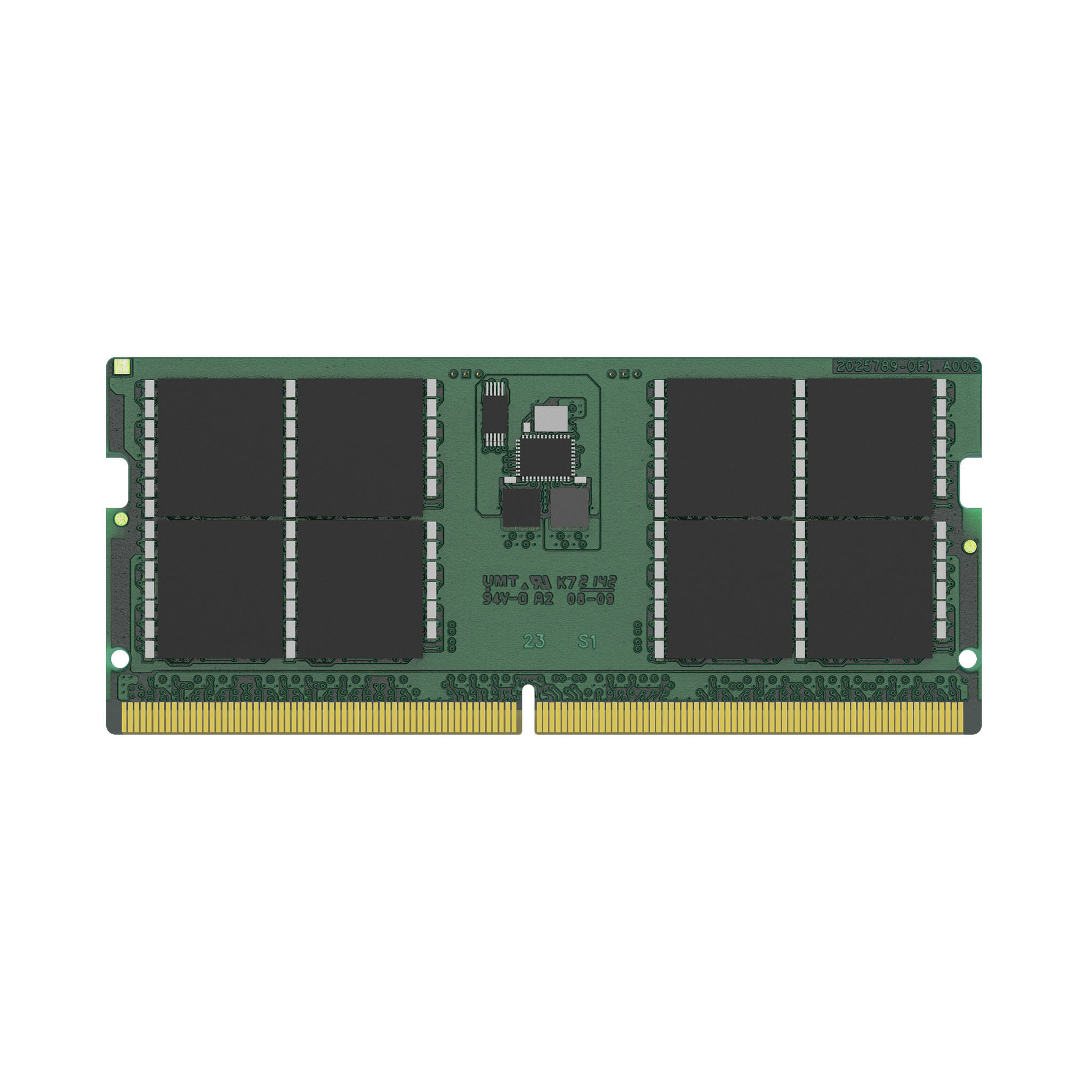

Kingston Technology ValueRAM KVR52S42BD8 32, 32 GB, 1 x 32 GB, DDR5, 5200 MHz, 262 pin SO DIMM
This document describes ValueRAM's KVR52S42BD8 32 is a 4G x 64 bit (32GB) DDR5 5200 CL42 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8 bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5 5200 timing of 42 42 42 at 1.1V. Each 262 pin SODIMM uses gold contact fingers.
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC |
 |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 42 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Memory layout (modules x size) How the overall memory of the product is put together, defined by the number of modules and the size. | 1 x 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR5 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 5200 MHz |
| Component for What this product is used as a part of (component for). | Laptop |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 262-pin SO-DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Memory ranking | 2 |
| Memory voltage The voltage (V) of the memory in the device. | 1.1 V |
| Module configuration | 4096M x 64 |
| SPD profile |
|
| Lead plating | Gold |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| Sustainability | |
| Sustainability certificates | RoHS |
| Doesn't contain | Halogen |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 69.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| SKU | 749648 |
| MPN | KVR52S42BD8-32 |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Memory Type | DDR5 |
| Memory Form Factor | SODIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.kingston.com/ |
