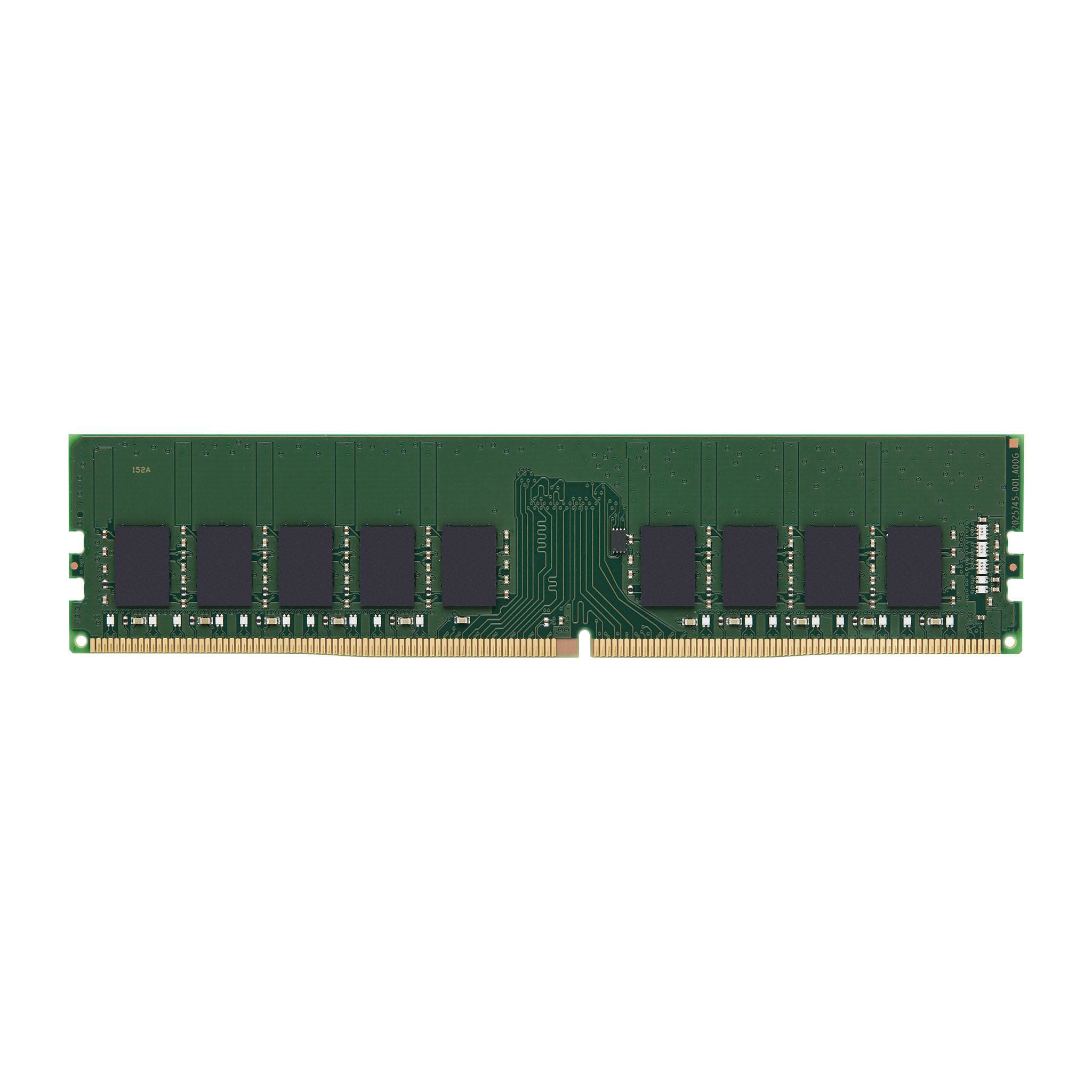

Kingston Technology KSM26ED8/32HC, 32GB, DDR4, 2666 MHz, 288-pin DIMM
Kingston's KSM26ED8/32HC is a 4G x 72-bit (32GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
| Buffered memory type | Unregistered (unbuffered) |
| On-Die ECC |
 |
| CAS latency Column Address Strobe (CAS) latency, or CL, is the delay time between the moment a memory controller tells the memory module to access a particular memory column on a RAM module, and the moment the data from the given array location is available on the module's output pins. In general, the lower the CAS latency, the better. | 19 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 32 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4 |
| Memory clock speed The frequency at which the memory (e.g. RAM) runs. | 2666 MHz |
| Component for What this product is used as a part of (component for). | PC/Server |
| Memory form factor Design of the memory e.g. 240-pin DIMM, SO-DIMM. | 288-pin DIMM |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Memory ranking | 2 |
| Memory voltage The voltage (V) of the memory in the device. | 1.2 V |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| SPD profile |
|
| Programming power voltage (VPP) | 2.5 V |
| Backlight Product has a built-in light source for its illuminating. |
 |
| JEDEC standard |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -55 - 100 °C |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 31.2 mm |
| Other features | |
| Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. | PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 |
| SKU | 595378 |
| MPN | KSM26ED8/32HC |
| Brand | Kingston |
| Product Condition | Brand New/Unused |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kingston.com/ |
