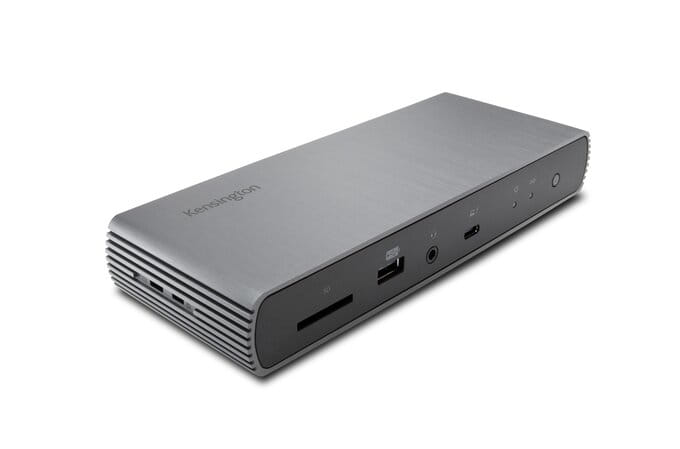

Kensington SD5700T, Wired, Thunderbolt 4, 90 W, 10,100,1000 Mbit/s, Grey, SD
The first of a generation, the SD5700T Thunderbolt 4 Dual 4K Docking Station with 90W PD - Win/Mac offers premium Thunderbolt benefits now, and well into the future; compatible with Thunderbolt 4-enabled Windows 10 laptops and backward compatibility with Thunderbolt 3 MacBooks running macOS 11 (Big Sur) or later, supports Thunderbolt 3, Thunderbolt 4, USB-C and USB4 accessories and provides full power delivery, regardless of how many devices are connected. Features include 11-ports, Single 8K @ 30 Hz, or up to Dual 4K @ 60Hz video, 40Gbps data transfer speeds, UHS-II SD 4.0 card reader speeds, and more.
Compatibility
Universally compatible, this Thunderbolt 4 desktop docking station is the first of its kind, providing the ultimate plug-and-play solution for Thunderbolt 4 Window 10 laptops and Thunderbolt 3 MacBooks running macOS 11 (Big Sur) or later, while also supporting Thunderbolt 3, Thunderbolt 4, USB-C and USB4 accessories. For Thunderbolt 3 based Windows 10 laptops, please see our range of Thunderbolt 3 docks.
Thunderbolt 4 Technology
For the first time, this Thunderbolt 4 modern docking station can connect up to three additional Thunderbolt devices directly (up to five in total) while providing transfer speeds up to 40Gbps, up to Dual 4K video output, and audio; all through the included 0.8m Thunderbolt 4 cable, for a quick and powerful plug-and-play experience. Intel VT-d DMA protection blocks peripheral devices from unauthorized access to system memory.
Single 8K or Dual 4K Video Output for Thunderbolt 4-Enabled Devices
Single 8K or Dual 4K (@ 60 Hz) video output for Thunderbolt 4-enabled host devices lets you extend visual productivity with the crisp resolution, contrast, and color depth of Ultra HD (Single 8K 30Hz or Dual 4K 60Hz) via the available Thunderbolt 4 ports.
90W Power Delivery
90W power delivery allows you to quickly and easily charge any Thunderbolt 4 Windows 10 laptop or Thunderbolt 3-enabled MacBook running macOS 11 (Big Sur) or later, in addition to providing full support for your USB-C or USB4peripheral accessories. No need to worry about what you have connected to the dock " our solution provides the only full powered offering on the market, so you can connect anything, and be sure to receive optimal performance.
Helps Future-Proof Your Desktop Setup
With 11-Ports of connectivity, you ll have the power to get the job done today and well into the future. This dock offers four Thunderbolt 4 ports, all capable of data, video and audio; four USB-A ports (one 5V/1.5A charging port on the front and three Gen2@10Gbps ports on the rear); one Gigabit Ethernet port; one audio combo jack; and one UHS-II SD 4.0 card reader.
UHS II SD 4.0 Card Reader
Transfer files at ultra fast speeds using the built-in UHS II SD 4.0 card reader.
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space and reduce cable clutter by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Lock slots allow you to protect your investment with a Kensington cable lock, sold separately (K65020WW or K64444WW).
Free Kensington DockWorks Software and Three-Year Warranty
DockWorks WiFi Auto-Switch guarantees the fastest, most reliable internet connection; while MAC Address ID Pass-Through and Reset, and Device Connection Monitoring give IT managers maximum network monitoring and visibility. A three-year warranty lets you rest assured knowing you re covered by Kensington.
Compatibility
Universally compatible, this Thunderbolt 4 desktop docking station is the first of its kind, providing the ultimate plug-and-play solution for Thunderbolt 4 Window 10 laptops and Thunderbolt 3 MacBooks running macOS 11 (Big Sur) or later, while also supporting Thunderbolt 3, Thunderbolt 4, USB-C and USB4 accessories. For Thunderbolt 3 based Windows 10 laptops, please see our range of Thunderbolt 3 docks.
Thunderbolt 4 Technology
For the first time, this Thunderbolt 4 modern docking station can connect up to three additional Thunderbolt devices directly (up to five in total) while providing transfer speeds up to 40Gbps, up to Dual 4K video output, and audio; all through the included 0.8m Thunderbolt 4 cable, for a quick and powerful plug-and-play experience. Intel VT-d DMA protection blocks peripheral devices from unauthorized access to system memory.
Single 8K or Dual 4K Video Output for Thunderbolt 4-Enabled Devices
Single 8K or Dual 4K (@ 60 Hz) video output for Thunderbolt 4-enabled host devices lets you extend visual productivity with the crisp resolution, contrast, and color depth of Ultra HD (Single 8K 30Hz or Dual 4K 60Hz) via the available Thunderbolt 4 ports.
90W Power Delivery
90W power delivery allows you to quickly and easily charge any Thunderbolt 4 Windows 10 laptop or Thunderbolt 3-enabled MacBook running macOS 11 (Big Sur) or later, in addition to providing full support for your USB-C or USB4peripheral accessories. No need to worry about what you have connected to the dock " our solution provides the only full powered offering on the market, so you can connect anything, and be sure to receive optimal performance.
Helps Future-Proof Your Desktop Setup
With 11-Ports of connectivity, you ll have the power to get the job done today and well into the future. This dock offers four Thunderbolt 4 ports, all capable of data, video and audio; four USB-A ports (one 5V/1.5A charging port on the front and three Gen2@10Gbps ports on the rear); one Gigabit Ethernet port; one audio combo jack; and one UHS-II SD 4.0 card reader.
UHS II SD 4.0 Card Reader
Transfer files at ultra fast speeds using the built-in UHS II SD 4.0 card reader.
Zero-Footprint Mounting Option and Security Cable Lock Slots
Maximize desktop space and reduce cable clutter by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Lock slots allow you to protect your investment with a Kensington cable lock, sold separately (K65020WW or K64444WW).
Free Kensington DockWorks Software and Three-Year Warranty
DockWorks WiFi Auto-Switch guarantees the fastest, most reliable internet connection; while MAC Address ID Pass-Through and Reset, and Device Connection Monitoring give IT managers maximum network monitoring and visibility. A three-year warranty lets you rest assured knowing you re covered by Kensington.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | Thunderbolt 4 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB Power Delivery |
 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 90 W |
| Thunderbolt 4 ports quantity | 4 |
| Microphone in The socket where a microphone is connected to the device. |
 |
| Combo headphone/mic port |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SD |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 400 Gbit/s |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 8K Ultra HD |
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| On/off switch The button which is pressed to switch the device on or off. |
|
| LED indicators |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Brand compatibility What other brands this brand can be used with. | Universal |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC |
| AC adapter included |
|
| User guide |
|
| SKU | 539882 |
| MPN | K35175AP |
| Brand | Kensington |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kensington.com/ |
