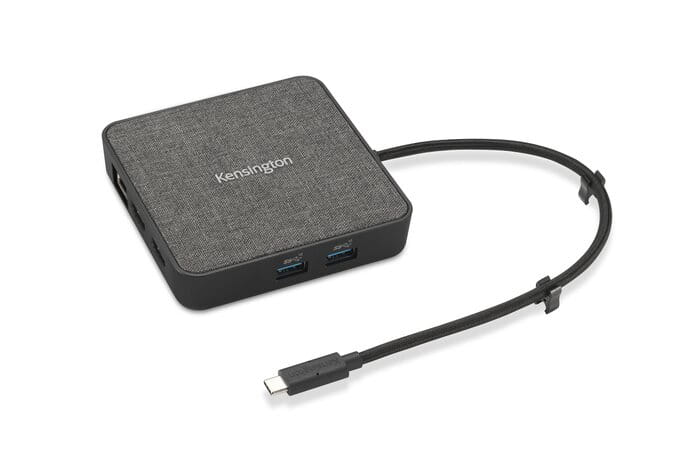

Kensington MD120U4 USB4 Portable Docking Station, Wired, USB4, 100 W, 1000,2500,10,100 Mbit/s, Black, 8K Ultra HD
Pioneering innovation with one of the first mobile USB4 docking stations, Kensington proudly presents the MD120U4 USB4 Portable Docking Station. MD120U4 delivers all the power of USB4, including dual 4K* support, up to 40Gbps upstream speed and 100W power pass-through - in a solution designed to support numerous devices and operating systems. An ideal choice for hybrid workers who wish to travel with less weight and clutter, power pass-through eliminates the need to travel with an additional power brick. A variety of productivity ports minimise the need for additional adapters. Includes 2 x HDMI ports, 1 x USB-C port, 2 x USB-A ports and 1 x 2.5Gbps Ethernet port for productivity anywhere.
Best For: USB-C or USB4 laptops that support Power Delivery and monitors that support up to Dual 4K
Leading the way with USB4 connection technology, this dock supports USB4, Thunderbolt 3, Thunderbolt 4 and USB-C 3.2 devices running Windows 10 or above.
2 x HDMI 2.1 ports deliver up to 8K @ 60Hz for single monitor and up to 4K @ 120Hz for dual monitors* so you can extend your visual productivity with the resolution, contrast and colour depth of Ultra HD.*Dual 4K not applicable to all devices. Single monitor only for MacBook up to 4K @ 60Hz, and up to 2K @ 60Hz for iPads and Samsung DeX enabled devices (resolution may vary based on device).
Plug your laptop
Best For: USB-C or USB4 laptops that support Power Delivery and monitors that support up to Dual 4K
Leading the way with USB4 connection technology, this dock supports USB4, Thunderbolt 3, Thunderbolt 4 and USB-C 3.2 devices running Windows 10 or above.
2 x HDMI 2.1 ports deliver up to 8K @ 60Hz for single monitor and up to 4K @ 120Hz for dual monitors* so you can extend your visual productivity with the resolution, contrast and colour depth of Ultra HD.*Dual 4K not applicable to all devices. Single monitor only for MacBook up to 4K @ 60Hz, and up to 2K @ 60Hz for iPads and Samsung DeX enabled devices (resolution may vary based on device).
Plug your laptop
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.1 |
| Microphone in The socket where a microphone is connected to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,2500,10,100 Mbit/s |
| Performance | |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 8K Ultra HD |
| Number of displays supported The number of displays that can be used with this product. | 2 |
| Maximum refresh rate | 144 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Housing material What the casing of the product is made of. | Acrylonitrile butadiene styrene (ABS), Metal |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Certification | FCC, IC, CB, RoHS, ACCO RSL |
| Power | |
| Power source type What the power source is. | USB |
| Output voltage | 5 - 20 V |
| Output current | 5 A |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 0 - 60 °C |
| Operating relative humidity (H-H) | 0 - 55% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 101 mm |
| Depth The distance from the front to the back of something. | 101 mm |
| Height The measurement of the product from head to foot or from base to top. | 22.9 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 190 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 123 mm |
| Package depth The distance from the front to the back of the packaging. | 201 mm |
| Package height The distance from the top to the bottom of the packaging. | 41 mm |
| Package weight Weight of the packaged product. | 43 g |
| Packaging content | |
| Warranty card |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Other features | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | macOS 11 or above; Samsung DeX®; iPadOS 13 or above; Windows 10 or above |
| USB ports quantity | 3 |
| SKU | 779294 |
| MPN | K32850WW |
| Brand | Kensington |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.kensington.com/ |
