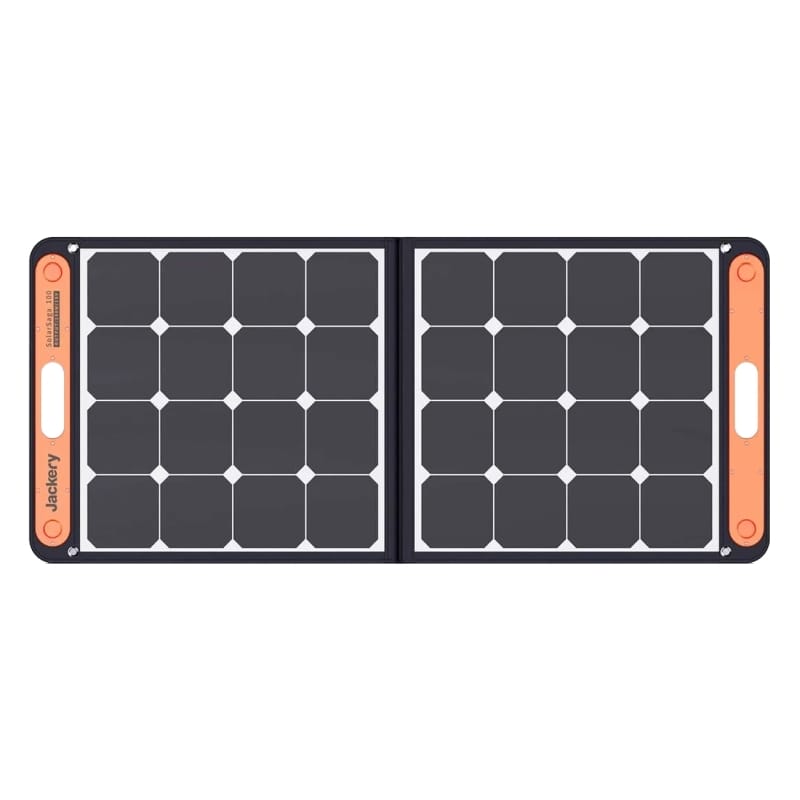

Jackery SolarSaga 100W Solar Panel
Specifications:
- Peak Power: 100W
- Cell Efficiency: 23%
- Connections: USB A x 1 USB C x 1 DC Output x 1
- Power Voltage: 20V
- Power Current: 5A
- Open Circuit Voltage: 24.8V
- Short Circuit Voltage: 5.6A
- Dimensions: 610 x 535 x 35mm (Folded) 1220 x 535 x 5mm (Unfolded)
- Weight: 4.69kg
- Warranty: 2 Years
- Recommended No. of Panels: Jackery 240: 1 Jackery 500: 2 Jackery 1000 Pro: 2 Jackery 2000 Pro: 4
Features:
- High Conversion Efficiency (up to 23%)
- USB A, USB C and DC Outputs
- Monocrystalline silicon solar cells
- ETFE laminated solar cells offer weather resistant outdoor durability
- Shockproof & dustproof
- Storage bag included
- Foldable design for easy transport
- Compact and lightweight
- Rubber handle makes it easy to carry
- Adjustable kickstands
- ECO Friendly
- Easy to Setup
What s in the box?
- 1 x Jackery SolarSaga 100W Solar Panel
- 1 x Storage Bag
- 1 x User Manual
| Power | |
| Rated power The maximum active power under the rated operation conditions. | 100 W |
| Solar panel voltage | 20 V |
| USB output voltage | 5 V |
| USB output current | 3 A |
| Voltage at open-circuit (Voc) | 24.8 V |
| Short-circuit current (Isc) | 5.6 A |
| Features | |
| Solar cell type | Monocrystalline silicon |
| Installation type The way in which the product is being installed. | Ground |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Orange |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-C |
| USB ports quantity | 2 |
| Cell efficiency | 23% |
| Packaging content | |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 65 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.69 kg |
| Folded width | 61 cm |
| Folded depth | 3.5 cm |
| Folded height | 53.5 cm |
| Unfolded width | 122 cm |
| Unfolded depth | 5 mm |
| Unfolded height | 53.5 cm |
| SKU | 728321 |
| MPN | SOLARSAGA100 |
| Brand | Jackery |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | N/A |
