Gigabit Ethernet port. 3 x USB3.0 TYPE-A port. Activity and Link LED indicators. Can be used with Bus-powered or Self-powered. Compatible with Windows / Mac / Linux / Chrome OS.

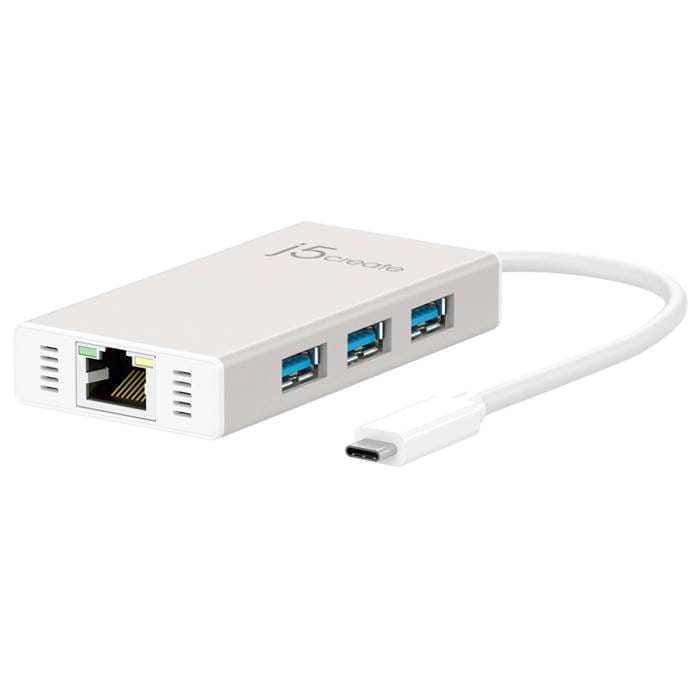

j5create Type-C to GigaLAN & USB3.0 Adapter
j5create’s USB Type-C Gigabit Ethernet & HUB Multi Adapter JCH471 provides extra connectivity for your computer with 5 Gbps faster transfer speed. These pocket-sized multi-adapters allow you to add additional USB computer accessories and Gigabit LAN through your USB Type-C port.
j5create's Gigabit combo adapter allows you to add networking capabilities to a computer without them through a Wi-Fi connection. It has an RJ-45 connector that supports 10/100/1000 Mbps Ethernet performance, it is perfect for MacBook Air, Chromebook, and other laptop and desktop computers with a USB-C port.
Fast and portable, this unique adapter gives you Ethernet and USB connections in one.
Features
* Quickly add a Gigabit Ethernet and 3-Port HUB over a USB Type-C connection.
* Easily expand USB 3.0 Accessories, 5 Gbps transfer rate.
* Aluminium housing
* Compatible with Windows / Mac / Linux / Chrome OS
Specifications:
Interface
- Host Interface: USB Type-C connector
- Ethernet Port: RJ-45 Female connector (Gigabit Ethernet)
- USB Port: USB 3.0 Female connector x 3 ports
- LED: Activity and Link LED indicators
- Power Jack: DC 5V (3.5 mm OD, 1.35mm ID)
Power
- Power Mode:
- ?Bus-powered or Self-powered
- If you are using a high-power USB device please attach the power adapter that came with it or purchase a JCH471 power cord to ensure maximum performance.
Functions
- Ethernet:
- Transfer Rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
- IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
- Modes:
- Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
- Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
- Supports Jumbo Frame
- Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Physical Specifications
- Dimensions:
- Main body: 43.75(W)x 90.6(H)x18.6(D) mm
- Cable length: 14.5 cm
- Weight: Approximately 58.5 g (including cable)
Environments
- Windows 10 / 8.1 / 8 / 7 / Vista / XP
- Mac OS X v10.6~10.11
- Linux kernel 3.x / 2.6.x
- Available USB Type-C port
- Driver not required for Windows 10 / 8.1 / Chrome OS 3.8
- Driver will automatically install on Windows 8 / 7 (Requires Internet access)
Package Contents
- USB Type-C Gigabit Ethernet & HUB Multi Adapter (JCH471)
- Quick Installation Guide
- Driver CD
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | USB Type-C |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| USB ports quantity | 3 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 5000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000BaseT(X) |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Jumbo frames support |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv4, IPv6, TCP, UDP, TCP |
| VLAN tagging |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminum, White |
| Internal The product is built in. |
 |
| LED indicators | Activity,Link |
| Power | |
| Output voltage | 5 V |
| Packaging content | |
| Quick installation guide |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8.1,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Other operating systems supported | Chrome |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 43.8 mm |
| Depth The distance from the front to the back of something. | 18.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 90.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 58.5 g |
| Packaging data | |
| Drivers included |
|
| Other features | |
| Housing material What the casing of the product is made of. | Aluminum |
| SKU | 236222 |
| MPN | JCH471 |
| Brand | J5 Create |
