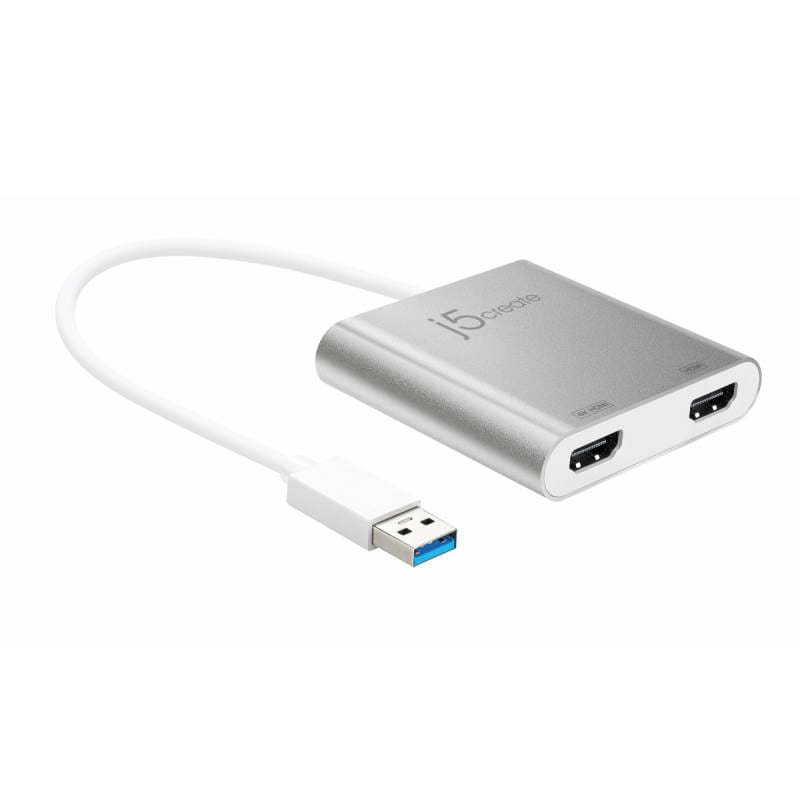

j5create USB 3.0 to Dual HDMI Multi-Monitor Adapter
The j5create USB 3.0 to Dual HDMI Multi-Monitor Adapter JUA365 acts as an external video card for your MAC or PC. It allows you to add an additional monitor/display through your USB 3.0 port. No need to open up the computer to add an expensive video card, with the USB 3.0 to Dual HDMI Multi-Monitor Adapter you simply load the drivers, plug in the adapter to the USB port, then plug in the HDMI monitor cable into the adapter and you are ready. The USB 3.0 to Dual HDMI Multi-Monitor Adapter supports three viewing modes. Primary mode, allows you to have individual applications open on each monitor, vastly improving productivity. Extended mode allows you to extend your desktop across multiple displays, great for spreadsheets. Mirroring mode is used to clone one screen onto another, ideal for presentations. With "Plug & Play" functionality between your computer and 2nd monitor or projector, you will be able to create a new visual environment in seconds.
In addition, j5create has developed this compact design for the sophisticated user who cares about function as well as elegance.
Specifications:
Specifications
Interface
- Host Interface: USB 3.0 Male Type-A Connector
- Video Interface
- 2 x HDMI Female Connector
- *HDMI Audio output simultaneously
- Max Resolution
- 3840 x 2160 @ 30Hz
- 2048 x 1152 @60Hz
Power
- Power Mode: Bus-powered
- Power Consumption: 400mA
Physical Specifications
- Housing Material: Aluminium
- Dimensions
- Main body: 68(W) x 66(H) x 15(D) mm
- Cable length: 200 mm
- Weight: Approximately 84.5g
System Requirements
- Microsoft Windows 10/ 8.1/ 8/ 7 (32-bit or 64-bit) Compatible
- Mac OS X 10.8~10.12 Compatible
- Available USB 3.1/3.0/2.0 port (USB 3.1/3.0 recommended)
- Office applications / Web
- CPU: Intel Core i3 Dual Core 2.8GHz
- RAM: 2GB memory or higher
- One 2K (2048*1152@60Hz) Full-screen video playback
- CPU: Intel Core i5 Quad Core
- RAM: 4GB memory or higher
- One 4K Ultra HD or two 2K (2048*1152@60Hz) Full-screen video playback
- CPU: Intel Core i7 Quad Core
- RAM: 8GB memory or higher
- Graphics card: Intel HD Graphics 4000/ ATI HD 7 series/ NVIDIA 5XXM or higher
Note for Video Player:
* Windows 8.1 / 8 / 7 user: "Windows Media Player" is recommended for video playback
* Windows 10 user: "Movies & TV" is recommended for video playback
note:
To ensure that your device is equipped with the most current driver, please visit our website at www.j5create.com and install the latest driver for this model.
| Performance | |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output |
 |
| HDMI output The device features an HDMI output. |
 |
| DisplayPort output The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. |
|
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| USB connector gender | Male |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Supported video modes The video modes that can be displayed by the device. | 2160p |
| Mirror display mode |
|
| Extended display mode |
|
| Current | 0.4 A |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Aluminum |
| Housing material What the casing of the product is made of. | Aluminum |
| Integrated USB cable |
|
| USB cable length | 0.2 m |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 7 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Minimum processor speed | 2.8 GHz |
| Minimum RAM The smallest amount of RAM (random access memory) required to perform a particular function. | 2048 GB |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68 mm |
| Depth The distance from the front to the back of something. | 15 mm |
| Height The measurement of the product from head to foot or from base to top. | 66 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 84.5 g |
| Packaging content | |
| Quick installation guide |
|
| SKU | 236355 |
| MPN | JUA365 |
| Brand | J5 Create |
| Product Condition | Brand New/Unused |
| Adapter Type | Monitor Adapter, USB Adapter, HDMI Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://en.j5create.com/ |
