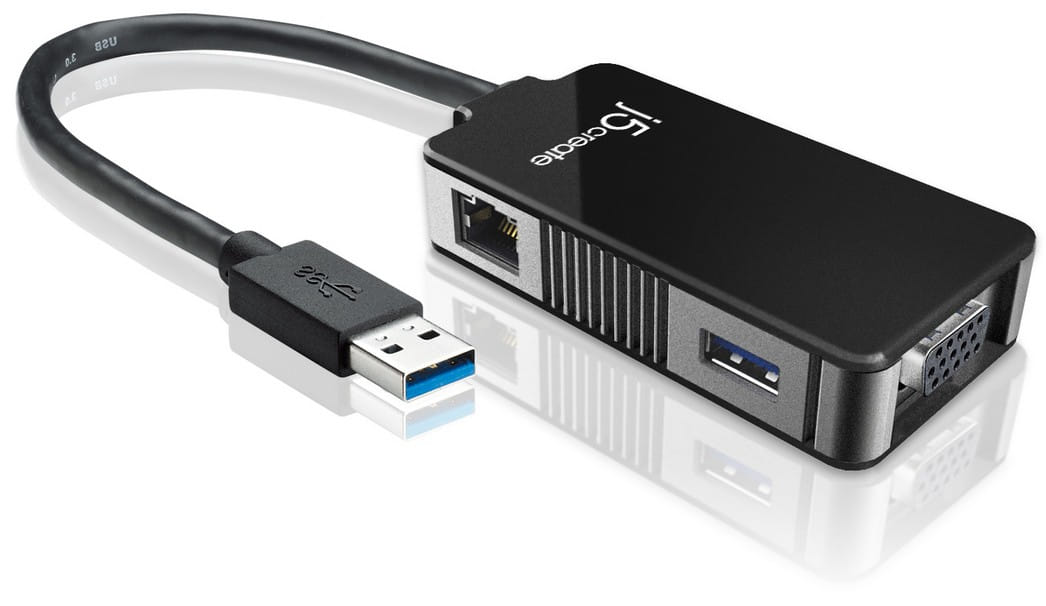

j5create USB3.0 Multi Function Adapter USB Hub + Gigalan + VGA (Windows/Mac)
The j5create USB 3.0 Multi-Adapter JUA370 / JUA370BE provides extra connectivity from your computer with 5Gb/s faster transfer speed. These pocket-sized Multiadapters allow you to add an additional USB computer peripheral, VGA Monitor or Gigabit LAN through you USB port.
With USB 3.0 Multi-Adapter, no need to open up the computer to add an expensive graphics card,you simply load the drivers, plug in the adapter to the USB port, then plug in the VGA monitor cable into the adapter and you are ready.
Features
USB 3.0 SuperSpeed
* USB 3.0 Super Speed port
* Transfer rates of up to 5Gb/s, enable bulky file backup
* Backwards compatible with USB 2.0 and USB 1.1 device
* Hot-swapping connect / disconnect without powering down
* Plug & Play
* Compatible with Windows and Mac OS
USB 3.0 Display
* Supports display resolution:2048 x 1152 @ 32bit
* Supports 1080P Video Playback
* Supports Display Modes: Primary, Extended, Mirror
* Display Rotation: 0°, 90°, 180°, 270° (Please note: Rotation Mode functions on Windows only!)
USB 3.0 Gigabit Ethernet
* Quickly add a Gigabit Ethernet port over USB 3.0
* USB 3.0 plug-and-play and backwards compatible with USB2.0/1.1
* Transfer all of your files almost instantly over a true Gigabit network.
* IEEE 802.3, 802.3u and 802.3ab (1BASE-T, 100BASE-TX, and 1000BASE-T)
compatible
* USB bus-powered
* Activity and Link LED indicators
Specifications:
- Host Interface: USB 3.0 Male Type-A connector
- Video Interface: VGA-DB 15 pin Female connector
- Ethernet Port: RJ-45 Female connector (Gigabit Ethernet)
- USB Port: USB 3.0 Female connector
- Power Mode: Bus-powered
- Display
- Video Playback: 1080P
- Display resolution: 2048 x 1152 @ 32bit
- Display Modes: Primary, Extended, Mirror
- Display Rotation: 0°, 90°, 180°, 270°
- Ethernet
- Transfer Rate:1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
- IEEE:IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
- Modes:
- Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
- Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
- Supports Jumbo Frame
- Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
- Dimensions
- Main body: 43.75(W)x 90.6(H)x18.6(D) mm
- Cable length: 14.5 cm
- Weight: Approximately 58.5 g (including cable)
- Environments
- Microsoft Windows 8.1, 8, 7, XP (32-bit or 63-bit)
- Mac OS X 10.10, 10.9, 10.8, 10.7, 10.6
- CPU: Intel i3 Dual Core 1.5 GHz / Intel Atom "Bay Trail" Quad Core 1.33 GHz
- RAM: 2 GB or higher
- Available USB port (USB 3.0 is recommended)
| Ports & interfaces | |
| Connector 1 This is the first connector in the device. | USB3.0 |
| Connector 2 This is the second connector in the device. | USB3.0, / RJ45 / VGA |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 5 Gbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| USB required |
 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1152 pixels |
| LED indicators | Activity,Link |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | - Windows 8.1 / 8 / 7/ XP - Mac OS X 10.6 / 10.7 / 10.8 / 10.9 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 42 mm |
| Height The measurement of the product from head to foot or from base to top. | 18 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 50 g |
| Other features | |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| SKU | 218890 |
| MPN | JUA370 |
| Brand | J5 Create |
| Product Condition | Brand New/Unused |
