IVSEC IVK 54, Wired, Turret, RJ 45, Indoor/outdoor, 3.6 mm, 87

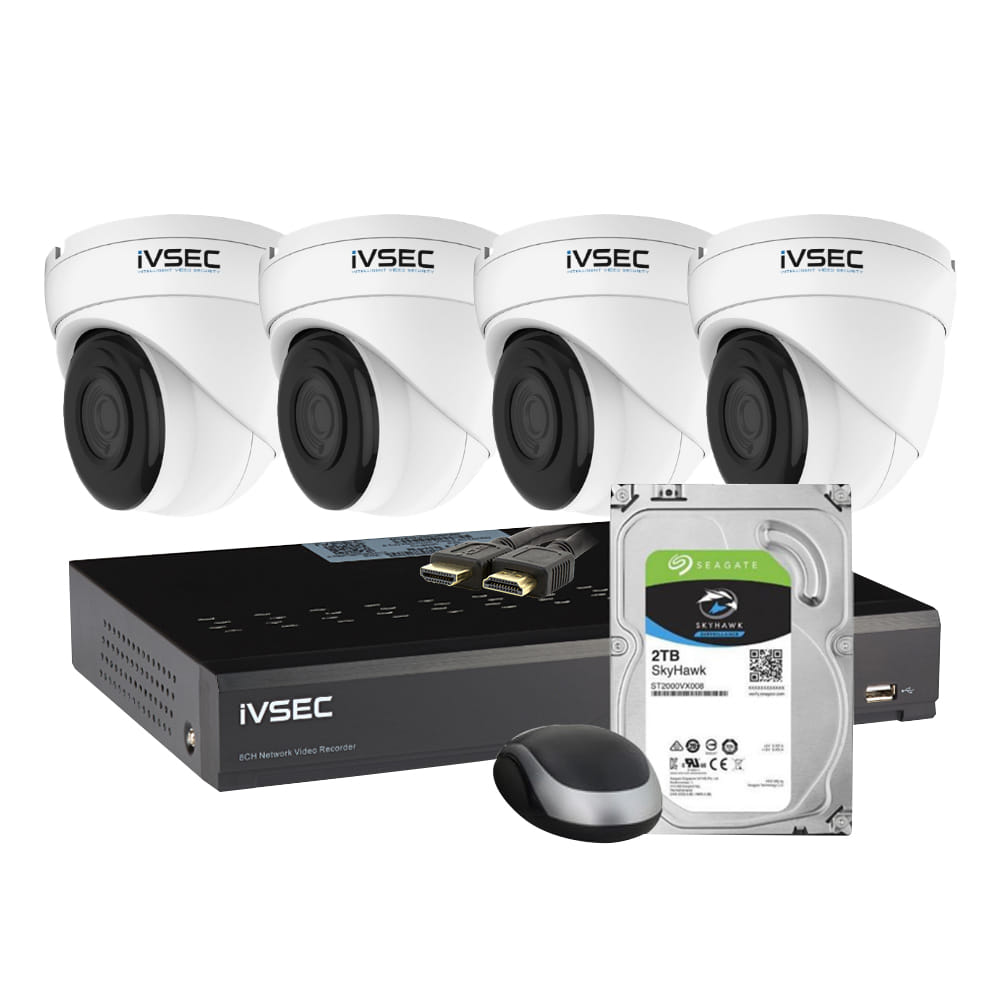

All you need for a quality video surveillance solution is in this box:
4 x IVSEC NC340XA 12MP IP Cameras
- 12 Mega-pixel high resolution
- Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code)
- Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Human and vehicle detection, Face Detection, Cross Counting, Crowd Density Detection, Queue Length Detection, Heatmap
- Smart IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Corridor Mode, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
IVSEC NR3082X-2TB Network Video Recorder
- 8 PoE+ ports built-in
- Continuous, Scheduling, Event-Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting)
- Bays x 2, up to 32TB per HDD
- Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app
Additional Inclusions
- 1 x HDMI cable
- 1 x Mouse
- 2TB SkyHawk Surveillance HHD pre-installed
4 x IVSEC NC340XA 12MP IP Cameras
- 12 Mega-pixel high resolution
- Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app (QR code)
- Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Human and vehicle detection, Face Detection, Cross Counting, Crowd Density Detection, Queue Length Detection, Heatmap
- Smart IR, Flip mode, Brightness, Contrast, Saturation, Sharpness, Hue, Corridor Mode, Mirror, Angle Flip, Back Light, White Balance, Shutter, Time Exposure, Defog, 3D Noise Reduction
IVSEC NR3082X-2TB Network Video Recorder
- 8 PoE+ ports built-in
- Continuous, Scheduling, Event-Triggered ( PIR, IVS, Motion, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Pedestrian Detection, Face Detection, Cross Counting)
- Bays x 2, up to 32TB per HDD
- Device Search/Config Tool, Surveillance Client (CMS/VMS), Mobile app
Additional Inclusions
- 1 x HDMI cable
- 1 x Mouse
- 2TB SkyHawk Surveillance HHD pre-installed
| Camera | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Camera included This product includes a camera. |
 |
| Colour The main colour of the product. |
|
| Surveillance camera form factor Design of the surveillance (security) camera. | Turret |
| Built-in microphone Microphone that is found inside the product. |
|
| Camera interface The place where the camera connects to other devices e.g. USB port. | RJ-45 |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor/outdoor |
| Camera card reader integrated |
|
| Fixed focal length | 3.6 mm |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 87° |
| Number of cameras The quantity of cameras that product can support. | 4 |
| Night mode |
|
| Night vision distance | 30 m |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Optical sensor size Optical sensors are electronic detectors that convert light, or a change in light, into an electronic signal. They are used in many industrial and consumer applications e.g. lamps that turn on automatically in response to darkness. Optical sensors come in many sizes. | 25.4 / 2.3 mm (1 / 2.3") |
| Camera resolution Amount of data measured in pixels that the product captures to form the image | 4096 x 3072 pixels |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 12 MP |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP66 |
| Vandal-proof Product is designed to be installed in a location (or device) and application where they may be subject to vandalism or tampering. |
|
| Recorder | |
| Recorder included The product includes a recorder. |
|
| Channels quantity The number of channels the device has. There can be an individual input or output for each channel. | 8 channels |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | HDD |
| Total storage capacity The total amount of data that can be stored on the device. | 2 TB |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 32 TB |
| Number of HDDs installed The number of hard drives built into the device. | 1 |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 2 TB |
| Maximum HDD capacity | 32 TB |
| Motion sensor Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems. |
|
| Power over Ethernet (PoE) ports quantity | 8 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Power | |
| Power source type What the power source is. | AC, DC, PoE |
| Camera power consumption (typical) | 7 W |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Camera operating temperature (T-T) | -30 - 55 °C |
| Camera operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Video compression formats | H.264, H.264+, H.265, H.265+, M-JPEG |
| Weight & dimensions | |
| Camera width | 10 cm |
| Camera depth | 10 cm |
| Camera weight | 440 g |
| Packaging content | |
| Mouse included A mouse is included with this product. |
|
| Cables included | HDMI |
| SKU | 726677 |
| MPN | IVK-54 |
| Brand | Ivsec |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
