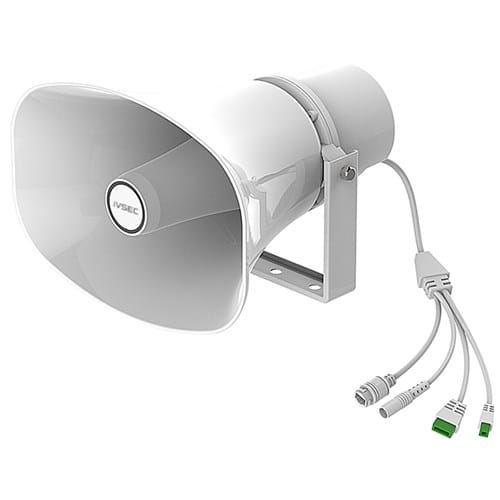

NS100YA Speaker
The iVSEC NS100YA is a commercial-grade IP horn speaker designed for public address paging and emergency broadcasting. Built for both indoor and outdoor use it functions as a standalone audio terminal or integrates with broader communication and security systems for unified control.
Delivering up to 30W output and high sound pressure levels the iVSEC NS100YA provides clear wide-area audio coverage suitable for campuses industrial sites and public spaces. It supports HD audio codecs along with two-way intercom via a built-in microphone ensuring reliable communication and broadcast clarity.
With IP66-rated protection the unit is resistant to dust and water making it ideal for harsh environments. It supports SIP protocol multicast paging and multiple management options while also enabling scheduled broadcasts emergency alerts and integration with systems such as surveillance and alarms.
| Colour | White |
| Mouning | Wall |
| SIP Accounts | 2 |
| Multicast Partitions | 20 |
| Customised Audio Support | Yes |
| Auto Answer | Yes |
| HTTP/Webhook Support | Yes |
| DTMF Support | Yes |
| Web GUI | Yes |
| Storage Capacity Mb | 500 |
| ONVIF | Yes |
| Protocols | DHCP FTP/TFTP HTTP/HTTPS IPv6 L2TP OpenVPN PPPoE RTP/RTCP/SRTP SIP2.0 SNTP STUN TR-069 |
| Encoding | G.711A/U G.722 G723 G726-32K G.729A/B iLBC Opus |
| Language | English |
| Auto-Provisioning | Yes |
| Outdoor Use | Yes |
| IP Rating | IP66 |
| Accessories | n/a |
| Frequency Response | 350Hz-7.5KHz |
| Speaker Sensitivity | 107± 3dB |
| Impedance | 8Ω |
| Max SPL | 120dB |
| Speaker Power Max | 8W PoE 15W PoE 30W 24V DC/2A |
| Additional Speaker Support | No |
| Microphone | Yes |
| Microphone Sensitivity | -38± 3dB |
| Self Testing Feature | Yes |
| Ethernet | Yes 10/100 Mbps |
| Power Over Ethernet | Yes |
| Power Supply | 24V DC/2A PoE PoE |
| Power Consumption | 48W max |
| Connectors | 2 pin DC input 1 x Relay input 1 x Relay output 1 x RJ45 port |
| Wi-Fi | No |
| Bluetooth | No |
| Operating Environment | -30&8451; – 60&8451; 10-95 RH |
| Storage Environment | -40&8451; – 70&8451; |
| In The Box | 1 x SIP Speaker 1 x Quick Guide |
| Warranty | 2 Years Parts |
| Product Dimensions H x W x L mm | 205 x 285 x 285 |
| Packaging Dimensions H x W x L mm | 250 x 310 x 310 |
| Weight Net kg | 9.76 |
| Weight Gross kg | 11.12 |
| SKU | 836273 |
| MPN | NS100YA |
| Brand | Ivsec |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://ivsecurity.com.au/ |
