IP COM Networks iUAP AC M, 1167 Mbit/s, 300 Mbit/s, 867 Mbit/s, 10,100,1000 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, 256 user(s)

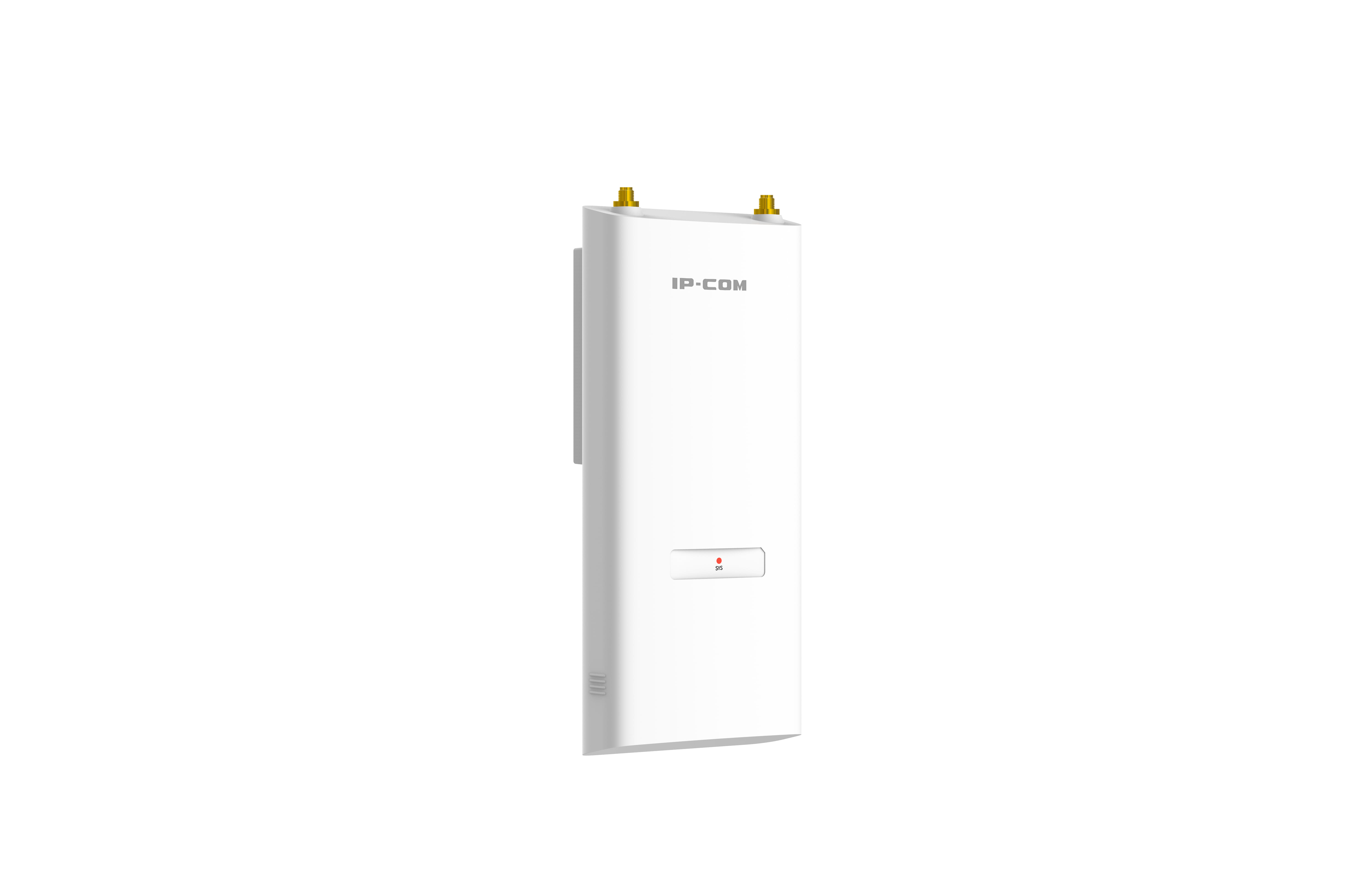

The gigabit dual band indoor/outdoor access point iUAP AC M offers a concurrent data rate as high as 1167 Mbps. Equipped with 2 omni directional high gain antennas, iUAP AC M provides a maximum coverage radius of 200 meters. iUAP AC M can be installed either on the wall or around a pole. iUAP AC M can meet different requirements by connecting antennas of different specifications to the standard RP SMA connectors. With the IP65 enclosure, iUAP AC M is designed for wireless coverage in factories, warehouses and other harsh outdoor environments.
IP65 protection
Professional materials and design guarantee iUAP AC M an IP65 enclosure for harsh environments both indoors and outdoors.
IEEE 802.11ac Wave2 and MU MIMO
Powered by MU MIMO technology, a single iUAP AC M can communicate with multiple wireless clients at the same time, letting you enjoy higher throughput and better experience.
Dual band for more connected clients
iUAP AC M allows clients that support either 2.4 GHz or 5 GHz band, or both to connect to it at the same time, tripling the quantity of connected clients of traditional single band AP.
High gain omni directional antennas
Equipped with two 5 dBi high gain omni directional antennas, iUAP AC M provides a maximum coverage radius of 200 meters. iUAP AC M can meet different requirements by connecting antennas of different specifications to the standard RP SMA connectors.
Built in RF for intelligent optimization
Featuring various anti interference algorithms, the built in RF enables iUAP AC M to evenly allocate bandwidth resources for multiple users, filter interference, and optimize data rate, offering you a guaranteed signal strength and reliable wireless experience.
VLAN tagging for SSID
iUAP AC M allows you to set multiple SSIDs and add VLAN tags for SSIDs, thus protecting your network.
Standard PoE sourcing and DC power supply for easy deployment
You can use an IEEE 802.3at compliant PoE sourcing equipment, or a 24V DC power adapter to power on iUAP AC M.
Centralized management
The iUniFi Controller makes it easy to manage and monitor the whole iUniFi devices in a real time manner and the cloud services enable a remote and secure access free from the restrictions of device location.
IP65 protection
Professional materials and design guarantee iUAP AC M an IP65 enclosure for harsh environments both indoors and outdoors.
IEEE 802.11ac Wave2 and MU MIMO
Powered by MU MIMO technology, a single iUAP AC M can communicate with multiple wireless clients at the same time, letting you enjoy higher throughput and better experience.
Dual band for more connected clients
iUAP AC M allows clients that support either 2.4 GHz or 5 GHz band, or both to connect to it at the same time, tripling the quantity of connected clients of traditional single band AP.
High gain omni directional antennas
Equipped with two 5 dBi high gain omni directional antennas, iUAP AC M provides a maximum coverage radius of 200 meters. iUAP AC M can meet different requirements by connecting antennas of different specifications to the standard RP SMA connectors.
Built in RF for intelligent optimization
Featuring various anti interference algorithms, the built in RF enables iUAP AC M to evenly allocate bandwidth resources for multiple users, filter interference, and optimize data rate, offering you a guaranteed signal strength and reliable wireless experience.
VLAN tagging for SSID
iUAP AC M allows you to set multiple SSIDs and add VLAN tags for SSIDs, thus protecting your network.
Standard PoE sourcing and DC power supply for easy deployment
You can use an IEEE 802.3at compliant PoE sourcing equipment, or a 24V DC power adapter to power on iUAP AC M.
Centralized management
The iUniFi Controller makes it easy to manage and monitor the whole iUniFi devices in a real time manner and the cloud services enable a remote and secure access free from the restrictions of device location.
| Features | |
| 2.4 GHz |
 |
| 5 GHz |
|
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Number of users The number of people that use or can use this product. | 256 user(s) |
| MIMO |
|
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Tagged VLAN |
| Wireless isolation |
|
| Receiver sensitivity | -93 dBm, -72 dBm, -93 dBm, -74 dBm |
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | WEP, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| Service Set Identifier (SSID) features | Hidden SSID |
| Number of SSID supported | 12 |
| Management features | |
| Web-based management Using a website/web application to manage something. |
|
| Syslog |
|
| Firmware upgradeable |
|
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Power | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 24 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 11.5 W |
| Design | |
| Placement Where the product can be placed e.g. floor, wall. | Pole, Wall |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| Reset button |
|
| LED indicators | System |
| Antenna | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | External |
| Antenna direction type | Omni-directional |
| Antennas quantity | 2 |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5 dBi |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-SMA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 83 mm |
| Depth The distance from the front to the back of something. | 42.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 194.7 mm |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 30 - 79 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| SKU | 723584 |
| MPN | iUAP-AC-M |
| Brand | IP-COM |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ip-com.com.cn/ |
