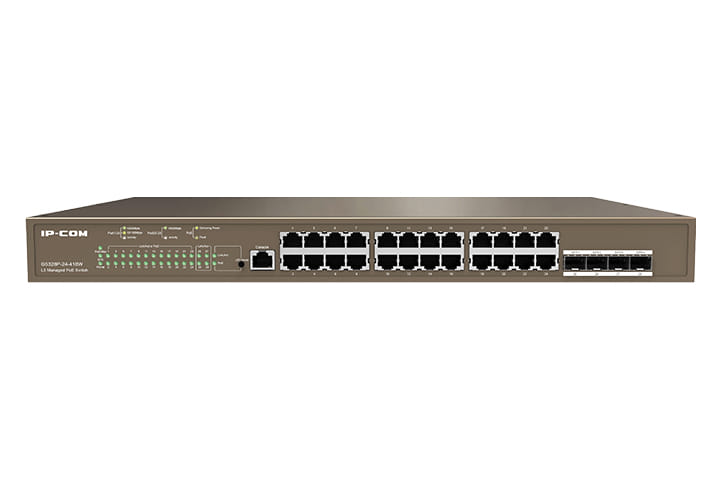

IP-COM G5328P-24-410W F1109DT Layer 3 Managed PoE Switch

Management features
Switch type What switch device has, managed or unmanaged.	Managed
Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things).	L3
Quality of Service (QoS) support
Web-based management Using a website/web application to manage something.
ARP inspection

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets).	24
Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets).	Gigabit Ethernet (10/100/1000)
Fiber ports quantity The number of sockets (ports) for fibers (cables).	4
Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced.	SFP

Network
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support The product can use Oracle 10G, which is a database management system introduced in 2003.
Port mirroring
Link aggregation
Spanning tree protocol
MAC address auto-learning supported
VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level.

Optical fiber
Fiber ethernet cabling technology	1000BASE-X

Data transmission
Switching capacity The data transfer capacity of the switch per second.	56 Gbit/s
Forwarding rate	41.7 Mpps
MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format.	16000 entries
Store-and-forward
Packet buffer memory	12 MB

Security
DHCP features	DHCP relay, DHCP snooping
Access Control List (ACL)
IGMP snooping
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	SNMP, SNMPv2, SNMPv3
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)

Design
Rack mounting The type of mounting that can position devices in a shelving system (rack).
Form factor The shape or design of the product.	1U
Product colour The colour e.g. red, blue, green, black, white.	Black
LED indicators	Activity, Link, PoE, Power, System
Certification	CCC、FCC、CE、RoHS

Performance
Firmware upgradeable

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max) The maximum amount of power used by the device.	410 W

Power over Ethernet (PoE)
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
Power over Ethernet (PoE) ports quantity	24
Total Power over Ethernet (PoE) budget	370 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	440 mm
Depth The distance from the front to the back of something.	284 mm
Height The measurement of the product from head to foot or from base to top.	44 mm

Logistics data
Harmonized System (HS) code	85176990
