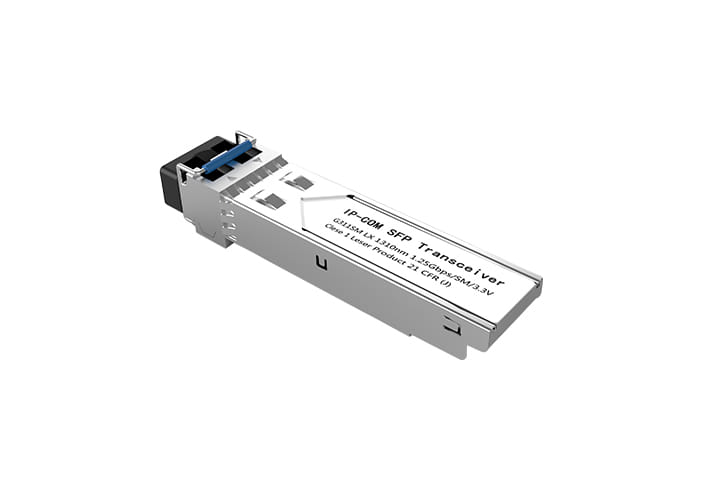

IP COM Networks G311SM, Fiber optic, 1250 Mbit/s, SFP, LC, 9/125 m, 20000 m
G311SM is single mode optical fiber module. Support optical fiber transmission to extend LAN area and bandwidth, good to extend the networking coverage in large and middle LAN. Compliant with IEEE802.3z standard and working on 1310nm mode. Small size design and can be built in switch with small space. Internal power by switch and easy installation, can be matched well with IP COM series switch which owns SFP port.
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1250 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported |
 |
| Multi-mode fiber (MMF) supported |
 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 20000 m |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 1310 nm |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Housing material What the casing of the product is made of. | Metal |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Easy to install |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 3.3 V |
| Packaging data | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| SKU | 736400 |
| MPN | G311SM |
| Brand | IP-COM |
| Product Condition | Brand New/Unused |
| Product Use | General |
