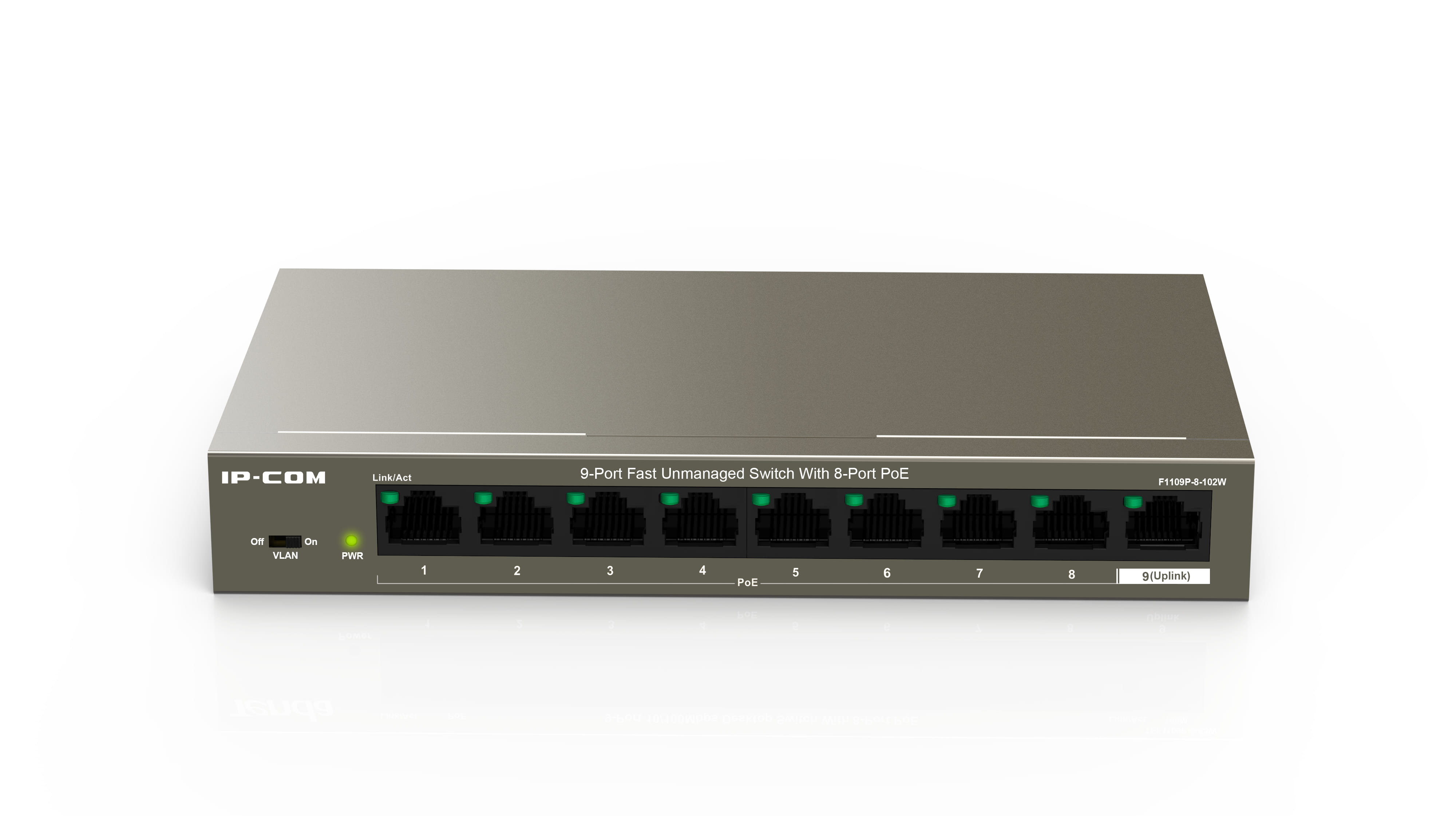

IP COM Networks F1109P 8 102W, Unmanaged, Fast Ethernet (10/100), Power over Ethernet (PoE), Wall mountable
F1109P 8 102W is a IP COM switch that offers 9 10/100M RJ45 ports. Ports 1 8 comply with the IEEE802.3af standard (maximum PoE power output :15.4w) and 802.3at standard (maximum PoE poweroutput: 30W). The switch offers a maximum PoE poweroutput of 92W and can supply power to exchange data with APs, IP cameras, and IP phones through CAT5e cables. It also provides simple management modes such as Standard, VLAN. Thus, F1109P 8 102W is a perfect choice for SMBs, hotels, and office to have small scale HD surveillance and wireless networking.
large packet buffer
1Mb built in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos.
92W PoE power supply
Ports Ports 1 8 comply with the IEEE802.3af and IEEE802.3at power supply standards. Theentire switch offers a maximum PoE power output of 92W, whereas each ports offers amaximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.
Excellent Lightning Proof design
Integrated professional lightning proof circuit which supports port and power supply lightning proof (common mode protection 6KV). Effectively reduce the damage to the network system caused by the thundery weather.
2 Network operation modes offered
Hardware DIP switch for selection among the Standard, VLAN modes. Switch to VLANmode to prevent broadcast storm and defend against DHCP spoofing .
large packet buffer
1Mb built in packet buffer outstand in comparison, ensuring smooth transmission of large files and HD videos.
92W PoE power supply
Ports Ports 1 8 comply with the IEEE802.3af and IEEE802.3at power supply standards. Theentire switch offers a maximum PoE power output of 92W, whereas each ports offers amaximum PoE power output of 30W. The ports can be used to supply power to and exchange data with APs and IP cameras.
Excellent Lightning Proof design
Integrated professional lightning proof circuit which supports port and power supply lightning proof (common mode protection 6KV). Effectively reduce the damage to the network system caused by the thundery weather.
2 Network operation modes offered
Hardware DIP switch for selection among the Standard, VLAN modes. Switch to VLANmode to prevent broadcast storm and defend against DHCP spoofing .
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 8 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Fast Ethernet (10/100) |
| Console port | RJ-45 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Flow control support |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100 Mbit/s |
| MAC address auto-learning supported |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 1.8 Gbit/s |
| Forwarding rate | 1.34 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 2000 entries |
| Store-and-forward |
|
| Packet buffer memory | 1 MB |
| Security | |
| DHCP features | DHCP snooping |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Power | |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 51 V |
| Input current | 2 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 102 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 92 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 177.5 mm |
| Depth The distance from the front to the back of something. | 104 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 706478 |
| MPN | F1109P-8-102W |
| Brand | IP-COM |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ip-com.com.cn/ |
