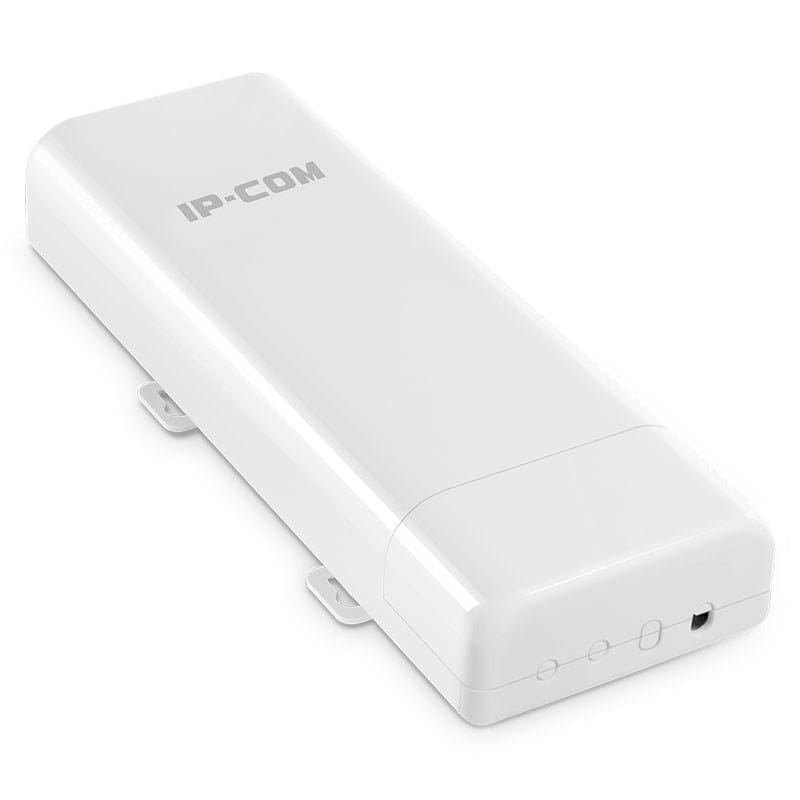

IP-COM 5GHz 11AC 433Mbps Outdoor Point to Point CPE

Features
2.4 GHz
5 GHz
Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another.	433 Mbit/s
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	1000 Mbit/s
Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones.	5 GHz
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Wi-Fi Multimedia (WMM)/(WME)
Wireless isolation
Receiver sensitivity	MCS0: -90dbm MCS7: -72dbm

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Service Set Identifier (SSID) features	Hidden SSID
VPN support	PPTP,L2TP

Protocols

DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.

Management features
Web-based management Using a website/web application to manage something.
Syslog
Firmware upgradeable

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1

Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.

Design
Product colour The colour e.g. red, blue, green, black, white.	White
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP64
Reset button
LED indicators
Certification	FCC/CE/RoHS

Antenna
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	Internal
Antenna direction type	Directional
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	16 dBi

Performance
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Broadcom
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	900 MHz

Weight & dimensions
Width The measurement or extent of something from side to side.	270 mm
Depth The distance from the front to the back of something.	94.9 mm
Height The measurement of the product from head to foot or from base to top.	67.5 mm

Packaging content
Number of products included The number of products that are included in the package.	1 pc(s)
AC adapter included
Cables included	LAN (RJ-45)
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Operational conditions
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-20 - 55 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Storage relative humidity (H-H)	10 - 90%

Logistics data
Harmonized System (HS) code	85176990
