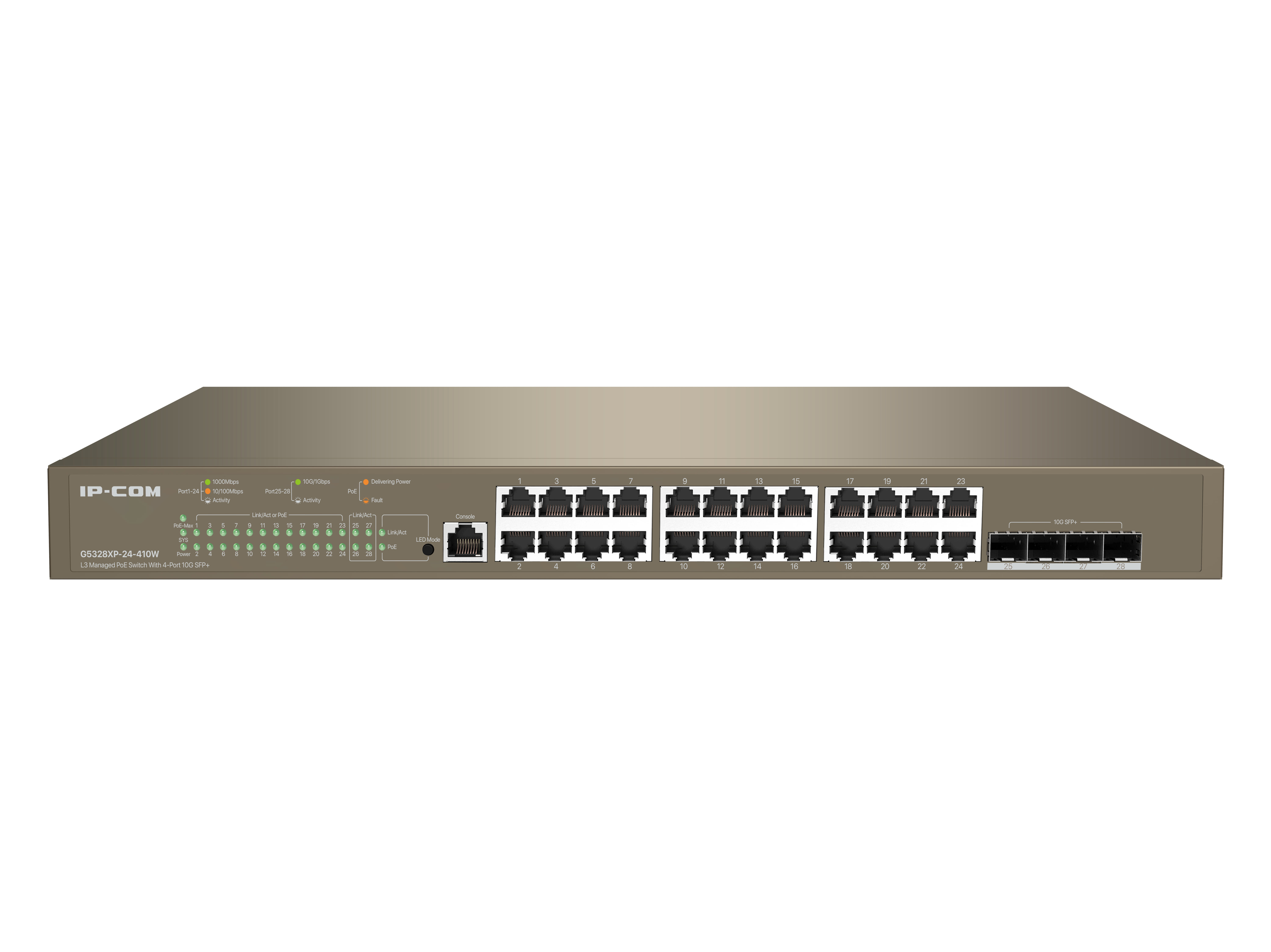

IP COM Networks G5328XP 24 410W, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
G5328XP 24 410W is a layer 3 cloud managed switch with 10G uplink ports designed by IP COM for office network in SMBs and wireless coverage in hotels, schools and supermarkets. The switch provides 24 10/100/1000 Base't Ethernet ports and 4 10G Base X SFP ports, and offers cloud management, remote App management as well as visualized local management, achieving more efficient network maintenance, lower after sales cost and easier configuration anytime and anywhere.
Remote Cloud Management
Supports remote management through IP COM ProFi Cloud web UI and ProFi App, adding devices in batches through QR codes for cloud management, as well as the configuration of VLAN, DHCP snooping, loop guard on ProFi App, realizing easy operation and maintenance.
Abundant L2 and L3 Features
Supports the IPv4 static routing protocol, DHCP server, DHCP relay and DHCP snooping. Supports loop guard protocols STP, RSTP and MSTP.
Supports 802.1Q VLAN, voice VLAN, IP subnet based VLAN, protocol VLAN and MAC VLAN.
Topology Visualization
Generates network topology automatically, featured with camera recognition based on the ONVIF protocol, network device recognition through the LLDP protocol as well as online/offline test of all devices in the network, greatly improving the efficiency of network maintenance.
Robust Security Mechanism
Supports IP/MAC/ARP filtering/DoS attack defense, HTTPS, SSH secure access and the ACL access control list, filtering corresponding data packets and enhancing network security
Remote Cloud Management
Supports remote management through IP COM ProFi Cloud web UI and ProFi App, adding devices in batches through QR codes for cloud management, as well as the configuration of VLAN, DHCP snooping, loop guard on ProFi App, realizing easy operation and maintenance.
Abundant L2 and L3 Features
Supports the IPv4 static routing protocol, DHCP server, DHCP relay and DHCP snooping. Supports loop guard protocols STP, RSTP and MSTP.
Supports 802.1Q VLAN, voice VLAN, IP subnet based VLAN, protocol VLAN and MAC VLAN.
Topology Visualization
Generates network topology automatically, featured with camera recognition based on the ONVIF protocol, network device recognition through the LLDP protocol as well as online/offline test of all devices in the network, greatly improving the efficiency of network maintenance.
Robust Security Mechanism
Supports IP/MAC/ARP filtering/DoS attack defense, HTTPS, SSH secure access and the ACL access control list, filtering corresponding data packets and enhancing network security
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| Cloud-managed |
|
| ARP inspection |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 24 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 4 |
| Console port | RJ-45 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| Virtual LAN features | IP subnet–based VLAN, MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 128 Gbit/s |
| Forwarding rate | 95.2 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 16000 entries |
| Store-and-forward |
|
| Security | |
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS, HTTPS, SSH-2 |
| SSH/SSL support |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| LED indicators |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 284 mm |
| Depth The distance from the front to the back of something. | 440 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Packaging data | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
| SKU | 737585 |
| MPN | G5328XP-24-410W |
| Brand | IP-COM |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.ip-com.com.cn/ |
