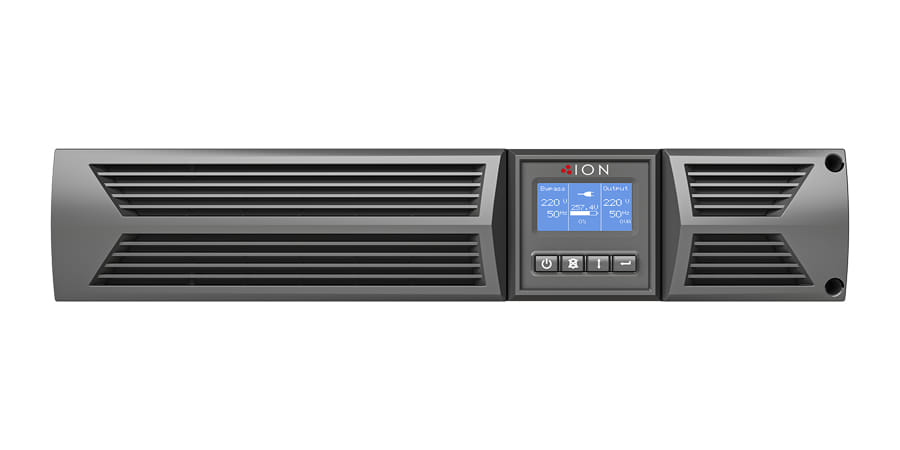

ION UPS F18 6000, Double conversion (Online), 6 kVA, 5400 W, Pure sine, 230 V, 50/60 Hz
The ION F18 Rack/Tower UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of >97%, the F18 UPS cuts energy costs while packing up to 6kVA of power into only 3RU of rack space and 10kVA of power into only 5RU of rack space. The F18 UPS range also has a LCD user interface to simplify monitoring. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high end computing and applications exposed to potential data loss, corruption and downtime.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 6 kVA |
| Output power The power that the device can produce. | 5400 W |
| Waveform | Pure sine |
| Input operation voltage (max) The maximum input voltage supported by the device. | 230 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 230 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 47 – 53, 57 – 63 |
| Efficiency | 92% |
| Efficiency (On-line mode) | 89% |
| Efficiency (ECO mode) | 96% |
| Power factor | 0.9 |
| Emergency Power Off (EPO) |
 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40 dB |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Power source type What the power source is. | AC |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| Serial interface |
|
| Serial interface type | RS-232 |
| Emergency Power Off (EPO) connector |
|
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 6 h |
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Rack capacity The spase that device fill in rack. | 3U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 710 mm |
| Height The measurement of the product from head to foot or from base to top. | 130 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 46 kg |
| SKU | 712766 |
| MPN | F18-6000 |
| Brand | ION |
| Product Condition | Brand New/Unused |
| Product Use | General |
