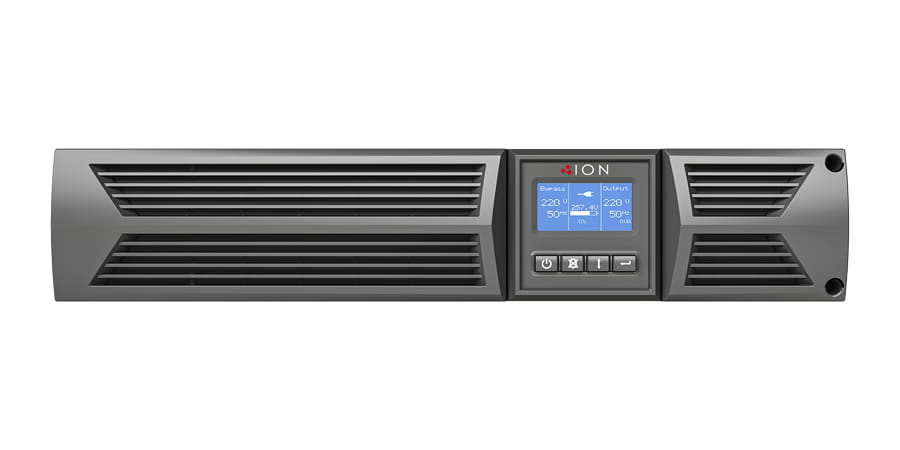

ION F18 2000VA / 1800W Online Double Conversion UPS, 2U Rack/Tower, 8 x C13. 3yr Advanced Replacement Warranty, Short Depth - FREE RAIL KIT
The ION F18 Rack/Tower UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of >95%, the F18 UPS cuts energy costs while packing up to 3kVA of power into only 2RU of rack space. The F18 UPS range also has a LCD user interface to simplify monitoring. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss, corruption and downtime.
3 year advanced replacement warranty
Grouped programmable outlets
0.9 power factor
Wide voltage input range
High efficiency
Optional additional batteries for extendable run time
Power management software
Optional SNMP & relay cards
Optional Wi-Fi communication module
Compact design (2RU)
Flexible rack/tower footprint
For all Warranty / DOA claims, contact ION Warranty Support Line - 1300 700 805
Rail Kit Included
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 2 kVA |
| Output power The power that the device can produce. | 1800 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 170 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 280 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (max) The maximum output voltage produced by the device. | 230 V |
| Output frequency | 50/60 Hz |
| Output frequency regulation | 47 – 53, 57 – 63 |
| Output voltage regulation | 5% |
| Efficiency | 88% |
| Efficiency (On-line mode) | 83% |
| Efficiency (ECO mode) | 95% |
| Power factor | 0.9 |
| ECO mode |
 |
| Emergency Power Off (EPO) |
|
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40 dB |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Power source type What the power source is. | AC |
| Detachable power cord |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 8 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| Serial interface type | RS-232 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Emergency Power Off (EPO) connector |
|
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 6 h |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 2U |
| Built-in fan |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 435 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 20 kg |
| Package weight Weight of the packaged product. | 28 kg |
| SKU | 576604 |
| MPN | F18-2000 |
| Brand | ION |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.ionups.com.au/ |
