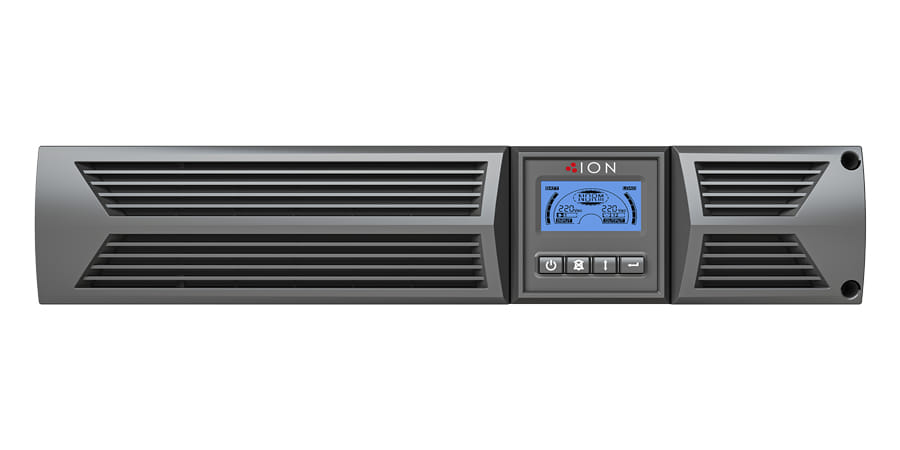

ION F16 1000VA / 900W Line Interactive 2U Rack/Tower UPS, 8 x C13 (Two Groups of 4 x C13). 3yr Advanced Replacement Warranty. Rail Kit Inc.
The ION F16 Rack/Tower UPS provides line-interactive backup, high power factor power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. With an intuitive LCD display, outlet groups, and high efficiency, the F16 is the affordable way for businesses to flexibly integrate reliable power backup and protect vital IT and Telecom equipment.
3 year advanced replacement warranty
Rotate-able LCD display
Optional additional battery modules extending run time
0.9 power factor
Pure Sine Wave output
Easy battery replacement
Power management software
Optional SNMP and relay card
Optional Wi-Fi communication module
Self-monitoring and fault diagnosis
Grouped programmable outlets
Flexible rack/tower footprint
For all Warranty / DOA claims, contact ION Warranty Support Line - 1300 700 805
Rail Kit Included.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 1 kVA |
| Output power The power that the device can produce. | 900 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 161 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 276 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50 Hz |
| Output voltage regulation | 5% |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 2 ms |
| Efficiency | 86% |
| Efficiency (On-line mode) | 96% |
| Power factor | 0.9 |
| Emergency Power Off (EPO) |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40 dB |
| Power source type What the power source is. | AC |
| Detachable power cord |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 8 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| Serial interface |
|
| Serial interface type | RS-232 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Emergency Power Off (EPO) connector |
|
| Battery | |
| Battery life (max) | 5 year(s) |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 6 h |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 2U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 440 mm |
| Depth The distance from the front to the back of something. | 435 mm |
| Height The measurement of the product from head to foot or from base to top. | 86 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 20 kg |
| Package width The distance from one side of the packaging to the other. | 440 mm |
| Package depth The distance from the front to the back of the packaging. | 435 mm |
| Package height The distance from the top to the bottom of the packaging. | 86 mm |
| Package weight Weight of the packaged product. | 21 kg |
| SKU | 551327 |
| MPN | F16-1000 |
| Brand | ION |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.ionups.com.au/ |
