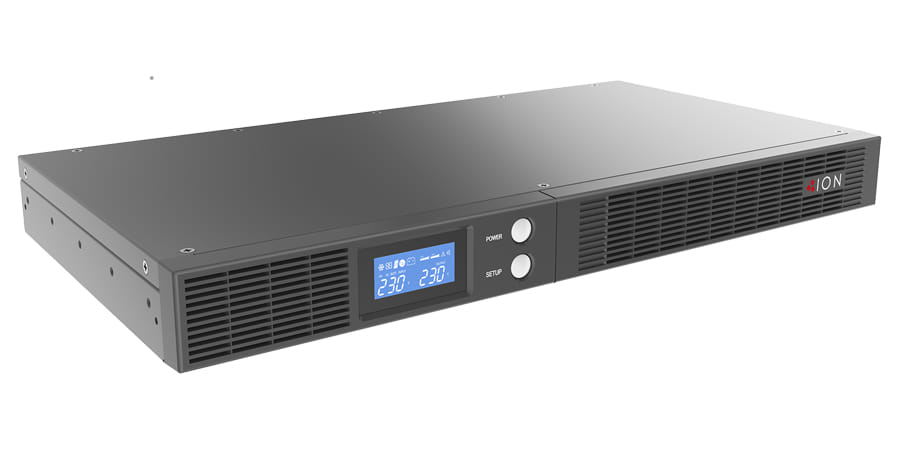

ION F15R 650VA Line Interactive 1RU rack mount UPS, 4 x IEC C13, 3yr Advanced Replacement Warranty. Rail Kit Inc.
ION F15R line interactive pure sinewave 1RU rack / tower UPS has been designed for high power density protection in a compact footprint. Ranging from 650VA, 1200VA & 1600VA the F15R comes with the option for network management cards as well as Wi-Fi. The F15R UPS also has a LCD user interface to simplify monitoring. The F15R range is the perfect way to flexibly integrate reliable power supply and protection for security products, servers, switches, routers storage devices and short depth rack applications exposed to potential data loss, corruption and downtime.
3 year advanced replacement warranty
Fanless Technology
Stable Low Frequency Design
Pure Sine Wave Automatic Voltage Regulation (AVR)
Energy Saving UPS Technology
Auto-Restart/Auto-Charge
User-Friendly LCD Display
Cold Start Function
Optional SNMP and SNMP Wi-Fi cards
HID USB & RS232 Connectivity Ports
Optional Conformal Coating for harsh environments
For all Warranty / DOA claims, contact ION Warranty Support Line - 1300 700 805
Rail Kit Included
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 0.65 kVA |
| Output power The power that the device can produce. | 390 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 220 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) |
 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 4 ms |
| Emergency Power Off (EPO) |
|
| Input current Total Harmonic Distortion (THD) | 3% |
| Auto-restart |
|
| Power source type What the power source is. | AC |
| Detachable power cord |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 4 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| Serial interface |
|
| Serial interface type | RS-232 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Emergency Power Off (EPO) connector |
|
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 6 V |
| Number of batteries supported The number of batteries that can be used with the product. | 2 |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 4 h |
| Charging current | 1 A |
| Cold start |
|
| Design | |
| Form factor The shape or design of the product. | Tower |
| Rack capacity The spase that device fill in rack. | 1U |
| Built-in fan |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 433 mm |
| Depth The distance from the front to the back of something. | 216 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.6 kg |
| SKU | 551313 |
| MPN | F15R-650 |
| Brand | ION |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.ionups.com.au/ |
