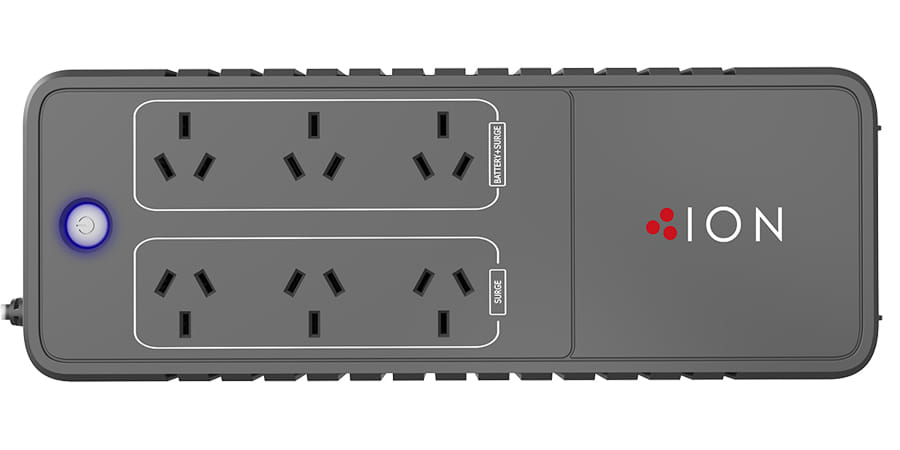

ION F10 850VA Power Board UPS, 6 Outlets, 2 Year Warranty
ION F10 850VA Power board UPS has been designed as an affordable compact power protection solution. The F10 is the perfect way to protect Point Of Sale (POS), Security applications, Small Office Home Office (SOHO) PC/Work Stations, Telephone Equipment, Routers, Storage devices, Modems, Home theatres, Gaming products and more. With its six Australian 3 Pin outlets, three for surge protection and three for battery backup and surge protection it allows for easy connection for multiple devices reducing exposure to potential data loss, corruption and downtime.
2 Year Advanced Replacement Warranty
Six Australian outlets
Compact Solution
Fanless Technology
Supports APFC Equipment
Auto-Restart/Auto-Charge
Cold Start Function on battery Mode
Intelligent LED Indicator
USB Communication Port & RJ-11/RJ-45 Protection
Wall mountable
For all Warranty / DOA claims, contact ION Warranty Support Line - 1300 700 805
850VA
| Features | |
| Output power capacity The maximum power that the device can produce. | 0.85 kVA |
| Output power The power that the device can produce. | 490 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 180 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 270 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 4 ms |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Audible alarm modes | Fault, Low battery alarm, Overload alarm |
| Auto-restart |
 |
| Power source type What the power source is. | AC |
| Detachable power cord |
 |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 5.6 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of batteries supported The number of batteries that can be used with the product. | 1 |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 8 h |
| Charging current | 0.7 A |
| Cold start |
|
| Design | |
| Form factor The shape or design of the product. | Wallmount |
| Built-in fan |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Control type The way in which the device is controlled. | Buttons |
| LED indicators |
|
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Sustainability certificates | CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 110 mm |
| Depth The distance from the front to the back of something. | 309 mm |
| Height The measurement of the product from head to foot or from base to top. | 90 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3 kg |
| SKU | 551271 |
| MPN | F10-850 |
| Brand | ION |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.ionups.com.au/ |
