Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

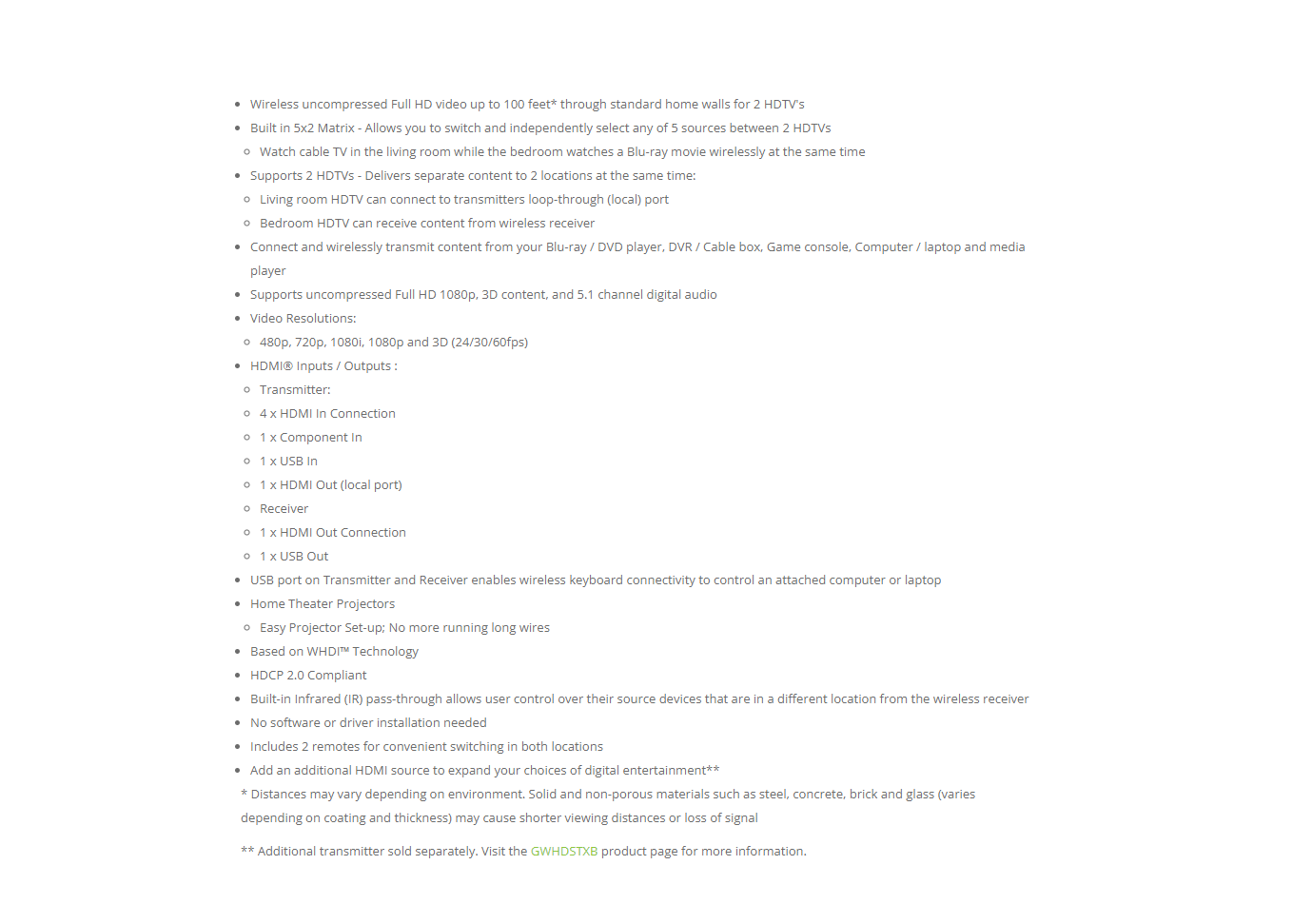

Transmitter: 4 x HDMI In Connection, 1 x Component In, 1 x USB In, 1 x HDMI Out (local port) - Receiver: 1 x HDMI Out Connection, 1 x USB Out
| Features | |

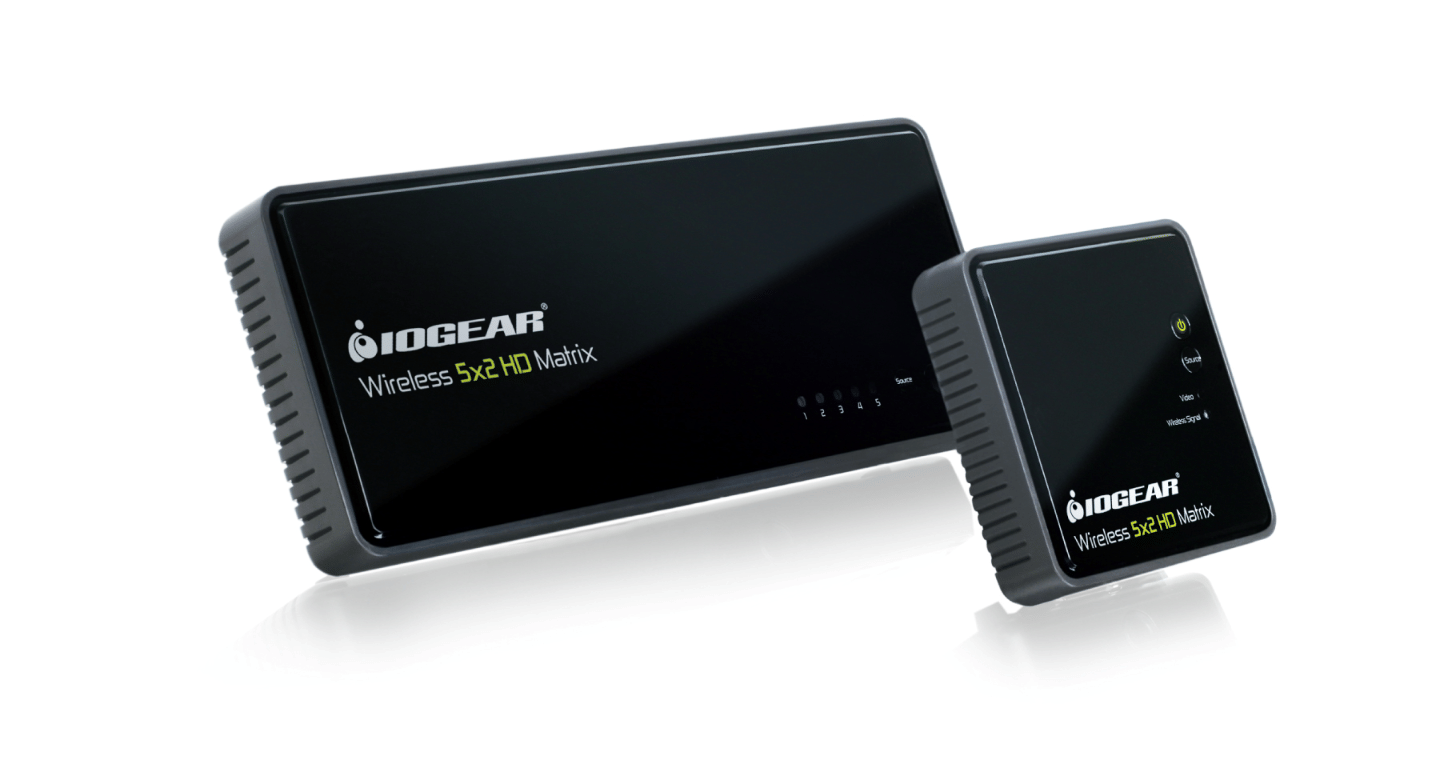

| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 30 m |
| LED indicators |
 |
| Supported video modes The video modes that can be displayed by the device. | 1080i,1080p,480p,576p,720p |
| Audio formats supported The audio formats which this device or software can read/use e.g. MP3, MP4. | AC3 |
| Remote control type | IR |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 128-bit AES |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| HDMI in Port (socket) for HDMI input. | 4 |
| Number of HDMI outputs Port (socket) for HDMI output. | 2 |
| USB ports quantity | 3 |
| Component video (YPbPr/YCbCr) in The number of sockets (ports) for RF (radio frequency) connections into the product. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage Defines the range of operating voltages available | 5 V |
| External power adapter |
|
| Current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 231.8 x 95.3 x 28.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 930 g |
| Packaging data | |
| Package dimensions (WxDxH) | 275 x 85 x 220 mm |
| Package weight Weight of the packaged product. | 1.34 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | HDMI |
| Warranty card |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Technical details | |
| Sustainability certificates | RoHS |
| SKU | 544133 |
| MPN | GWHDMS52 |
| Brand | IOGEAR |
| Product Condition | Brand New/Unused |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.iogear.com/ |
| Stock Availability | Available for Shipping |
