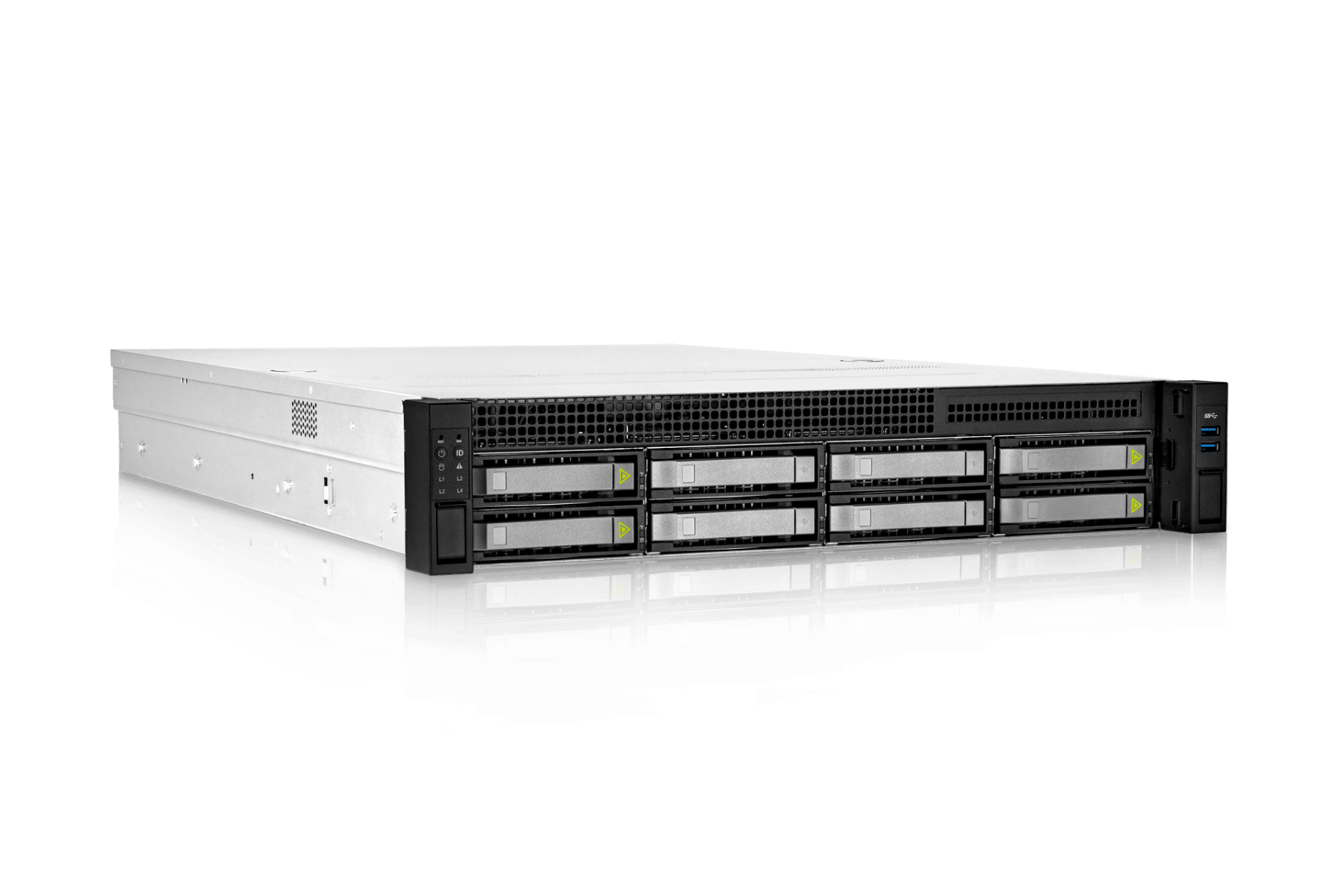

RM208/2U/BLACK/500W RED PSU/8x3.5" HOT SWAP BAYS
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | • External 2.5"/3.5" hot-swap trays x 8 (optional U.2 NVMe SSD trays x 4) • Internal 2.5" x 3 or x 4 (via slim ODD conversion tray) • Rear 2.5" screwless hot-swap HDD trays x 2 (supports SAS 12Gbps) |
| Power Supply | • Form factor: 80 Plus Gold • Watt: 500W |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED |
| Front Control Panel | Power on/off, reset, NMI, ID SW, USB3.0 x 2 |
| Backplane Type-1 | • Host: Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 • HDD: SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4 |
| Backplane Type-2 | • Host: Mini-SAS HD (SFF-8643) x 2 • HDD: SAS/SATA x 8 |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000RPM |
| Expansion Slot | Low-profile PCIe slots x 7 |
| Material | • Material: SGCC • Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 87.5mm (26" x 17.6" x 3.4") |
| Package Dimensions (DxWxH) | 905 x 610 x 228mm |
| Weight (Chassis Only) | • Net weight: 13.26kg • Gross weight: 16.56kg |
| Cubic Feet | 4.44 |
| Container Information | Single packing with pallets: • 20': 160pcs • 40': 336pcs • 40'HQ: 378pcs |
Backplane Specifications
| Backplane Type-1 | SAS3 & PCIe Gen4 hybrid backplane |
| Data Transfer Rate | SAS3 12Gb/s PCle Gen4 16GT/s |
| Dimension (W x H) | 404.5mm x 52mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 2, OCuLink (SFF-8611) x 4 |
| HDD Interface | SAS/SATA x 8 or SAS/SATA x 4 and NVMe SSD x 4 |
| Backplane Type-2 | SAS3 backplane |
| Data Transfer Rate | SAS3 12Gb/s |
| Dimension (W x H) | 404.5mm x 52mm |
| Backplane Type | Passive |
| Host Interface | Mini-SAS HD (SFF-8643) x 2 |
| HDD Interface | SAS/SATA x 8 |
| SKU | 830839 |
| MPN | 1BBVACAV000300 |
| Brand | Inwin |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.in-win.com/ |
| Stock Availability | Available for Shipping |
