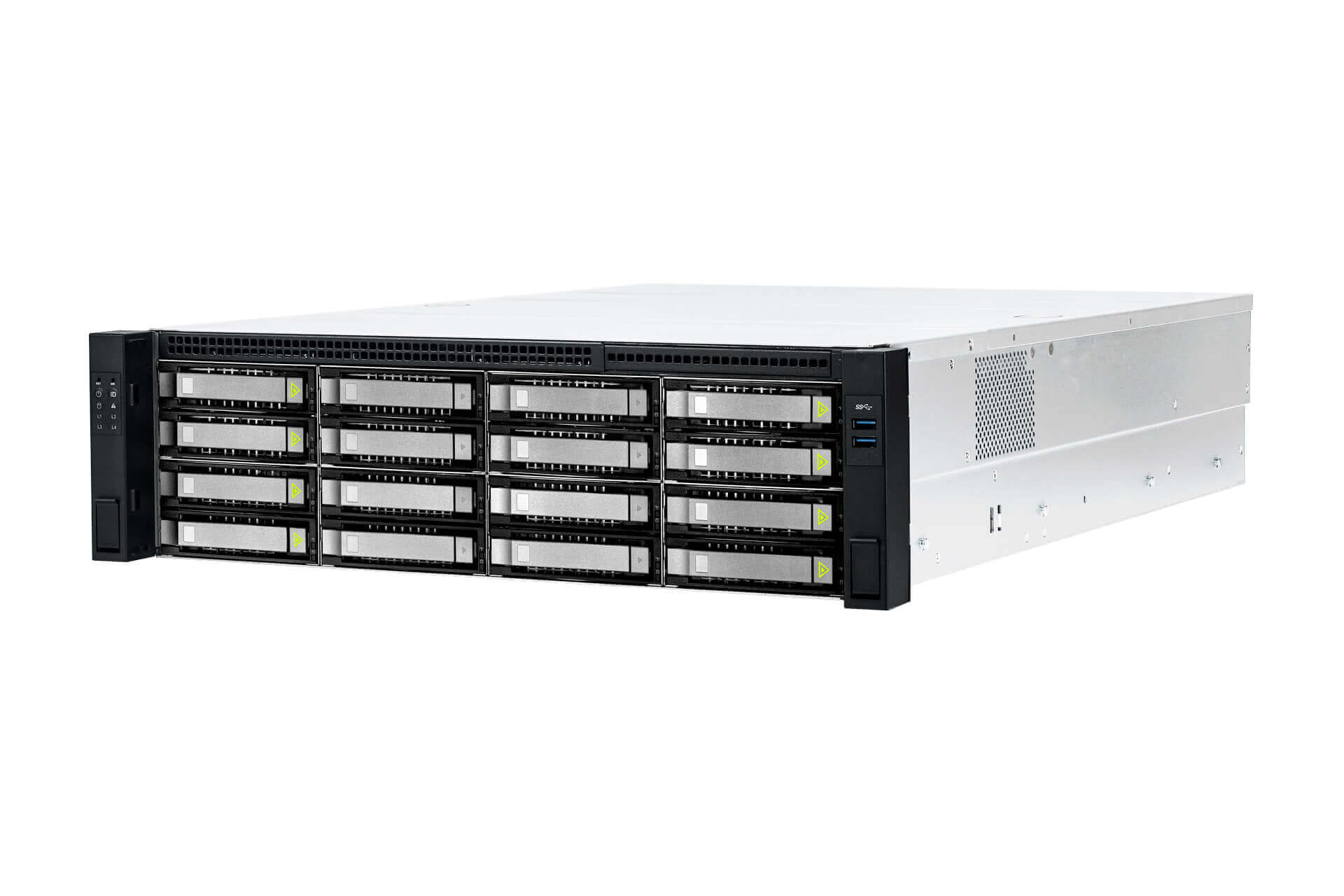

RS316/3RU/BLACK/800W 80+ PLATINUM RED PSUs/16x3.5" HOT SWAP MINI SAS HD
| Specification | |
|---|---|
| Industry Standard | Compatible with EIA-RS310D standard 19" cabinets |
| M/B Form Factor | ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13") |
| Drive Bay | External 2.5"/3.5" hot-swap trays x 16 (optional U.2 NVMe SSD trays x 8) Internal 2.5" SSDs x 3 (one for option) and slim ODD x 1 Rear 2.5" screwless hot-swap SSD trays x 2 (supports SAS 12Gbps) |
| Power Supply | Form factor: 80 Plus Platinum Watt: 800W Redundant |
| Indicators | Power LED, LAN1/LAN2/LAN3/LAN4 LED, system LED, ID LED, HDD LED |
| Front Control Panel | Power on/off, reset, NMI, ID SW, USB3.0 x 2 |
| Backplane Type-1 | Host: Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 |
| Backplane Type-2 | Host: Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 HDD: SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 |
| 12Gbps Expander Module | Supports broadcom SAS 35 x 36R expander |
| Cooling Fans | 80 x 38mm PWM hot-swap fans x 4, 12000RPM |
| Expansion Slot | Full-height PCIe slots x 7 |
| Material | Material: SGCC Thickness: 1.2mm |
| Rail Kit | Supports 28" tool-less & ball-bearing slide rails |
| Product Dimensions (DxWxH; Chassis Only) | 660 x 448 x 132.1mm (26" x 17.6" x 5.2") |
| Package Dimensions (DxWxH) | 845 x 595 x 267mm |
| Weight (Chassis Only) | Net weight: 17.63kg Gross weight: 21.03kg |
| Cubic Feet | 4.74 |
| Container Information | Single packing with pallets: 20': 140pcs 40': 322pcs 40'HQ: 368pcs |
Backplane Specifications
| Backplane Type-1 | SAS3 & PCIe Gen4 hybrid backplane |
| Data Transfer Rate | SAS3 12Gb/s PCle Gen4 16GT/s |
| Dimension (W x H) | 405mm x 106mm |
| Backplane Type | Active with expander onboard |
| Host Interface | Mini-SAS HD (SFF-8643) x 3, Slimline (SFF-8654) x 8 |
| HDD Interface | SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 |
| Backplane Type-2 | SAS3 & PCIe Gen4 hybrid backplane |
| Data Transfer Rate | SAS3 12Gb/s PCle Gen4 16GT/s |
| Dimension (W x H) | 405mm x 106mm |
| Backplane Type | Active with expander onboard |
| Host Interface | Mini-SAS HD (SFF-8643) x 3, OCuLink (SFF-8611) x 8 |
| HDD Interface | SAS/SATA x 16 or SAS/SATA x 8 and NVMe SSD x 8 |
* InWin NVMe backplane supports PCIe Gen4 data transfer speed, the actual speed will be determined by MB and HDD specifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.
* All components and optional parts are not included. In Win Development Inc. reserves the right to make final modifications.
| SKU | 813969 |
| MPN | IW-RS316-02M |
| Brand | Inwin |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | http://www.in-win.com/ |
| Stock Availability | Available for Shipping |
