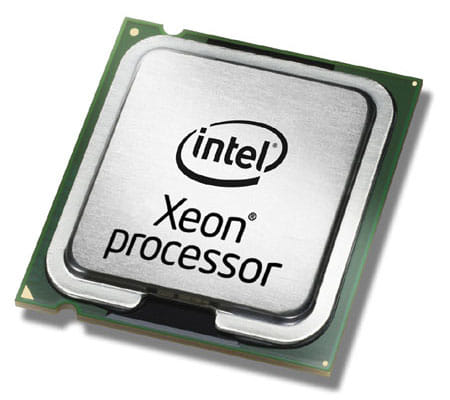

Intel xeon E5-2637V4, Intel xeon E5 v4, 3.5 GHz, LGA 2011-v3, Server/workstation, 14 nm, Intel
The powerful new Intel xeon processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
Performance
Built on 14 nm process technology, the Intel xeon processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel Transactional Synchronization Extensions (Intel TSx) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel Resource Director Technology (Intel RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
Performance
Built on 14 nm process technology, the Intel xeon processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel Transactional Synchronization Extensions (Intel TSx) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel Resource Director Technology (Intel RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Xeon® E5 v4 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3.5 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 2011-v3 |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor series | Intel Xeon E5-2600 v4 |
| Processor model The model number for the processor in a computer. | E5-2637V4 |
| Processor threads | 8 |
| System bus rate A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system. | 9.6 GT/s |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Box Plastic or metal shell/container for components. |
 |
| Stepping | R0 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 3.7 GHz |
| Bus type | QPI |
| Number of QPI links | 2 |
| Processor codename | Broadwell |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor code | SR2P3 |
| Processor ARK ID | 92983 |
| Memory | |
| Maximum internal memory supported by processor | 1536 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory channels | Quad-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Power | |
| Thermal Design Power (TDP) | 135 W |
| VID Voltage Range | 0 - 0 V |
| Features | |
| Execute Disable Bit |
|
| Idle States |
|
| Thermal Monitoring Technologies |
|
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Physical Address Extension (PAE) | 46 bit |
| CPU configuration (max) | 2 |
| Embedded options available |
|
| PCI Express CEM revision | 3.0 |
| Market segment | SRV |
| Harmonized System (HS) code | 8542310001 |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel® Identity Protection Technology (Intel® IPT) <b>Protect Your Identity and Business</b> Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. | 2.0 |
| Intel Flex Memory Access |
|
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Enhanced Intel SpeedStep Technology |
|
| Intel Trusted Execution Technology |
|
| Intel Enhanced Halt State |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel Demand Based Switching |
|
| Intel® Secure Key <b>Generate Cryptographic Security Protocols</b> Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security. |
|
| Intel TSX-NI |
|
| Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel. |
|
| Intel 64 |
|
| Intel Identity Protection Technology version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries. |
|
| Intel® vPro™ Platform Eligibility |
|
| Operational conditions | |
| Tcase | 75 °C |
| Technical details | |
| Bus bandwidth | 9.6 |
| Bus type units | GT/s |
| Launch date | Q1'16 |
| Processor cache | 15360 KB |
| Product type The sub-category of the product. | Processor |
| Status | Launched |
| Processor brand name | Intel Xeon |
| Last change | 63903513 |
| Product family | Intel Xeon Processor E5 v4 Family |
| Bus speed | 9.6 GT/s |
| Weight & dimensions | |
| Processor package size | 45 x 52.5 mm |
| Other features | |
| Compatibility The other products, software and hardware this product can be used with. | Intel Server System R1208WT2GSR Intel Server System R1208WTTGSR Intel Server System R1304WT2GSR Intel Server System R1304WTTGSR Intel Server System R2208WTTYSR Intel Server System R2208WT2YSR Intel Server System R2208WTTYC1R Intel Server System R2308WTTYSR Intel Server System R2312WTTYSR Intel Server System R2224WTTYSR Intel Server Board S2600CW2R Intel Server Board S2600CW2SR Intel Server Board S2600CWTR Intel Server Board S2600CWTSR Intel Server Board S2600KPR Intel Server Board S2600KPFR Intel Server Board S2600KPTR Intel Server Board S2600TPR Intel Server Board S2600TPFR Intel Server Board S2600WTTR Intel Server Board S2600WT2R Intel Server Board S2600WTTS1R Intel Compute Module HNS2600KPFR Intel Compute Module HNS2600KPR Intel Compute Module HNS2600TP24R Intel Compute Module HNS2600TPFR Intel Compute Module HNS2600TPR Intel Compute Module HNS2600TP24SR |
| Maximum internal memory The maximum amount of memory inside a product, usually measured in bytes e.g megabytes (MB) or gigabytes (GB). | 1572864 MB |
| SKU | 440870 |
| MPN | CM8066002041100 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| CPU Series | Intel Xeon |
| CPU Generation | N/A |
| CPU Socket | LGA 2011 |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.intel.com.au/ |
