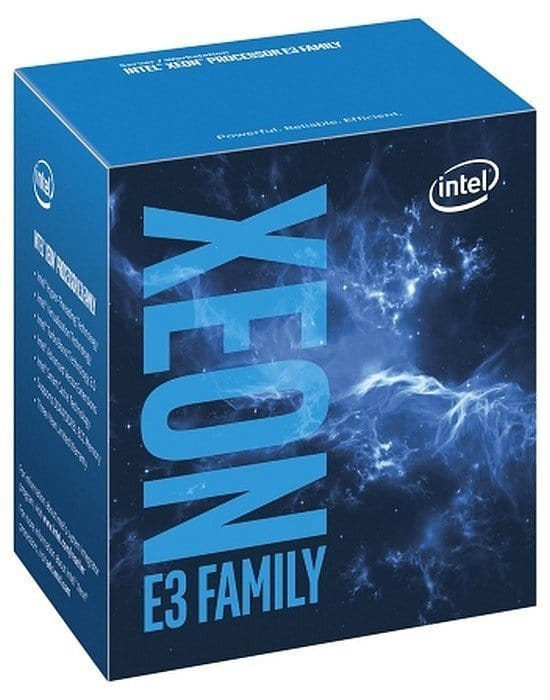

Intel xeon E3-1275V6, Intel xeon E3 v6, 3.8 GHz, LGA 1151 (Socket H4), Server/workstation, 14 nm, Intel
Powerful Delivery
Support greater HD and UHD video trans code performance with up to 18 AVC video trans codes per processor and up to 2 HEVC trans codes per processor.
Built for Professionals
Step up to the performance and visuals demanded by professional-grade CAD or media and entertainment applications.
Reliability for Small and Medium Businesses
No matter what the size of your business, the value of your data is enormous. Keep it accessible and better protected at all times with an affordable Intel xeon processor E3-1200 v6 product family-based server.
High Image Quality
Improve visual experiences with Intel Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.
Support greater HD and UHD video trans code performance with up to 18 AVC video trans codes per processor and up to 2 HEVC trans codes per processor.
Built for Professionals
Step up to the performance and visuals demanded by professional-grade CAD or media and entertainment applications.
Reliability for Small and Medium Businesses
No matter what the size of your business, the value of your data is enormous. Keep it accessible and better protected at all times with an affordable Intel xeon processor E3-1200 v6 product family-based server.
High Image Quality
Improve visual experiences with Intel Media Server Studio, providing state-of-the-art encoding features and flexible selection of media encode speed and image quality combinations.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Xeon® E3 v6 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 3.8 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 1151 (Socket H4) |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor model The model number for the processor in a computer. | E3-1275 v6 |
| Processor threads | 8 |
| System bus rate A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system. | 8 GT/s |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Box Plastic or metal shell/container for components. |
 |
| Stepping | B0 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.2 GHz |
| Bus type | DMI3 |
| Processor codename | Kaby Lake |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| Processor ARK ID | 97478 |
| Memory | |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| Memory channels | Dual-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Graphics | |
| On-board graphics adapter Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| On-board graphics adapter model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® HD Graphics P630 |
| Maximum on-board graphics adapter memory | 1.7 GB |
| On-board graphics adapter outputs supported | DVI,DisplayPort,Embedded DisplayPort (eDP),HDMI |
| On-board graphics adapter base frequency | 350 MHz |
| On-board graphics adapter dynamic frequency (max) | 1150 MHz |
| Number of displays supported (on-board graphics) The feature may not be available on all computing systems. Functionality, performance, and other benefits of this feature may vary depending on system configuration. | 3 |
| On-board graphics adapter 4K support |
|
| On-board graphics adapter DirectX version | 12.0 |
| On-board graphics adapter OpenGL version | 4.4 |
| On-board graphics adapter maximum resolution (DisplayPort) | 4096 x 2304 pixels |
| On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel) | 4096 x 2304 pixels |
| On-board graphics adapter maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics adapter refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 60 Hz |
| On-board graphics adapter refresh rate at maximum resolution (HDMI) | 24 Hz |
| On-board graphics adapter ID | 0x191D |
| Power | |
| Thermal Design Power (TDP) | 73 W |
| VID Voltage Range | 0.55 - 1.52 V |
| Features | |
| Execute Disable Bit |
|
| Idle States |
|
| Thermal Monitoring Technologies |
|
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16,1x8+2x4,2x8 |
| Supported instruction sets | AVX 2.0,SSE4.1,SSE4.2 |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available |
|
| PCI Express CEM revision | 3.0 |
| Harmonized System (HS) code | 8542310001 |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. | 2.0 |
| Intel® Quick Sync Video Technology <b>Create, Edit, and Share Video in a Flash</b> Intel® Quick Sync Video uses the dedicated media processing capabilities of Intel® Graphics Technology to make video encoding tasks—such as creating DVDs or Blu-ray discs, creating and editing 3D videos, converting 2D video files into 3D, and converting video for portable media players and social networking sites—faster and easier. |
|
| Intel® InTru™ 3D Technology Add a new dimension to your viewing experience. Now you can play games and watch your favorite 3D movies with Blu-ray Stereo 3D playback using passive or active shutter 3D glasses. InTru™ 3D technology by Intel in association with Dreamworks delivers it all in 1080p full high-definition resolution on your TV over HDMI 1.4. |
|
| Intel® Clear Video HD Technology (Intel® CVT HD) <b>See the World More Vividly</b> Intel® Clear Video HD Technology delivers cleaner, sharper images, more natural, accurate, and vivid colors. View images as they were meant to be seen on devices featuring Intel® Core™ processors with Intel® Graphics Technology. |
|
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Enhanced Intel SpeedStep Technology |
|
| Intel Trusted Execution Technology |
|
| Intel® Memory Protection Extensions (Intel® MPX) Intel® Memory Protection Extensions (Intel® MPX) provides a set of hardware features that can be used by software in conjunction with compiler changes to check that memory references intended at compile time do not become unsafe at runtime due to buffer overflow or underflow. |
|
| Intel Enhanced Halt State |
|
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel® Secure Key <b>Generate Cryptographic Security Protocols</b> Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security. |
|
| Intel TSX-NI |
|
| Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel. |
|
| Intel Clear Video Technology |
|
| Intel Software Guard Extensions (Intel SGX) |
|
| Intel 64 |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Conflict-Free processor "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries. |
|
| Intel® Optane™ Memory Ready |
|
| Intel® Boot Guard Intel® Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks. |
|
| Intel® vPro™ Platform Eligibility |
|
| Technical details | |
| Launch date | Q1'17 |
| Maximum resolution & refresh rate (DisplayPort) | 4096x2304@60Hz |
| Product type The sub-category of the product. | Processor |
| Status | Launched |
| Maximum memory | 64 GB |
| Bus speed | 8 GT/s |
| Maximum graphics adapter memory | 64 GB |
| Processor ID | 0x591D |
| Weight & dimensions | |
| Package width The distance from one side of the packaging to the other. | 70 mm |
| Package depth The distance from the front to the back of the packaging. | 116 mm |
| Package height The distance from the top to the bottom of the packaging. | 101 mm |
| Processor package size | 37.5 x 37.5 mm |
| Other features | |
| Graphics output | eDP/DP/HDMI/DVI |
| SKU | 441269 |
| MPN | BX80677E31275V6 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Product Use | General |
