Intel Xeon E-2414. Processor family: Intel Xeon E, Processor socket: LGA 1700, Processor manufacturer: Intel. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR5-SDRAM. Market segment: Server, Use conditions: Server/Enterprise, PCI Express configurations: 2x8+1x4, 1x16+1x4. Intel® Turbo Boost Technology 2.0 frequency: 4.5 GHz, Microprocessor PCIe Revision: Gen 5. Maximum internal memory: 128 GB
Processor
Processor manufacturer
The manufacturer that produced the processor.
Intel
Processor model
The model number for the processor in a computer.
E-2414
Processor base frequency
2.6 GHz
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Intel Xeon E
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
4
Processor socket
Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
LGA 1700
Processor threads
4
System bus rate
A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system.
16 GT/s
Processor operating modes
Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software.
64-bit
Performance cores
4
Processor boost frequency
The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.
4.5 GHz
Processor cache
12 MB
Thermal Design Power (TDP)
55 W

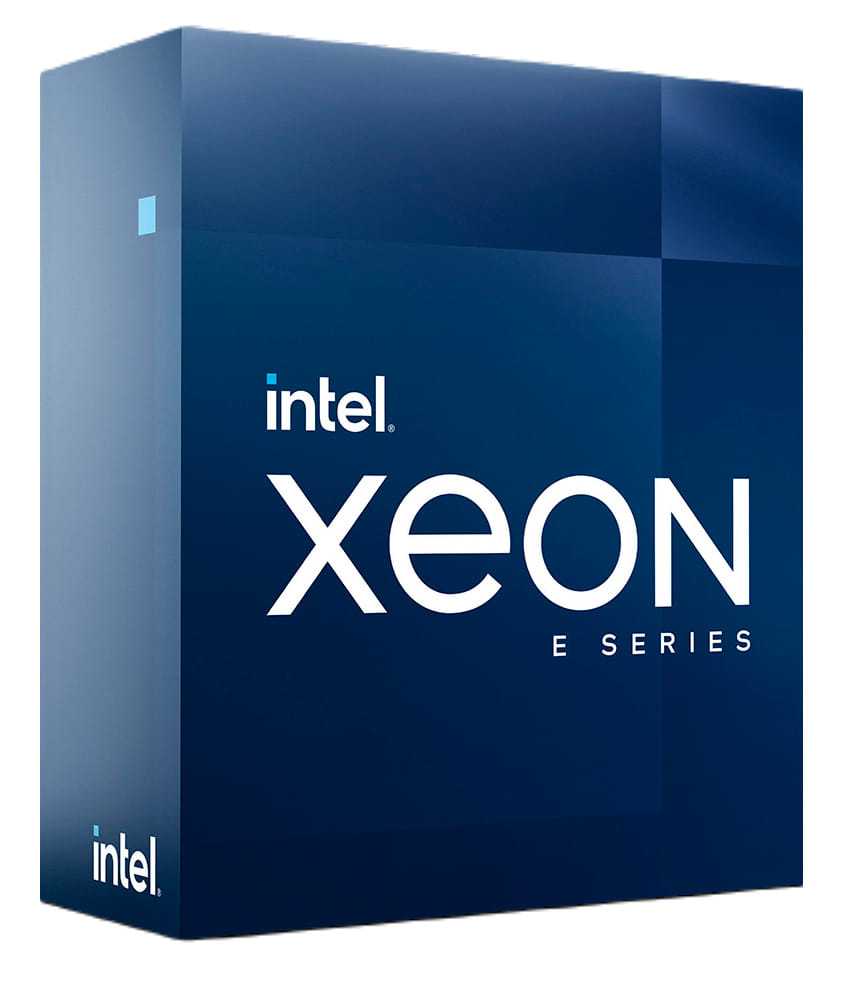

Box
Plastic or metal shell/container for components.
Stepping
B0
Maximum number of DMI lanes
8
Processor codename
Raptor Lake
Processor ARK ID
236193
Memory
Maximum internal memory supported by processor
128 GB
Memory types supported by processor
DDR5-SDRAM
Memory channels
Dual-channel
ECC
ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Graphics
On-board graphics card
Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card
On-board graphics card model
"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.
Not available
Discrete graphics card model
A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.
Not available
Features
Execute Disable Bit
Idle States
Thermal Monitoring Technologies
Market segment
Server
Use conditions
Server/Enterprise
Maximum number of PCI Express lanes
20
PCI Express slots version
5.0
PCI Express configurations
2x8+1x4, 1x16+1x4
Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2
Scalability
1S
CPU configuration (max)
1
Embedded options available
Export Control Classification Number (ECCN)
5A992C
Commodity Classification Automated Tracking System (CCATS)
740.17B1
Processor special features
Intel® Hyper Threading Technology (Intel® HT Technology)
<b>Improved Performance for Threaded Software</b>
Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth.
Intel® Turbo Boost Technology
<b>Higher Performance When You Need It Most</b>
Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration.
2.0
Intel® AES New Instructions (Intel® AES-NI)
<b>Added Security with Faster Data Encryption</b>
The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants.
Enhanced Intel SpeedStep Technology
Intel Trusted Execution Technology
Intel® Turbo Boost Technology 2.0 frequency
4.5 GHz
Intel® Transactional Synchronization Extensions
Intel® Total Memory Encryption
Intel VT-x with Extended Page Tables (EPT)
Intel® Secure Key
<b>Generate Cryptographic Security Protocols</b>
Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security.
Intel® OS Guard
<b>Protect Your Operating Environment</b>
Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel.
Intel 64
Intel Virtualization Technology (VT-x)
<b>Simplify Virtualization and Reduce Overheads</b>
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology for Directed I/O (VT-d)
<b>Simplify Virtualization and Reduce Overheads</b>
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Turbo Boost Max Technology 3.0
Intel® Boot Guard
Intel® Device Protection Technology with Boot Guard helps protect the system’s pre-OS environment from viruses and malicious software attacks.
Mode-based Execute Control (MBE)
Intel® Optane™ DC Persistent Memory Supported
Intel® Virtualization Technology with Redirect Protection (VT-rp)
Microprocessor PCIe Revision
Gen 5
Intel® Total Memory Encryption - Multi Key
Operational conditions
Tjunction
100 °C
Logistics data
Harmonized System (HS) code
8542310001
Technical details
Launch date
Q4'23
Status
Launched
Servicing status
Baseline Servicing
Other features
Maximum internal memory
The maximum internal memory which is available in the product.
