Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store

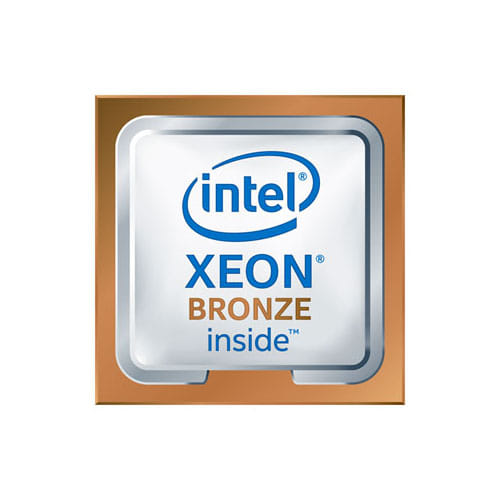

Intel Xeon 3104, Intel Xeon , LGA 3647 (Socket P), 14 nm, Intel, 1.7 GHz, 64 bit
Execute Disable Bit is a hardware based security feature that can reduce exposure to viruses and malicious code attacks and prevent harmful software from executing and propagating on the server or network.
Intel AES New Instructions (Intel AES NI) are a set of instructions that enable fast and secure data encryption and decryption. AES NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
Intel AES New Instructions (Intel AES NI) are a set of instructions that enable fast and secure data encryption and decryption. AES NI are valuable for a wide range of cryptographic applications, for example: applications that perform bulk encryption/decryption, authentication, random number generation, and authenticated encryption.
Enhanced Intel SpeedStep Technology is an advanced means of enabling high performance while meeting the power conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. Enhanced Intel SpeedStep Technology builds upon that architecture using design strategies such as Separation between Voltage and Frequency Changes, and Clock Partitioning and Recovery.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor model The model number for the processor in a computer. | 3104 |
| Processor base frequency | 1.7 GHz |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Xeon® |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 6 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 3647 (Socket P) |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor threads | 6 |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Processor cache | 8.25 MB |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 85 W |
| Box Plastic or metal shell/container for components. |
 |
| Cooler included The device comes with an integrated cooler. |
|
| Stepping | U0 |
| Processor codename | Skylake |
| Processor code | SR3GM |
| Processor ARK ID | 123546 |
| Memory | |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory channels | Hexa-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
 |
| Features | |
| Execute Disable Bit |
|
| Market segment | Server |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Scalability | 2S |
| Embedded options available |
|
| PCI Express CEM revision | 3.0 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. |
|
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Enhanced Intel SpeedStep Technology |
|
| Intel Trusted Execution Technology |
|
| Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. |
|
| Intel® Transactional Synchronization Extensions |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel TSX-NI |
|
| Intel 64 |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel TSX-NI version | 1.00 |
| Conflict-Free processor "Conflict free" means "DRC conflict free", which is defined by the U.S. Securities and Exchange Commission rules to mean products that do not contain conflict minerals (tin, tantalum, tungsten and/or gold) that directly or indirectly finance or benefit armed groups in the Democratic Republic of the Congo (DRC) or adjoining countries. |
|
| Intel Turbo Boost Max Technology 3.0 |
|
| Intel® Optane™ Memory Ready |
|
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Intel® Volume Management Device (VMD) |
|
| Mode-based Execute Control (MBE) |
|
| Intel® vPro™ Platform Eligibility |
|
| Operational conditions | |
| Tcase | 78 °C |
| Technical details | |
| Launch date | Q3'17 |
| Processor cache | 8448 KB |
| Product type The sub-category of the product. | Processor |
| Status | Launched |
| Maximum memory | 768 GB |
| Processor brand name | Intel Xeon Bronze Intel Xeon Bronze Processor |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Last change | 63903513 |
| Product family | Intel Xeon Processors |
| Intel® Speed Shift Technology version | 1.00 |
| Intel® Volume Management Device (VMD) version | 1.00 |
| Memory speed (max) | 2133 MHz |
| Mode-based Execute Control (MBE) version | 1.00 |
| Number of UPI links | 2 |
| Logistics data | |
| Harmonized System (HS) code | 85423119 |
| Packaging data | |
| Package type The type of product package e.g. box. | Retail box |
| Weight & dimensions | |
| Processor package size | 76mm x 56.5mm |
| Other features | |
| Maximum internal memory The maximum amount of memory inside a product, usually measured in bytes e.g megabytes (MB) or gigabytes (GB). | 786432 MB |
| SKU | 750527 |
| MPN | BX806733104 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| CPU Series | Intel Xeon |
| CPU Generation | Intel Xeon Bronze |
| CPU Socket | LGA 3647 |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
