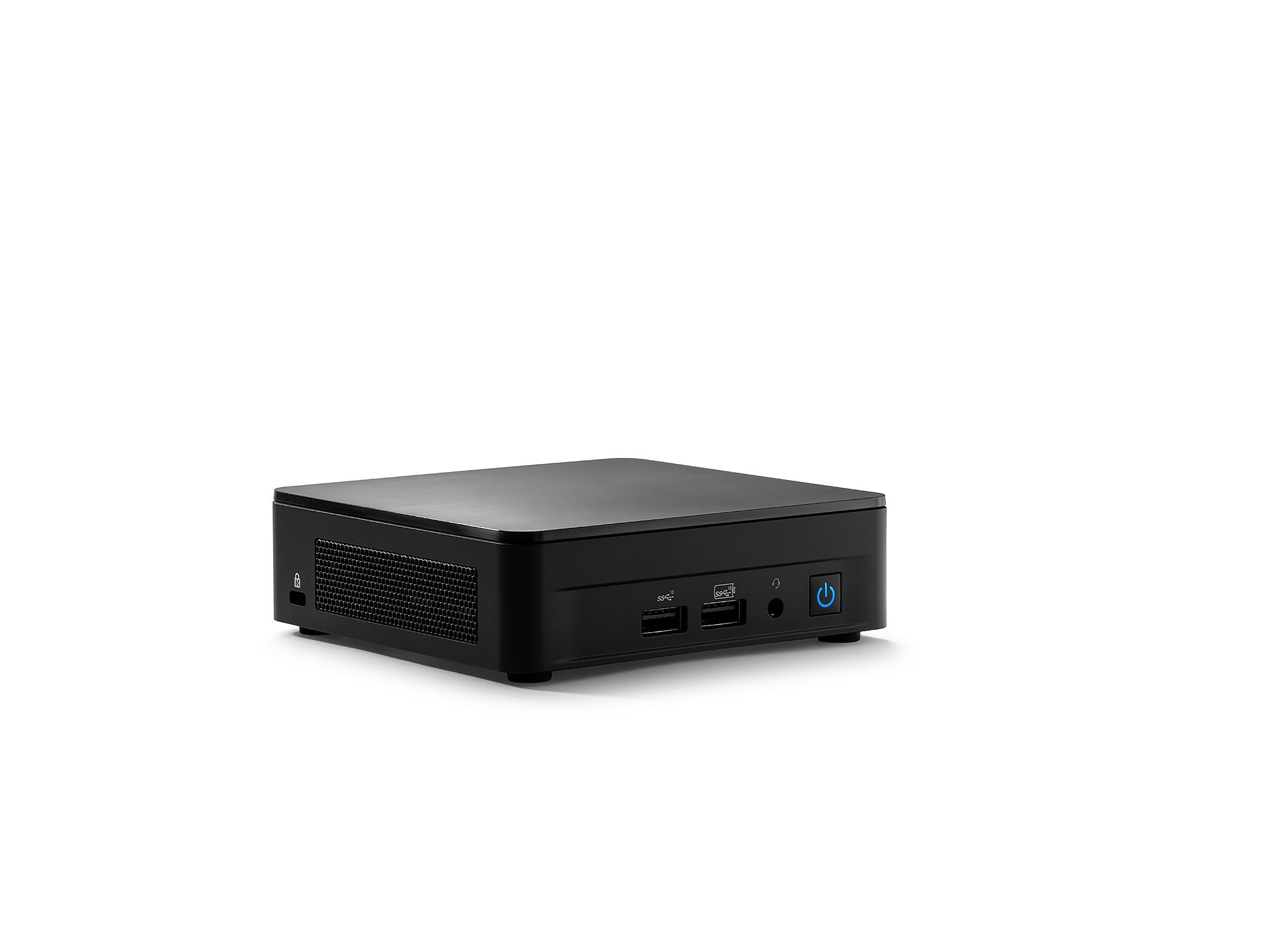

Intel NUC 12 Pro Kit NUC12WSKv7, UCFF, Mini PC barebone, DDR4-SDRAM, M.2, Wi-Fi 6E (802.11ax), 120 W
Intel Trusted Execution Technology Intel Trusted Execution Technology for safer computing is a versatile set of hardware extensions to Intel processors and chipsets that enhance the digital office platform with security capabilities such as measured launch and protected execution. It enables an environment where applications can run within their own space, protected from all other software on the system.
Intel Virtualization Technology for Directed I/O (VT-d) Intel Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel Virtualization Technology (VT-x) Intel Virtualization Technology (VT-x) allows one hardware platform to function as multiple
Processor
Built-in processor
Whether or not a processor is built into the device.
Processor manufacturer
The manufacturer that produced the processor.
Intel
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Intel® Core™ i7
Processor generation
12th gen Intel® Core™ i7
Processor model
The model number for the processor in a computer.
i7-1270P
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
12
Processor threads
16
Processor boost frequency
The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.
4.8 GHz
Processor cache
18 MB
Thermal Design Power (TDP)
35 W
CPU configuration (max)
1
Memory
Memory slots type
A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.
SO-DIMM
Number of memory slots
2
Number of DIMM slots
The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share.
2
Maximum internal memory
The maximum internal memory which is available in the product.
64 GB
Supported memory clock speeds
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
3200 MHz
Supported memory types
Types of memory which can be used with the product.
DDR4-SDRAM
Memory channels
Dual-channel
Memory voltage
The voltage (V) of the memory in the device.
1.2 V
ECC
ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Storage
Supported storage drive types
The type of storage drives the device is compatible with.
SSD
Storage drive sizes supported
The sizes of storage drives that can be used with the product.
M.2
SSD form factor
The size of the solid-state drive, given in inches
M.2
Storage drive interface
Where the storage device links with other parts of the product, or an external device.
M.2
NVMe
NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
Number of storage drives supported
How many storage drives can be fit into the product at once.
2
Card reader integrated
The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Graphics
On-board graphics card
Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family
Intel
On-board graphics card model
"Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.
Intel Iris Xe Graphics
Maximum resolution
The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.
7680 x 4320 pixels
Number of displays supported
The number of displays that can be used with this product.
4
Audio
Built-in speaker(s)
The device contains speaker(s) to produce sound.
Network
Top Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 6E (802.11ax)
Wi-Fi standards
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
LAN controller
Intel I225-LM
Bluetooth
Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version
The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).
5.2
Ports & interfaces
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
HDMI version
2.0b
DisplayPorts quantity
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.
1
Combo headphone/mic port
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Serial port via internal header
M.2 card slot (wireless)
2230 (E-key) (E)
USB ports quantity
4
M.2 card slot (storage)
2280 NVMe (M); 2242 SATA (B)
Thunderbolt 4 ports quantity
2
DC-in jack
The socket/plug where the DC electricity supply connects to the device.
Expansion slots
PCI Express slots version
4.0
Design
Chassis type
The type of rigid framework onto which is the hosuing for device components.
UCFF
Product colour
The colour e.g. red, blue, green, black, white.
Black
Cooling type
The method used to cool the device or to cool the air around the device.
Active
On/off switch
The button which is pressed to switch the device on or off.
LED indicators
Cable lock slot
Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type
Kensington
Product type
The sub-category of the product.
Mini PC barebone
Status
Launched
Performance
Motherboard form factor
Design of the motherboard (ATX, BTX etc).
UCFF
Number of processors supported
The quantity of processors which can be used by the product.
1
BIOS type
The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.
EEPROM
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version
2.0
Audio output channels
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 channels
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 10 IoT Enterprise, Windows 10 x64, Windows 11 x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Compatible operating systems
List of desktop operating systems tested as compatible with this product.
Windows 10 IoT Enterprise*|Linux*
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
Commodity Classification Automated Tracking System (CCATS)
G157815L2
Harmonized System (HS) code
8471500150
Export Control Classification Number (ECCN)
5A992C
Processor special features
Intel® vPro™ Platform Eligibility
Intel® High Definition Audio (Intel® HD Audio)
<b>Integrated Audio for Today and Tomorrow</b>
A new specification for integrated audio, Intel® High Definition Audio (Intel® HD Audio) delivers the features and high-end performance of an add-in audio card while playing back more channels with improved quality. Intel HD Audio provides high-quality multi-channel audio experiences with new encoding and decoding algorithms to enhance the listening experience.
Embedded options available
Intel® AES New Instructions (Intel® AES-NI)
<b>Added Security with Faster Data Encryption</b>
The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants.
Intel Virtualization Technology for Directed I/O (VT-d)
<b>Simplify Virtualization and Reduce Overheads</b>
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel VT-x with Extended Page Tables (EPT)
Intel Flex Memory Access
Intel Trusted Execution Technology
Execute Disable Bit
Intel ME Firmware Version
16
Intel Stable Image Platform Program (SIPP)
Intel® Optane™ Memory Ready
Intel Virtualization Technology (VT-x)
<b>Simplify Virtualization and Reduce Overheads</b>
Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Technical details
Sustainability certificates
China Energy Label (CEL), ENERGY STAR, ErP, REACH, RoHS
Power
Power supply type
The type of power supply which this product uses.
External AC adapter
Power supply
The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.
120 W
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Weight & dimensions
Width
The measurement or extent of something from side to side.
117 mm
Depth
The distance from the front to the back of something.
112 mm
Height
The measurement of the product from head to foot or from base to top.
37 mm
Packaging content
Power cord included
Other features
Launch date
Q3'22
Additional headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
