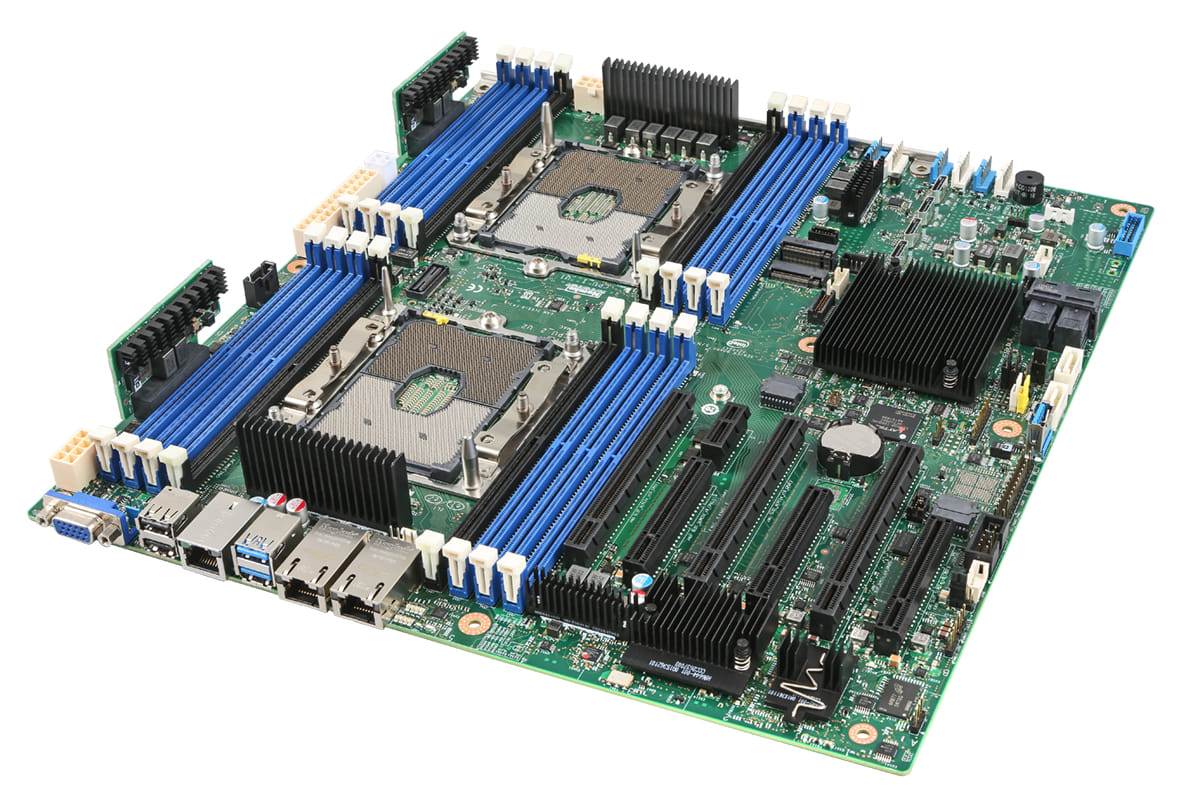

Intel S2600STBR, Intel C624
| Processor | |
| Number of QPI links | 2 |
| CPU configuration (max) | 2 |
| Maximum number of PCI Express lanes | 96 |
| ECC supported by processor |
 |
| Memory | |
| Number of DIMM slots The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share. | 16 |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
|
| Graphics | |
| On-board graphics adapter Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
 |
| Graphics output | VGA |
| Internal I/O | |
| Number of SATA connectors | 12 |
| Total number of SATA connectors | 12 |
| Rear panel I/O ports | |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Features | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel® C624 |
| Rack-Friendly board |
|
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Rack or Pedestal |
| Intel Node Manager |
|
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | VMware*, Windows Server 2019*, Windows Server 2016*, Red Hat Enterprise Linux 7.6*, Red Hat Enterprise Linux 7.5*, SUSE Linux Enterprise Server 15*, SUSE Linux Enterprise Server 12 SP4*, Ubuntu* |
| Harmonized System (HS) code | 8473301180 |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots Slots in the computer for PCI Express x8 (Gen 3.x), which is a high-speed serial computer expansion bus standard with 8 pins. | 3 |
| PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard. | 3 |
| PCI Express CEM revision | 3.0 |
| PCI Express OCuLink connectors (NVMe support) | 4 |
| Processor special features | |
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Intel Trusted Execution Technology |
|
| Intel Remote Management Module Support |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel® Optane™ Memory Ready |
|
| Integrated systems available |
|
| Embedded options available |
|
| Technical details | |
| Launch date | Q2'19 |
| Product type The sub-category of the product. | Server/Workstation Board |
| Status | Launched |
| USB ports quantity | 7 |
| Supported RAID configuration | SW RAID 0/1/10 (5 optional) |
| Additional information URL | https://www.intel.com/content/www/us/en/products/servers/server-boards/server-board-s2600st.html |
| Expected discontinuance date | 2023 |
| Extended warranty available for purchase (select countries) |
|
| Last order date | 2019-08-03 05:00:37 |
| Target market | Small and Medium Business |
| Form factor The shape or design of the product. | SSI EEB (12 x 13 in) |
| SKU | 427301 |
| MPN | S2600STBR |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
| Stock Availability | Available for Shipping |
