Intel EXPI9301CTBLK. Connectivity technology: Wired, Host interface: PCI Express. Maximum data transfer rate: 1000 Mbit/s

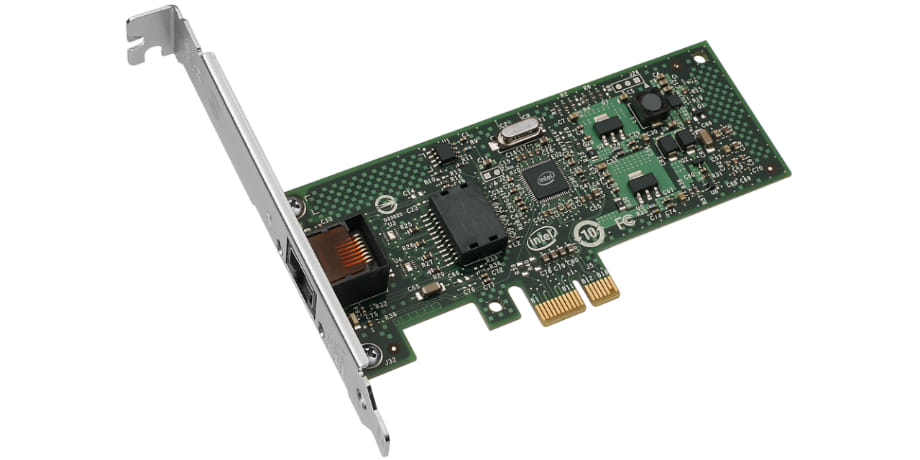

For PCs with PCI Express (PCIe*) slots, the Intel Gigabit CT Desktop Adapter offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10, 100, or 1000 Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI Express input/output (I/O) bus to provide connectivity you can count on. Based on the low-power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a low-cost, low-power, compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry-level server adapter as well.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| LAN controller | Intel® 82574L |
| Design | |
| Certification | FCC B, UL, CE |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.9 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 2000/XP/Vista/Server 2003/Server 2008, Linux, DOS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 55.3 mm |
| Depth The distance from the front to the back of something. | 119.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Other features | |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | 802.3z |
| Cable type Type of cable e.g. electicity cable, optical cable. | Category-5 up to 100m |
| Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. | 10/100/1000 Mbit/s |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| Low halogen options available |
 |
| Interface type | PCIe v1.1 (2.5 GT/s) |
| Born on date | Q3'08 |
| Halogen-free |
|
| Launch date | Q3'08 |
| Market segment | DT |
| Network interface card cable medium | Copper |
| Network interface card type | Desktop |
| Product brief URL | http://www.intel.com/Assets/PDF/prodbrief/319831.pdf |
| Product type The sub-category of the product. | Network Interface Card |
| Status | Launched |
| Thermal Design Power (TDP) | 1.9 W |
| Number of QPI links | Single |
| Last change | 63903513 |
| Ethernet adapter ARK ID | 50395 |
| Harmonized System (HS) code | 8517620090 |
| Controller type | Intel 82574L |
| Cabling type | Category-5 up to 100m |
| Bracket height | Low Profile & Full Height |
| Product family | Intel Gigabit desktop adapter |
| Product series | Intel Gigabit CT |
| Product codename | Shelter Island |
| SKU | 334677 |
| MPN | EXPI9301CTBLK |
| Brand | Intel |
