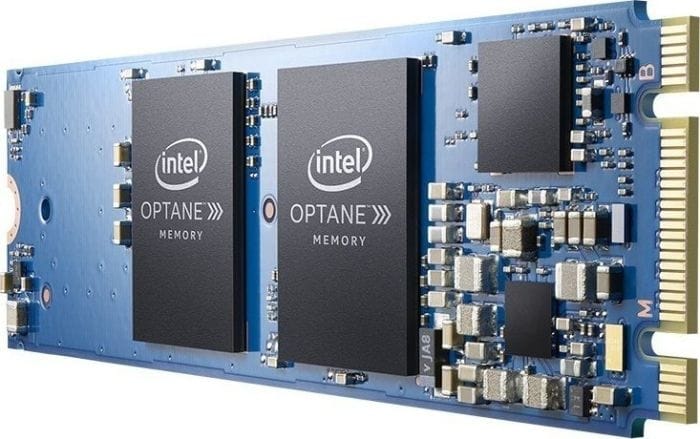

Intel Optane Memory 16GB M10 NVMe M.2 2280 PCIe SSD - up to 900 MB/s Read / 150 MB/s Write - 3D XPoint - PCIe NVMe 3.0 - 1.6 Million Hours MTBF
| Features | |
| NVMe version | 3.0 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 16 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D Xpoint |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC/notebook |
| Hardware encryption |
 |
| Read speed The speed at which a device can read data. | 900 MB/s |
| Write speed The speed at which a device can write data. | 150 MB/s |
| Random read (8KB) | 190000 IOPS |
| Random write (8KB) | 35000 IOPS |
| Random read (100% span) | 190000 |
| Random write (100% span) | 35000 |
| Read latency | 8 µs |
| Write latency | 30 µs |
| Lithography | 3D XPoint |
| End-to-End Data Protection |
|
| SSD temperature monitoring |
|
| Temperature monitoring and logging |
|
| Uncorrectable Bit Error Rate (UBER) | <1 sector per 10^15 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1600000 h |
| TBW rating | 365 |
| Market segment | MBL |
| SSD ARK ID | 135581 |
| Harmonized System (HS) code | 8471706000 |
| Power | |
| Power consumption (read) | 2 W |
| Power consumption (write) | 2 W |
| Power consumption (idle) | 0.008 W |
| Brand-specific features | |
| Intel® Rapid Start Technology <b>Get Up and Running in Seconds</b> Stop waiting for your PC to wake up, and get a computing experience that is instantly on and ready to go with Intel® Rapid Start Technology. This technology saves a snapshot of your activity on the SSD, preparing the system with previously saved active memory pages so that you can resume your work, Internet activity, or paused movie right where you left off. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 85 °C |
| Maximum operating temperature | 85 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 3.13 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1000 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 1000 G |
| Operating / non-operating shock | 1000 G/0.5msec |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 22 mm |
| Height The measurement of the product from head to foot or from base to top. | 80 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10 g |
| Other features | |
| Born on date | Q1'18 |
| Drive capacity | 16 |
| Launch date | Q1'18 |
| Random write (8GB span) | 35000 |
| SSD power consumption (idle) | L1.2 : 8mW |
| SSD weight | < 10 g |
| Sequential reading | 900 MB/s |
| Sequential writing speed | 150 MB/s |
| Status | Launched |
| Random read (8GB span) | 190000 |
| Last change | 56134330 |
| Intel Rapid Start Technology version | 1.00 |
| Product family | Intel® Optane™ Memory |
| Product series | Intel® Optane™ Memory M10 Series |
| Product codename | Stony Beach |
| SKU | 296191 |
| MPN | MEMPEK1J016GA01 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
