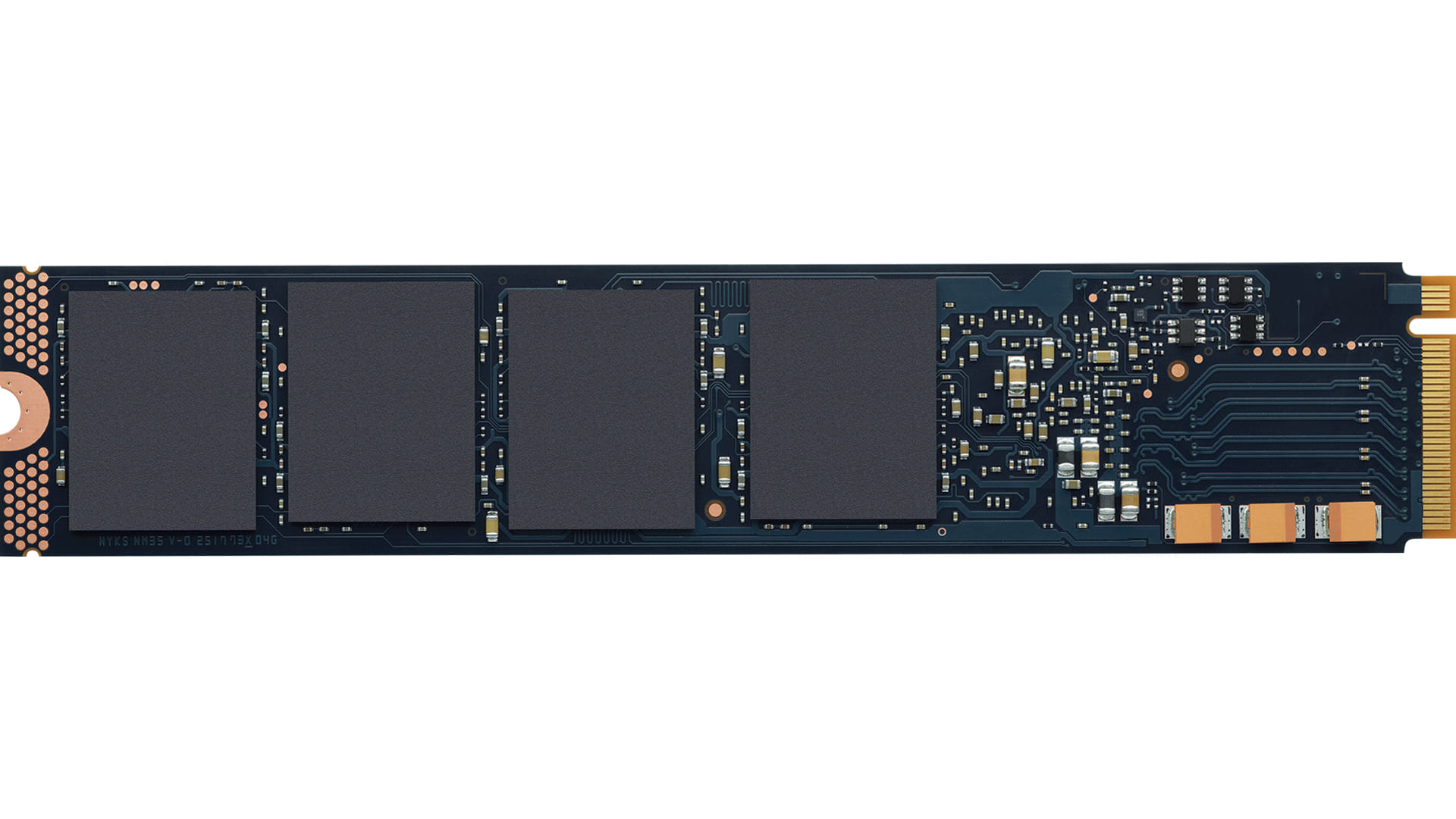

Intel Optane SSDPEL1K200GA01, 200 GB, M.2
Enhanced Power Loss Data Protection
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
Enhanced Power Loss Data Protection prepares the SSD for unexpected system power loss by minimizing data in transition in temporary buffers, and uses on-board power-loss protection capacitance to provide enough energy for the SSD firmware to move data from the transfer buffer and other temporary buffers to the NAND, thus protecting system and user data.
Hardware Encryption
Hardware encryption is data encryption done at the drive level. This is used to ensure that the data stored on the drive is secured from unwanted intrusion.
High Endurance Technology (HET)
High Endurance Technology (HET) in SSD's combines Intel NAND Flash Memory silicon enhancements and SSD system management techniques to help extend the endurance of the SSD. Endurance is defined as the amount of data that can be written to an SSD during its lifetime.
Temperature Monitoring and Logging
Temperature Monitoring and Logging uses an internal temperature sensor to monitor and log airflow and device internal temperature. The logged results can be accessed using the SMART command.
End-to-End Data Protection
End-to-End Data Protection ensures integrity of stored data from the computer to the SSD and back.
| Features | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 200 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D XPoint |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Hardware encryption |
|
| Random read (100% span) | 550000 IOPS |
| Random write (100% span) | 400000 IOPS |
| Read latency | 10 µs |
| Write latency | 12 µs |
| End-to-End Data Protection |
|
| Enhanced Power Loss Data Protection technology |
|
| SSD temperature monitoring |
|
| Temperature monitoring and logging |
|
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| Market segment | Server |
| SSD ARK ID | 149364 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G149950 |
| Power | |
| Power consumption (read) | 9 W |
| Power consumption (write) | 9 W |
| Power consumption (idle) | 3 W |
| Brand-specific features | |
| Intel® Optane™ |
|
| Intel High Endurance Technology (HET) |
|
| Intel® Rapid Start Technology <b>Get Up and Running in Seconds</b> Stop waiting for your PC to wake up, and get a computing experience that is instantly on and ready to go with Intel® Rapid Start Technology. This technology saves a snapshot of your activity on the SSD, preparing the system with previously saved active memory pages so that you can resume your work, Internet activity, or paused movie right where you left off. |
 |
| Intel® Remote Secure Erase |
|
| Intel® Smart Response Technology <b>Fast Access to Frequently Used Applications</b> Intel® Smart Response Technology enables a high-performance, cost-effective storage solution using either a dual solid-state and hard drive or a solid state hybrid drive (SSHD). By recognizing which data and applications are used most, Intel Smart Response Technology boosts hard drive performance so that you can create, work, and play faster than ever. |
|
| Intel Smart Response Technology version | 0.00 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 3.13 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1000 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 1000 G |
| Operating / non-operating shock | 1000 G/0.5 msec |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 110 mm |
| Depth The distance from the front to the back of something. | 22 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10 g |
| Logistics data | |
| Harmonized System (HS) code | 84717070 |
| Other features | |
| Power consumption (active) | 9 W |
| Drive capacity | 200 GB |
| Launch date | Q1'19 |
| SSD endurance rating | 21.9 PBW |
| SSD hardware encryption | AES 256 bit |
| SSD power consumption (active) | 9 W |
| SSD power consumption (idle) | 3 W |
| SSD shock | 1000 G/0.5 msec |
| Sequential reading | 2200 MB/s |
| Sequential writing speed | 2000 MB/s |
| Status | Launched |
| Last change | 63903513 |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Optane DC SSD |
| Intel Rapid Start Technology version | 0.00 |
| Remote Secure Erase (RSE) technology version | 0.00 |
| Product family | Data center SSD |
| Product series | Intel® Optane™ SSD DC P4801X Series |
| Product codename | Cold Stream |
| SKU | 750746 |
| MPN | SSDPEL1K200GA01 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Drive Form Factor | M.2 |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
