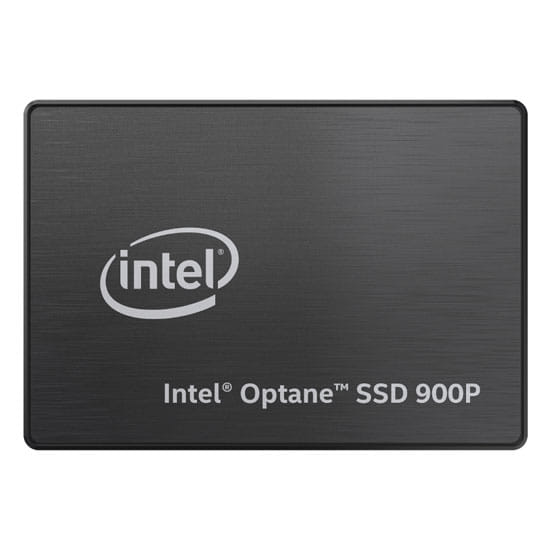

Intel SSDPE21D280GASM, 280 GB, U.2
Fast Load Times
With the unprecedented level of realism in Star Citizen*, you
With the unprecedented level of realism in Star Citizen*, you
| Features | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 256-bit AES |
| SSD form factor The size of the solid-state drive, given in inches | U.2 |
| SSD capacity The Solid State Drive's data storage capacity. | 280 GB |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | PCI Express 3.0 |
| Memory type Type of memory in the device e.g. DDR3, SRAM (Static RAM). | 3D XPoint |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Component for What this product is used as a part of (component for). | PC |
| Hardware encryption |
|
| Random read (100% span) | 550000 IOPS |
| Random write (100% span) | 500000 IOPS |
| Sequential read speed (ATTO) | 2500 MB/s |
| Sequential write speed (ATTO) | 2000 MB/s |
| Read latency | 10 µs |
| Write latency | 10 µs |
| Lithography | 20 nm |
| Enhanced Power Loss Data Protection technology |
 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 1600000 h |
| Market segment | Mobile |
| SSD ARK ID | 123623 |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G149950 |
| Power | |
| Power consumption (read) | 14 W |
| Power consumption (write) | 14 W |
| Power consumption (idle) | 5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Maximum operating temperature | 70 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 2.17 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 3.13 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 1000 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 1000 G |
| Operating / non-operating shock | 1,000 G (0.5 ms) |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 140 g |
| Logistics data | |
| Harmonized System (HS) code | 8523510000 |
| Other features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power consumption (active) | 14 W |
| Drive capacity | 280 GB |
| Launch date | Q4'17 |
| Product brief URL | https://www.intel.com/content/www/us/en/solid-state-drives/optane-ssd-900p-brief.html |
| Random write (8GB span) | 500000 IOPS |
| SSD endurance rating | 5.11 PB Written |
| SSD hardware encryption | AES 256 bit |
| SSD power consumption (active) | 14W |
| SSD power consumption (idle) | 5W |
| SSD shock | 1,000 G (0.5 ms) |
| Sequential reading | 2500 MB/s |
| Sequential writing speed | 2000 MB/s |
| Status | Launched |
| Random read (8GB span) | 550000 IOPS |
| Last change | 63903513 |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Optane SSD 9 |
| Product family | Enthusiast SSDs |
| Product series | Intel® Optane™ SSD 900P Series |
| Product codename | Mansion Beach |
| SKU | 750713 |
| MPN | SSDPE21D280GASM |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 2.5" |
| Connection Interface | PCIe Gen 3 NVMe M.2 |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.intel.com.au/ |
