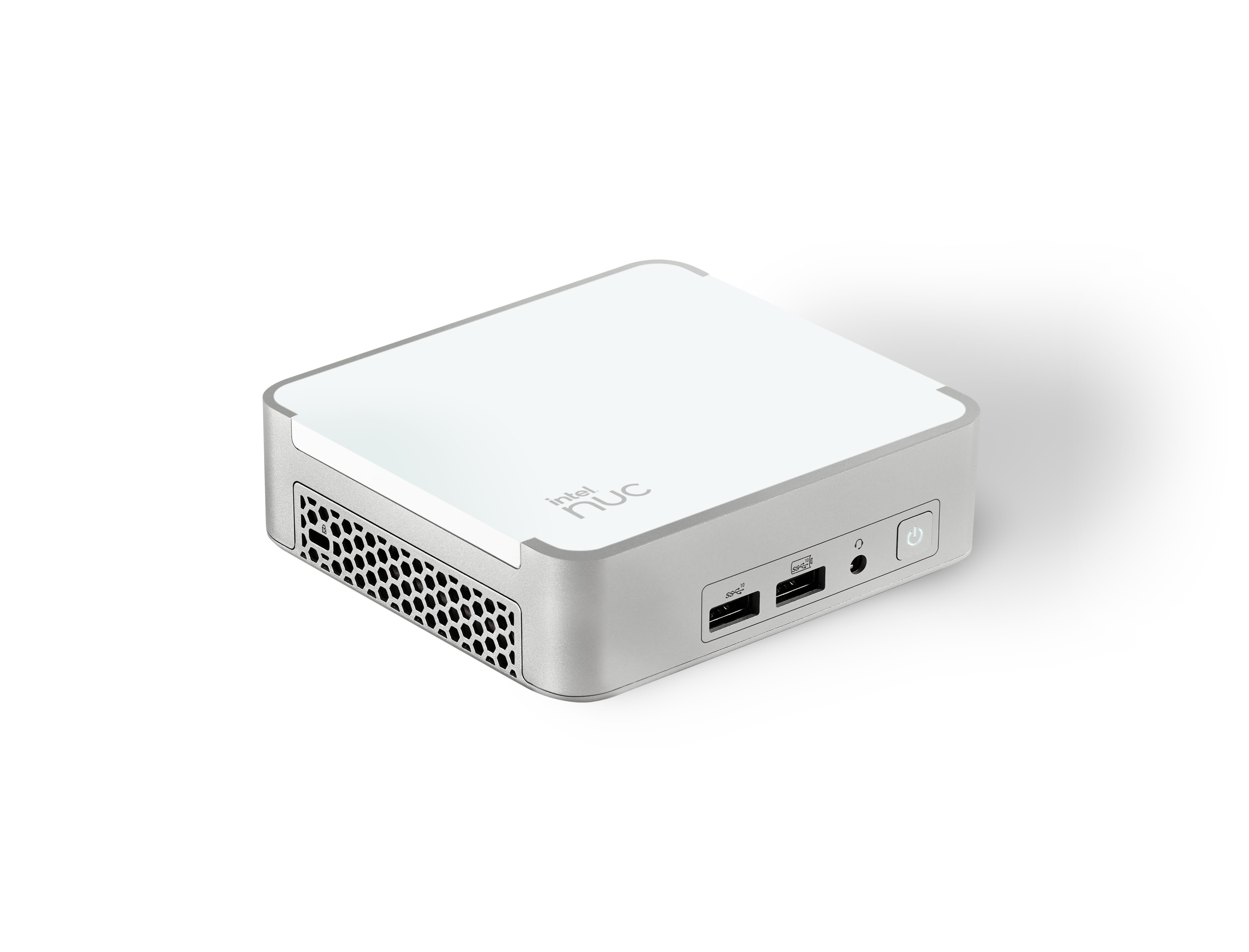

Intel NUC 13 Pro Desk Edition Kit (NUC13VYKi7), Nettop, Mini PC barebone, DDR4 SDRAM, PCI Express, Serial ATA, Wi Fi 6E (802.11ax), 120 W
Choose powerful performance, ultra small size, and our newest chassis for home use or when you want a stylish top of desk display.
Introducing the new Intel NUC 13 Pro Desk Edition
Form meets function in the eye catching Intel NUC 13 Pro Desk Edition Mini PCs and Kits. Our latest addition to the Intel NUC family delivers breakthrough performance with 12 core 13th Gen Intel Core i7 and i5 processors driving productivity and entertainment at up to 5.0GHz Turbo frequency. Our compact and powerful systems feature a silver aluminum chassis with honeycomb vents and a textured white top for proud display on any desk or entertainment center.
The Mini PC built to be seen
Make a statement with our feature rich, ultra small mini PCs that add style to any room while delivering breakthrough performance for entertainment and productivity. Every system offers whisper quiet operation at just 32 dBA, lightning fast wireless speeds with Intel Wi Fi 6E (Gig ), and the flexibility to connect up to four screens with dual HDMI 2.1 and Thunderbolt 4 ports. The new Intel NUC 13 Pro Desk Edition is available as a mini PC with Windows 11 Pro or Windows 11 Home or as a customizable kit.
Introducing the new Intel NUC 13 Pro Desk Edition
Form meets function in the eye catching Intel NUC 13 Pro Desk Edition Mini PCs and Kits. Our latest addition to the Intel NUC family delivers breakthrough performance with 12 core 13th Gen Intel Core i7 and i5 processors driving productivity and entertainment at up to 5.0GHz Turbo frequency. Our compact and powerful systems feature a silver aluminum chassis with honeycomb vents and a textured white top for proud display on any desk or entertainment center.
The Mini PC built to be seen
Make a statement with our feature rich, ultra small mini PCs that add style to any room while delivering breakthrough performance for entertainment and productivity. Every system offers whisper quiet operation at just 32 dBA, lightning fast wireless speeds with Intel Wi Fi 6E (Gig ), and the flexibility to connect up to four screens with dual HDMI 2.1 and Thunderbolt 4 ports. The new Intel NUC 13 Pro Desk Edition is available as a mini PC with Windows 11 Pro or Windows 11 Home or as a customizable kit.
| Processor | |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model The model number for the processor in a computer. | i7-1360P |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 12 |
| Processor threads | 16 |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core boost frequency | 5 GHz |
| Efficient-core boost frequency | 3.7 GHz |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 5 GHz |
| Processor cache | 18 MB |
| Processor codename | Raptor Lake |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 2 |
| Number of DIMM slots The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share. | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 3200 MHz |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory voltage The voltage (V) of the memory in the device. | 1.2 V |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Non-ECC |
|
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | M.2 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Storage drive interface Where the storage device links with other parts of the product, or an external device. | PCI Express, Serial ATA |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
|
| Number of storage drives supported How many storage drives can be fit into the product at once. | 2 |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel Iris Xe Graphics |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Number of displays supported The number of displays that can be used with this product. | 4 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Network | |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Intel I226-V |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.3 |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Serial port via internal header |
|
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 1 |
| M.2 card slot (wireless) | 2230 (E-key) (E) |
| USB ports quantity | 4 |
| M.2 card slot (storage) | 22x80 NVMe (M); 22x42 SATA (B) |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Expansion slots | |
| PCI Express slots version | 3.0, 4.0 |
| Number of M.2 (M) slots | 1 |
| Design | |
| Chassis type The type of rigid framework onto which is the hosuing for device components. | Nettop |
| Product colour The colour e.g. red, blue, green, black, white. | Silver, White |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| On/off switch The button which is pressed to switch the device on or off. |
|
| LED indicators |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Product type The sub-category of the product. | Mini PC barebone |
| Status | Launched |
| ARK ID | 233969 |
| Product family | Intel NUC |
| Product codename | Vivid Canyon |
| Performance | |
| Motherboard form factor Design of the motherboard (ATX, BTX etc). | UCFF |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 IoT Enterprise, Windows 11 Home, Windows 11 Pro |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 11 Home*, Windows 11 Pro*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu* |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. |
|
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Processor special features | |
| Intel® High Definition Audio (Intel® HD Audio) <b>Integrated Audio for Today and Tomorrow</b> A new specification for integrated audio, Intel® High Definition Audio (Intel® HD Audio) delivers the features and high-end performance of an add-in audio card while playing back more channels with improved quality. Intel HD Audio provides high-quality multi-channel audio experiences with new encoding and decoding algorithms to enhance the listening experience. |
|
| Embedded options available |
|
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel Flex Memory Access |
|
| Intel Trusted Execution Technology |
|
| Execute Disable Bit |
|
| Intel ME Firmware Version | 16.1 |
| Intel® Optane™ Memory Ready |
|
| Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0. |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Technical details | |
| Sustainability certificates | REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 8471500150 |
| Power | |
| Power supply type The type of power supply which this product uses. | External AC adapter |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 120 W |
| AC adapter output voltage | 20 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 117 mm |
| Depth The distance from the front to the back of something. | 112 mm |
| Height The measurement of the product from head to foot or from base to top. | 37 mm |
| Packaging content | |
| Power cord included |
|
| Other features | |
| Launch date | Q2'23 |
| DC input voltage | 12 - 20 V |
| SKU | 725756 |
| MPN | RNUC13VYKI70001 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| CPU Socket | Soldered-down BGA |
| Memory Type | DDR4 |
| Storage Size (HDD) | N/A |
| Desktop Type | Barebones |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
