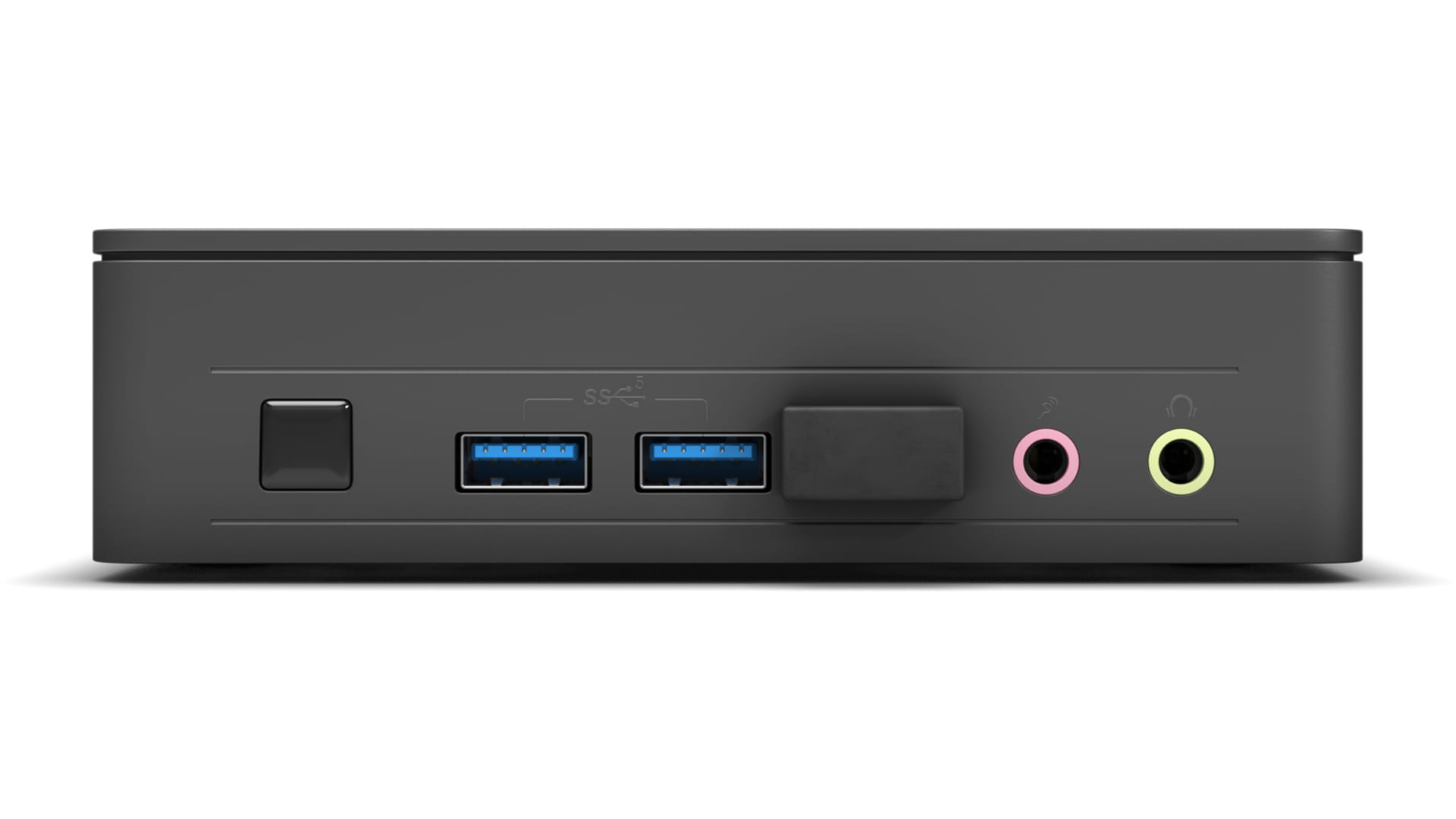

Intel NUC11ATKPE NUC Mini PC Kit N6005

Processor
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Pentium®
Processor model The model number for the processor in a computer.	N6005
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	2 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Processor threads	4
Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit).	10 nm
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	3.3 GHz
Processor cache	4 MB
L3 cache	4 MB
Thermal Design Power (TDP)	15 W
ECC supported by processor
CPU configuration (max)	1

Memory
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Number of memory slots	2
Number of DIMM slots The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share.	2
Maximum internal memory The maximum internal memory which is available in the product.	32 GB
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	2933 MHz
Supported memory types Types of memory which can be used with the product.	DDR4-SDRAM
Memory channels	Dual-channel
Memory voltage The voltage (V) of the memory in the device.	1.2 V
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.
Non-ECC

Storage
Supported storage drive types The type of storage drives the device is compatible with.	SSD
Storage drive sizes supported The sizes of storage drives that can be used with the product.	M.2
SSD form factor The size of the solid-state drive, given in inches	M.2
Number of storage drives supported How many storage drives can be fit into the product at once.	1

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family	Intel
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® UHD Graphics
Number of displays supported The number of displays that can be used with this product.	2

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.

Network
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9462
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.0

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.0b
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
DisplayPort version	1.4
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
M.2 card slot (wireless)	1
USB ports quantity	6
M.2 card slot (storage)	1

Expansion slots
PCI Express slots version	3.0

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	UCFF
Product colour The colour e.g. red, blue, green, black, white.	Black
Cooling type The method used to cool the device or to cool the air around the device.	Active
On/off switch The button which is pressed to switch the device on or off.
LED indicators
Housing material What the casing of the product is made of.	Metal, Plastic
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Product type The sub-category of the product.	Mini PC barebone
Status	Launched
ARK ID	217668
Product series	Intel® NUC Kit with Intel® Pentium® Processors

Performance
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 11, Windows 10
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Windows 10*|Linux*
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Export Control Classification Number (ECCN)	5A992C

Processor special features
Intel® vPro™ Platform Eligibility
Intel® High Definition Audio (Intel® HD Audio) <b>Integrated Audio for Today and Tomorrow</b> A new specification for integrated audio, Intel® High Definition Audio (Intel® HD Audio) delivers the features and high-end performance of an add-in audio card while playing back more channels with improved quality. Intel HD Audio provides high-quality multi-channel audio experiences with new encoding and decoding algorithms to enhance the listening experience.
Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants.
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel VT-x with Extended Page Tables (EPT)
Intel 64
Idle States
Enhanced Intel SpeedStep Technology
Intel Trusted Execution Technology
Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Logistics data
Harmonized System (HS) code	8471500150

Power
Power supply type The type of power supply which this product uses.	External AC adapter
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	65 W
Number of power supply units	1
AC adapter output voltage	19 V

Weight & dimensions
Width The measurement or extent of something from side to side.	135 mm
Depth The distance from the front to the back of something.	115 mm
Height The measurement of the product from head to foot or from base to top.	36 mm

Packaging content
Power cord included
AC adapter included

Other features
Launch date	Q1'22
DC input voltage	19 V
