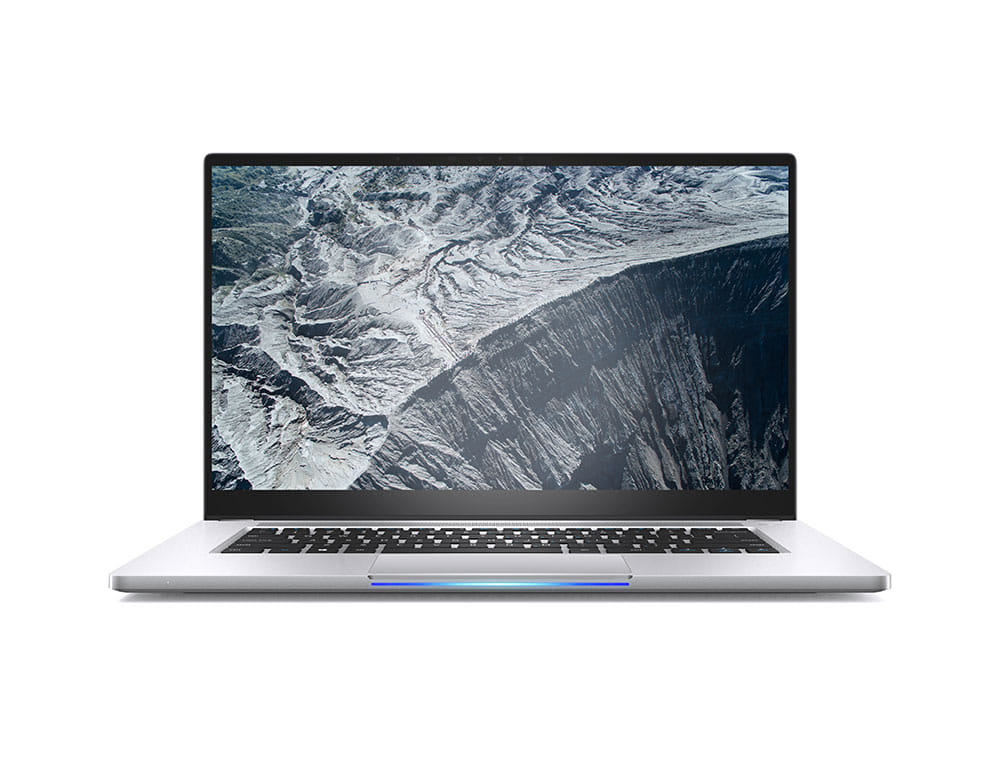

Intel NUC M15 Touch 15.6" Notebook, i7-1165G7, 16GB RAM, 512GB SSD, Windows 10 Home - Shadow Grey

Design
Colour name	Shadow Grey
Product type The sub-category of the product.	Notebook
Product colour The colour e.g. red, blue, green, black, white.	Grey
Form factor The shape or design of the product.	Clamshell
Housing material What the casing of the product is made of.	Aluminium

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	39.6 cm (15.6")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1920 x 1080 pixels
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	Full HD
Panel type	IPS
LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
RGB colour space	sRGB
Colour gamut	100%
Maximum refresh rate	60 Hz

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor model The model number for the processor in a computer.	i7-1165G7
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.7 GHz
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	11th gen Intel® Core™ i7
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Processor cache	12 MB
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	28 W
Configurable TDP-down	12 W
Configurable TDP-down frequency	1.2 GHz

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	16 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	LPDDR4x-SDRAM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	4266 MHz

Storage
Total storage capacity The total amount of data that can be stored on the device.	512 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	512 GB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	NVMe,PCI Express 4.0
SSD form factor The size of the solid-state drive, given in inches	M.2

Graphics
Discrete graphics adapter model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board graphics adapter Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics adapter
On-board graphics adapter model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel Iris Xe Graphics

Audio
Audio chip	Realtek ALC711-CG
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone Microphone that is found inside the product.

Camera
Front camera Camera at the front of the product.
Front camera resolution	1280 x 720 pixels
Front camera HD type	HD
Infrared (IR) camera

Network
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6 (802.11ax)
Mobile network connection
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
WLAN controller model	Intel Wi-Fi 6 AX201
WLAN controller manufacturer	Intel
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.1

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Thunderbolt technology Based on the PCI Express and DisplayPort technologies, Thunderbolt technology supports both data devices and displays.
USB4 Gen 2x2 ports quantity	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.0
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	2

Keyboard
Pointing device	Clickpad
Keyboard language The letters which are marked on the keys for convenience of the keyboard usage with specific language.	US English
Numeric keypad Small, palm-sized, seventeen key section of a computer keyboard, usually on the very far right. The numeric keypad features digits 0 to 9, addition (+), subtraction (-), multiplication (*) and division (/) symbols, a decimal point (.) and Num Lock and Enter keys. Laptop keyboards often do not have a numpad, but may provide numpad input by holding a modifier key (typically labelled "Fn") and operating keys on the standard keyboard.
Keyboard backlit

Software
Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.	64-bit
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 10 Home

Processor special features
Intel Trusted Execution Technology
Intel VT-x with Extended Page Tables (EPT)
Intel Stable Image Platform Program (SIPP)
Intel Software Guard Extensions (Intel SGX)
Idle States
CPU configuration (max)	1
Embedded options available
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Battery
Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery.	4830 mAh
Battery capacity (Watt-hours)	73.41 Wh
Fast charging

Power
AC adapter power	65 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
USB charging voltage	20 V

Security
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Windows Hello

Weight & dimensions
Width The measurement or extent of something from side to side.	355 mm
Depth The distance from the front to the back of something.	230 mm
Height The measurement of the product from head to foot or from base to top.	15 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.65 kg
