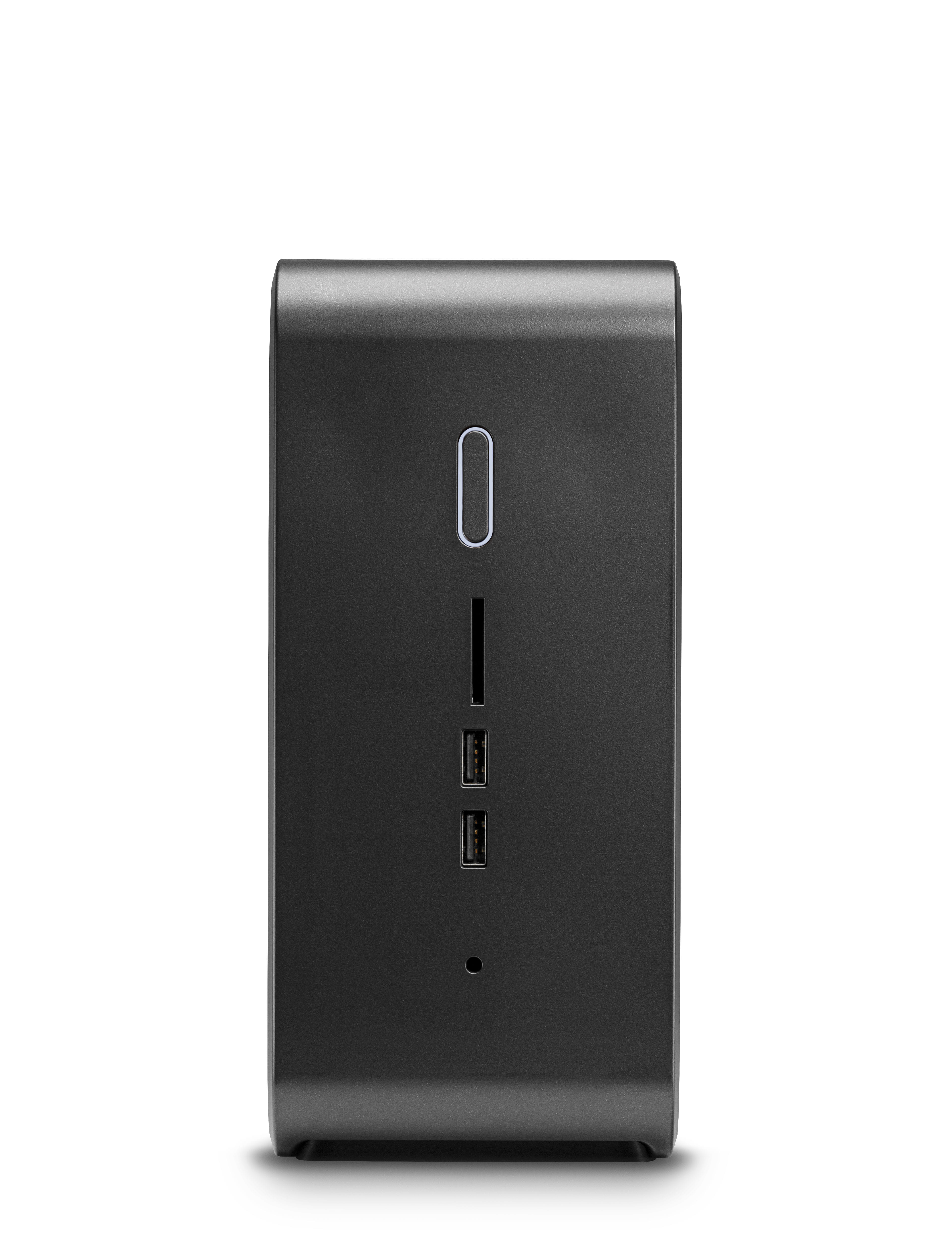

Intel NUC BXNUC9I7QNX1, PC barebone, Intel® CM246, BGA 1440, DDR4-SDRAM, Ethernet LAN, Wi-Fi 6 (802.11ax)
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration. Visit www.intel.com/OptaneMemory for configuration requirements.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
TPM
Trusted Platform Module (TPM) is a component on the desktop board that is specifically designed to enhance platform security above-and-beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple virtual" platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration. Visit www.intel.com/OptaneMemory for configuration requirements.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
TPM
Trusted Platform Module (TPM) is a component on the desktop board that is specifically designed to enhance platform security above-and-beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple virtual" platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i7 |
| Processor generation | 9th gen Intel® Core™ i7 |
| Processor model The model number for the processor in a computer. | i7-9750H |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 6 |
| Processor threads | 12 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.5 GHz |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 2.6 GHz |
| Built-in processor Whether or not a processor is built into the device. |
 |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor cache | 12 MB |
| Thermal Design Power (TDP) | 45 W |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Processor codename | Coffee Lake |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds. | SO-DIMM |
| Number of memory slots | 2 |
| Number of DIMM slots The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share. | 2 |
| Maximum internal memory The maximum internal memory which is available in the product. | 64 GB |
| Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size. | 2400,2666 MHz |
| Supported memory types Types of memory which can be used with the product. | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 42.6 GB/s |
| Removable memory card slot | SDXC with UHS-II support |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Storage | |
| Supported storage drive types The type of storage drives the device is compatible with. | SSD |
| Storage drive sizes supported The sizes of storage drives that can be used with the product. | M.2 |
| SSD form factor The size of the solid-state drive, given in inches | M.2 |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 3 |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | SDXC |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
|
| Graphics card family | Intel |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel® UHD Graphics 630 |
| Number of displays supported The number of displays that can be used with this product. | 3 |
| Network | |
| Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard. | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| LAN controller | Intel I219LM |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.0 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 2.0a |
| Combo headphone/mic port |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| S/PDIF out port S/PDIF (Sony/Philips Digital Interconnect Format) is a digital audio interconnect used in consumer audio equipment over relatively short distances. The signal is transmitted over either a coaxial cable with RCA connectors or a fibre optic cable with TOSLINK connectors. |
|
| Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface. | 3 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB ports quantity | 11 |
| Thunderbolt 3 ports quantity | 2 |
| M.2 card slot (storage) | 2 via PCH + 1 via CPU (NVMe) |
| Graphics output | 2x Thunderbolt 3, HDMI 2.0a |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard. | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Product type The sub-category of the product. | PC barebone |
| Status | Launched |
| ARK ID | 190109 |
| Product series | Intel® NUC Kit with 9th Generation Intel® Core™ Processors |
| Performance | |
| Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard. | Intel® CM246 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | BGA 1440 |
| Trusted Platform Module (TPM) |
|
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Supported RAID configuration | 2x M.2 SATA/PCIe SSD, SATA header (RAID-0 RAID-1) |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Processor special features | |
| Intel® vPro™ Platform Eligibility |
|
| Embedded options available |
|
| Intel® Virtualization Technology (Intel® VT) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. | VT-d |
| Intel Rapid Storage Technology |
|
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Intel® Quick Sync Video Technology <b>Create, Edit, and Share Video in a Flash</b> Intel® Quick Sync Video uses the dedicated media processing capabilities of Intel® Graphics Technology to make video encoding tasks—such as creating DVDs or Blu-ray discs, creating and editing 3D videos, converting 2D video files into 3D, and converting video for portable media players and social networking sites—faster and easier. |
|
| Intel® InTru™ 3D Technology Add a new dimension to your viewing experience. Now you can play games and watch your favorite 3D movies with Blu-ray Stereo 3D playback using passive or active shutter 3D glasses. InTru™ 3D technology by Intel in association with Dreamworks delivers it all in 1080p full high-definition resolution on your TV over HDMI 1.4. |
|
| Intel® Clear Video HD Technology (Intel® CVT HD) <b>See the World More Vividly</b> Intel® Clear Video HD Technology delivers cleaner, sharper images, more natural, accurate, and vivid colors. View images as they were meant to be seen on devices featuring Intel® Core™ processors with Intel® Graphics Technology. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel 64 |
|
| Intel® My WiFi Technology (Intel® MWT) Intel® My WiFi Technology (Intel® MWT) uses an extensible software architecture that allows the operating system to think the notebook has two Wi-Fi radios performing similar, but different, functions. Each virtual Wi-Fi radio is assigned a TCP/IP stack. |
|
| Idle States |
|
| Enhanced Intel SpeedStep Technology |
|
| Thermal Monitoring Technologies |
|
| Intel Flex Memory Access |
|
| Intel® Identity Protection Technology (Intel® IPT) <b>Protect Your Identity and Business</b> Intel® Identity Protection Technology (Intel® IPT) protects enterprises from being penetrated by stolen credentials and online user account access with an added layer of hardware-based security and authentication as well as a multifactor authentication framework to manage different authentication methods. |
|
| Intel Trusted Execution Technology |
|
| Execute Disable Bit |
|
| Intel TSX-NI |
|
| Intel® Secure Key <b>Generate Cryptographic Security Protocols</b> Intel® Secure Key is a security hardware-based random number generator that can generate high-quality keys for cryptographic (encryption and decryption) protocols. These keys provide quality entropy that is highly sought after in the cryptography world for added security. |
|
| Intel Stable Image Platform Program (SIPP) |
|
| Intel® OS Guard <b>Protect Your Operating Environment</b> Intel® OS Guard, a hardware-based security feature that protects the operating system kernel, defends against malicious data or attack code located in areas of memory marked as user mode pages, preventing any application from taking over or compromising the OS kernel. |
|
| Intel Clear Video Technology |
|
| Intel® Optane™ Memory Ready |
|
| Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0. |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Logistics data | |
| Harmonized System (HS) code | 8471500150 |
| Software | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64 |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 11 (64-bit), Windows 10 (64-bit) |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. |
|
| Power | |
| Power supply type The type of power supply which this product uses. | Internal power supply unit |
| AC adapter output voltage | 19 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 0 - 65 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 238 mm |
| Depth The distance from the front to the back of something. | 216 mm |
| Height The measurement of the product from head to foot or from base to top. | 96 mm |
| Packaging content | |
| Power cord included |
|
| Processor included | Intel® Core™ i7-9750H Processor (12M Cache, up to 4.50 GHz) |
| Other features | |
| Launch date | Q1'20 |
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL |
| Number of SATA connectors | 3 |
| Processor ARK ID | 191045 |
| SKU | 774311 |
| MPN | NUC9I7QNX1 |
