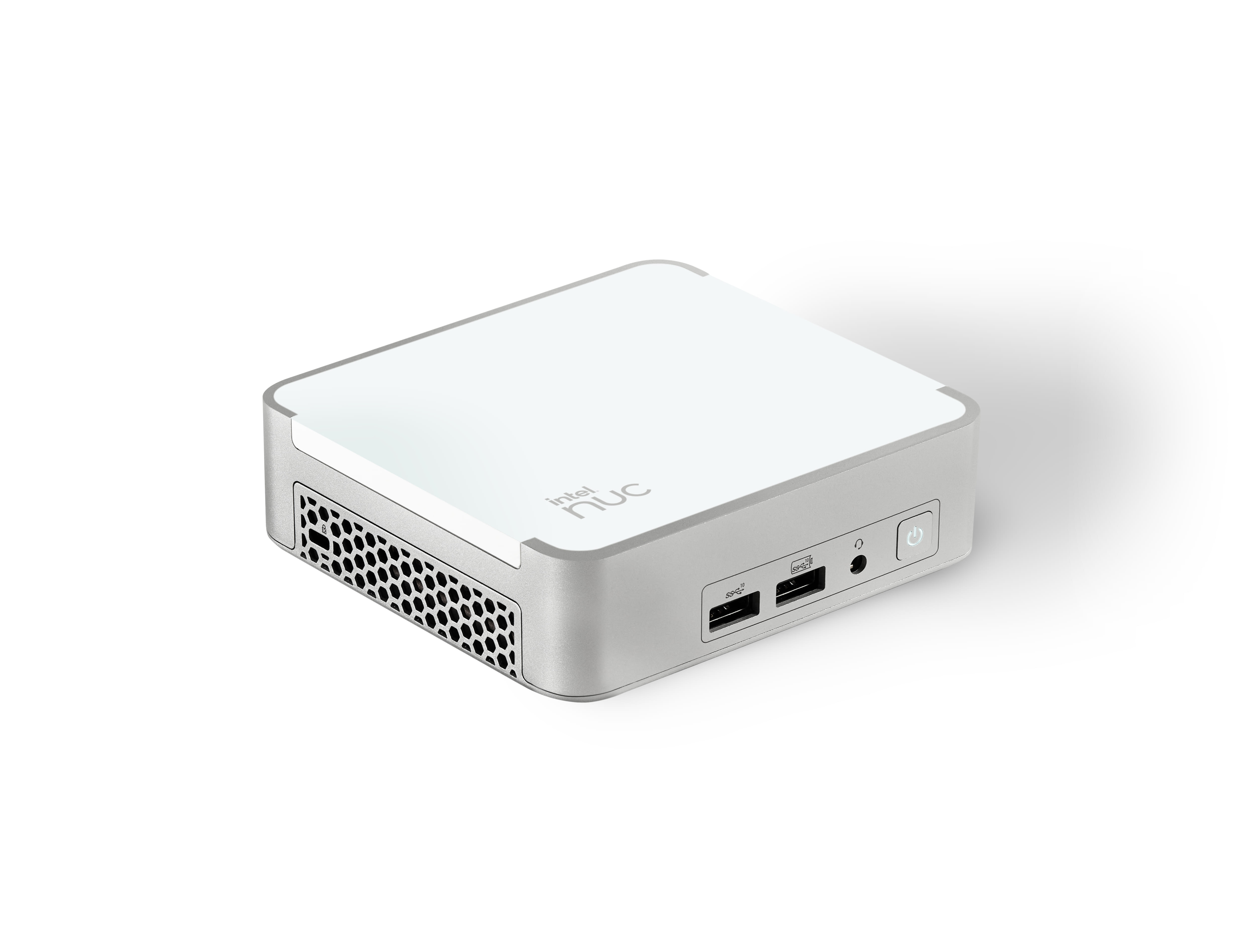

Intel NUC13VYKI70QC 13 Pro Desk Edition Mini PC, i7-1360P, 16GB RAM, 512GB SSD, Windows 11 Pro

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model The model number for the processor in a computer.	i7-1360P
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	12
Performance cores	4
Efficient cores	8
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core Max Turbo Frequency	5 GHz
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Processor threads	16
Processor base power	28 W
Maximum turbo power	64 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	16 GB
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4-SDRAM
Memory layout (slots x size) The slots and size of the memory for the CPU.	2 x 8 GB
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2x SO-DIMM
Memory clock speed The frequency at which the memory (e.g. RAM) runs.	3200 MHz
Non-ECC
Memory channels	Dual-channel

Storage
Total storage capacity The total amount of data that can be stored on the device.	512 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Number of storage drives installed Amount of storage drives built into the device.	1
Number of storage drives supported How many storage drives can be fit into the product at once.	2
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	512 GB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	PCI Express 4.0
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
SSD form factor The size of the solid-state drive, given in inches	M.2

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel Iris Xe Graphics

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000,2500 Mbit/s
LAN controller	Intel I226-V
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.3

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	2
HDMI version	2.1
Combo headphone/mic port
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	UCFF
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Horizontal/Vertical
VESA mounting
Water cooling system System using water to remove heat from a machine or system.
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Product colour The colour e.g. red, blue, green, black, white.	White

Performance
Motherboard form factor Design of the motherboard (ATX, BTX etc).	UCFF
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	7.1 channels
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Product type The sub-category of the product.	Mini PC
Status	Launched

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Pro
Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.	64-bit

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C

Sustainability
Sustainability compliance
Sustainability certificates	ENERGY STAR, REACH, RoHS

Weight & dimensions
Width The measurement or extent of something from side to side.	117 mm
Depth The distance from the front to the back of something.	111 mm
Height The measurement of the product from head to foot or from base to top.	37 mm

Packaging content
Display included This product includes a display.
Cables included	AC

Other features
ARK ID	233973
