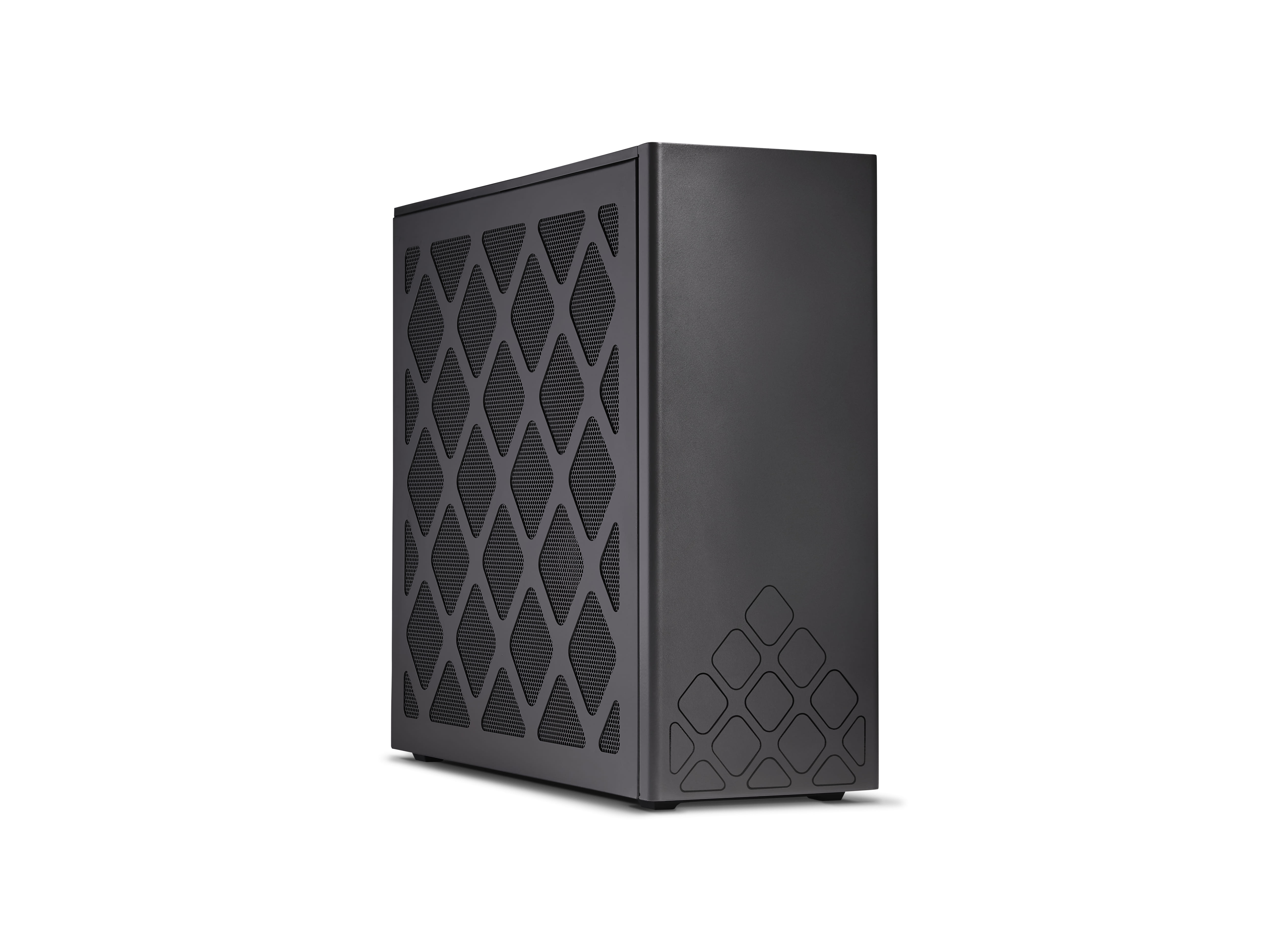

Intel NUC 13 Extreme Kit NUC13RNGI7 Barebone

Processor
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i7
Processor generation	13th gen Intel® Core™ i7
Processor model The model number for the processor in a computer.	i7-13700K
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	16
Processor threads	24
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5.4 GHz
Processor cache	30 MB
L2 cache The CPU cache (Level 2) is a smaller, faster memory which stores copies of the data from the most frequently used main memory locations.	24 MB
Thermal Design Power (TDP)	125 W

Memory
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Number of memory slots	2
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Supported memory types Types of memory which can be used with the product.	DDR-SDRAM
Memory channels	Dual-channel
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.

Storage
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Storage drive sizes supported The sizes of storage drives that can be used with the product.	M.2,2.5
SSD form factor The size of the solid-state drive, given in inches	M.2
Storage drive interface Where the storage device links with other parts of the product, or an external device.	PCI Express, Serial ATA III
Number of storage drives supported How many storage drives can be fit into the product at once.	5
RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.	0, 1

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family	Intel
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel UHD Graphics 770
Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels.	7680 x 4320 pixels
Number of displays supported The number of displays that can be used with this product.	3

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.

Network
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6E (802.11ax)
WLAN controller model	Killer Wi-Fi 6E AX1690
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	6
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.1
Microphone in The socket where a microphone is connected to the device.
Headphone outputs Number of sockets /ports where headphones are connected.	1
Combo headphone/mic port
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.	4
M.2 card slot (wireless)	Killer™ Wi-Fi 6E AX1690i
USB ports quantity	11
M.2 card slot (storage)	2 via PCH + 1 via CPU (NVMe)
Thunderbolt 4 ports quantity	2

Expansion slots
PCI Express slots version	5, 4.0

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Desktop
Product colour The colour e.g. red, blue, green, black, white.	Black
Cooling type The method used to cool the device or to cool the air around the device.	Active
On/off switch The button which is pressed to switch the device on or off.
LED indicators
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Product type The sub-category of the product.	PC barebone
Status	Launched
Product family	Intel NUC
Product series	Intel NUC kit
Product codename	Raptor Canyon
Certification	IEC/EN/UL 60950-1 IEC/EN/UL 62368-1 FCC Part 15B/15C/15E CISPR/EN 55032/55024 ICES-003 VCCI 32 BSMI CNS 13438 KN 32/35 AS/NZS CISPR 32 EN 300 328 EN 301 893 EN 300 440 EN 301 489-1/3/17 EN 62311 AS/NZS 4268 AS/NZS 2772.2 ARPANSA

Performance
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel Z690
Number of processors supported The quantity of processors which can be used by the product.	1
BIOS type The BIOS (Basic Input/Output System) initializes and tests system hardware components, and loads a bootloader or an operating system from a mass memory device. The BIOS additionally provides abstraction layer for the hardware, i.e. a consistent way for application programs and operating systems to interact with the keyboard, display, and other input/output devices. There are several types of BIOS, including the motherboard ROM BIOS, video BIOS, drive controller BIOS, network adapter BIOS, and SCSI adapter BIOS.	EEPROM
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	7.1 channels
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 11 x64
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Windows 11 (64-bit)
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Harmonized System (HS) code	8471500150
Export Control Classification Number (ECCN)	5A992C

Processor special features
Embedded options available
Intel Rapid Storage Technology
Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants.
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel® Optane™ Memory Ready
Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Technical details
Sustainability certificates	ENERGY STAR, RoHS
Introduction year	2022
Warranty period	3 year(s)

Power
Power supply type The type of power supply which this product uses.	Internal power supply unit
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	750 W
Number of power supply units	1

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 40 °C

Weight & dimensions
Width The measurement or extent of something from side to side.	129 mm
Depth The distance from the front to the back of something.	337 mm
Height The measurement of the product from head to foot or from base to top.	318 mm

Other features
Launch date	Q4'22
Number of SATA connectors	4
HDD size The amount of data that the hard drive can store.	2.5"
