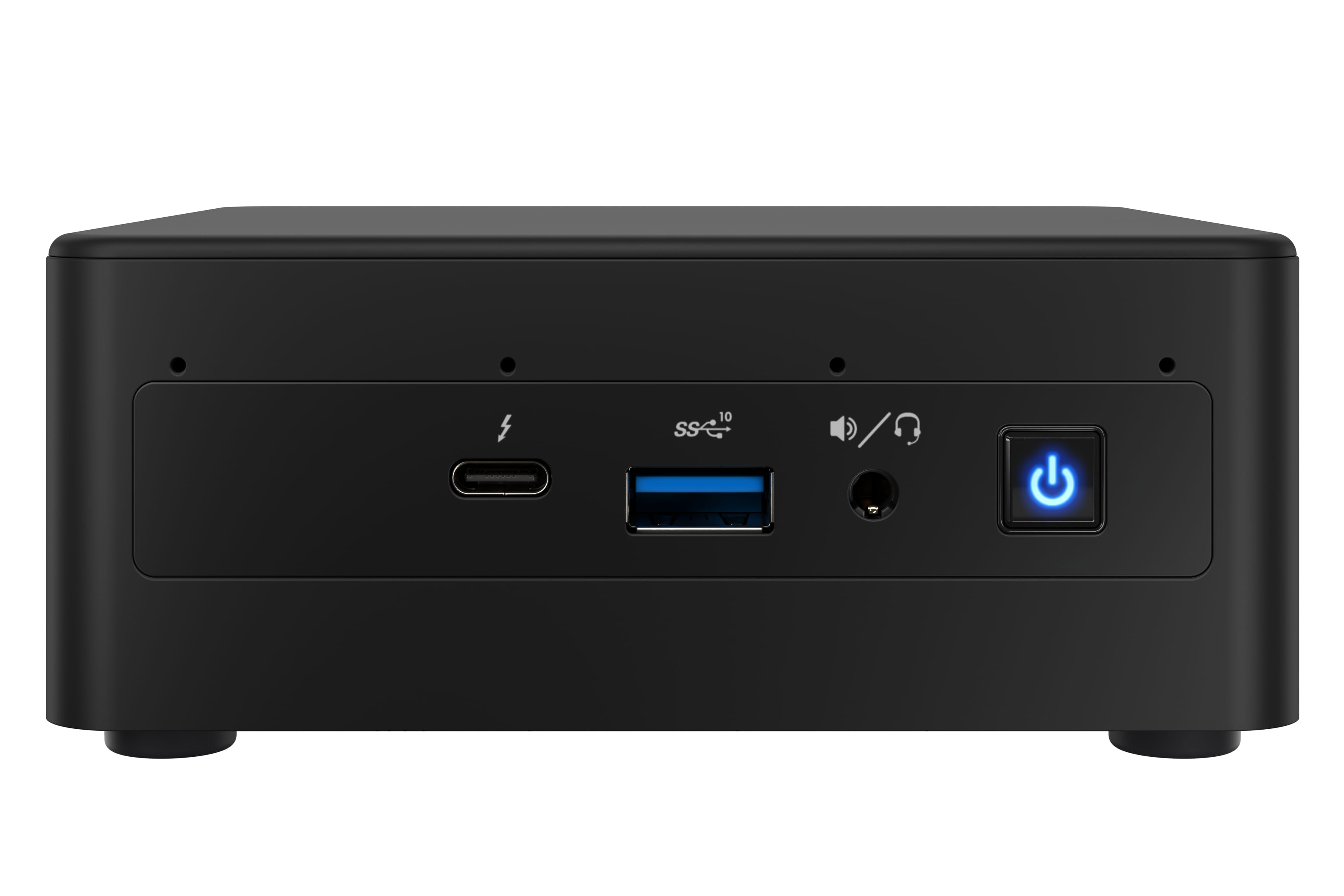

Intel NUC 11PAHI3 RNUC11PAHI30Z00 Barebone

Processor
Built-in processor Whether or not a processor is built into the device.
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i3
Processor generation	11th gen Intel® Core™ i3
Processor model The model number for the processor in a computer.	i3-1115G4
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	2
Processor threads	4
Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit).	10 nm
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.1 GHz
Processor cache	6 MB
Thermal Design Power (TDP)	40 W
Memory bandwidth supported by processor (max)	51.2 GB/s
CPU configuration (max)	1

Memory
Memory slots type A memory slot, also known as a memory socket or RAM slot, is what allows computer memory (RAM) to be inserted into the computer. Depending on the motherboard, there will usually be 2 to 4 memory slots (sometimes more on high-end motherboards). The most common types of RAM are SDRAM and DDR for desktop computers and SODIMM for laptop computers, each having various types and speeds.	SO-DIMM
Number of memory slots	2
Number of DIMM slots The number of places where DIMMs can be connected. A DIMM or dual in-line memory module comprises a series of dynamic random-access memory integrated circuits. These modules are mounted on a printed circuit board and designed for use in personal computers, workstations and servers. DIMMs began to replace SIMMs (single in-line memory modules) as the predominant type of memory module as Intel P5-based Pentium processors began to gain market share.	2
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Supported memory clock speeds Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.	3200 MHz
Supported memory types Types of memory which can be used with the product.	DDR4-SDRAM
Memory channels	Dual-channel
Memory bandwidth (max)	51.2 GB/s
Removable memory card slot	SDXC with UHS-II support
ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention.

Storage
Supported storage drive types The type of storage drives the device is compatible with.	HDD & SSD
Storage drive sizes supported The sizes of storage drives that can be used with the product.	M.2,2.5
SSD form factor The size of the solid-state drive, given in inches	M.2
Number of storage drives supported How many storage drives can be fit into the product at once.	2

Graphics
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Graphics card family	Intel
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel® UHD Graphics
Number of displays supported The number of displays that can be used with this product.	4

Network
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
LAN controller	Intel I225-V
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	2.0b
Mini DisplayPorts quantity	1
DisplayPort version	1.4
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Number of SATA III connectors Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface, formally known as SATA 6Gb/s, is a third generation SATA interface running at 6.0Gb/s. The bandwidth throughput, which is supported by the interface, is up to 600MB/s. This interface is backwards compatible with SATA 3 Gb/s interface.	2
USB ports quantity	7
Thunderbolt 3 ports quantity	2
M.2 card slot (storage)	2280
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Expansion slots
PCI Express slots version	4.0

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	UCFF
Product colour The colour e.g. red, blue, green, black, white.	Black
Cooling type The method used to cool the device or to cool the air around the device.	Passive
LED indicators
Product type The sub-category of the product.	Mini PC barebone
Status	Launched

Performance
Motherboard form factor Design of the motherboard (ATX, BTX etc).	UCFF
Number of processors supported The quantity of processors which can be used by the product.	1
Trusted Platform Module (TPM)
Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.	7.1 channels
Consumer infrared Rx sensor
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 11 x64, Windows 10 x64
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Windows 10, 64-bit*
Commodity Classification Automated Tracking System (CCATS)	G157815L2
Harmonized System (HS) code	84713000
Export Control Classification Number (ECCN)	5A992C

Processor special features
Intel® vPro™ Platform Eligibility
Intel® High Definition Audio (Intel® HD Audio) <b>Integrated Audio for Today and Tomorrow</b> A new specification for integrated audio, Intel® High Definition Audio (Intel® HD Audio) delivers the features and high-end performance of an add-in audio card while playing back more channels with improved quality. Intel HD Audio provides high-quality multi-channel audio experiences with new encoding and decoding algorithms to enhance the listening experience.
Embedded options available
Intel Rapid Storage Technology
Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants.
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel VT-x with Extended Page Tables (EPT)
Idle States
Intel Trusted Execution Technology
Intel Stable Image Platform Program (SIPP)
Intel® Platform Trust Technology (Intel® PTT) Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.

Power
Power supply type The type of power supply which this product uses.	External AC adapter
AC adapter output voltage	19 V

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C

Weight & dimensions
Width The measurement or extent of something from side to side.	117 mm
Depth The distance from the front to the back of something.	112 mm
Height The measurement of the product from head to foot or from base to top.	51 mm

Other features
Launch date	Q2'22
Additional headers	CEC, USB3.1, USB2.0, FRONT_PANEL, RGB
Number of SATA connectors	2
HDD size The amount of data that the hard drive can store.	2.5"
DC input voltage	19 V
