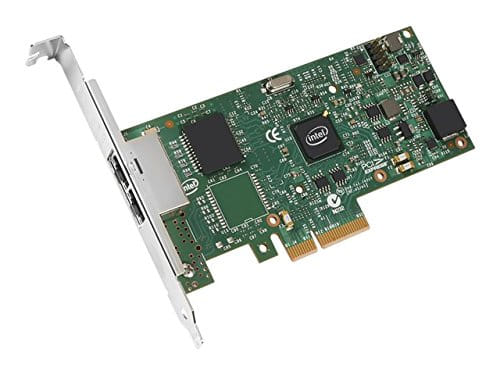

Intel I350T2V2, Internal, Wired, PCI Express, Ethernet, 1000 Mbit/s
Intel Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.
Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| PCI version | 2.1 |
| PCI Card form factor Design of the PCI Card. | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 1000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000 Mbit/s |
| Cabling technology Type of cable technology performance. | 10/100/1000BaseT(X) |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP, UDP, IP |
| Maximum operating distance The maximum distance from which you can operate the device. | 100 m |
| LAN controller | Intel® I350 |
| Design | |
| Component for What this product is used as a part of (component for). | Server |
| Internal The product is built in. |
|
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Intel® I350 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5 W |
| System requirements | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Storage relative humidity (H-H) | 35 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68.9 mm |
| Depth The distance from the front to the back of something. | 135.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Packaging content | |
| Manual |
|
| Other features | |
| Cable type Type of cable e.g. electicity cable, optical cable. | Cat 5 up to 100m |
| Intel Virtual Machine Device Queues (VMDq) |
|
| PCI-SIG* SR-IOV Capable |
|
| On-chip QoS and Traffic Management |
|
| Intel Flexible Port Partitioning |
|
| Storage-over-ethernet |
|
| Speed & slot width | 5.0 GT/s, x4 Lane |
| Low halogen options available |
 |
| Intelligent Offloads |
|
| iWARP/RDMA |
|
| Intel Ethernet Power Management |
|
| Intel Virtualization Technology for Connectivity (VT-c) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Interface type | PCIe v2.1 (5.0 GT/s) |
| Storage Over Ethernet | iSCSI, NFS |
| Launch date | Q3'14 |
| Market segment | Server |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350 |
| Product type The sub-category of the product. | Network Interface Card |
| Status | Launched |
| Thermal Design Power (TDP) | 4.4 W |
| Last change | 63903513 |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Ethernet adapter ARK ID | 84804 |
| Harmonized System (HS) code | 8517620090 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel I350 |
| Cabling type | Cat 5 up to 100m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Product family | Intel Gigabit server adapter |
| Product series | Intel® I350 |
| Product codename | Powerville |
| SKU | 535484 |
| MPN | I350T2V2 |
| Brand | Intel |
