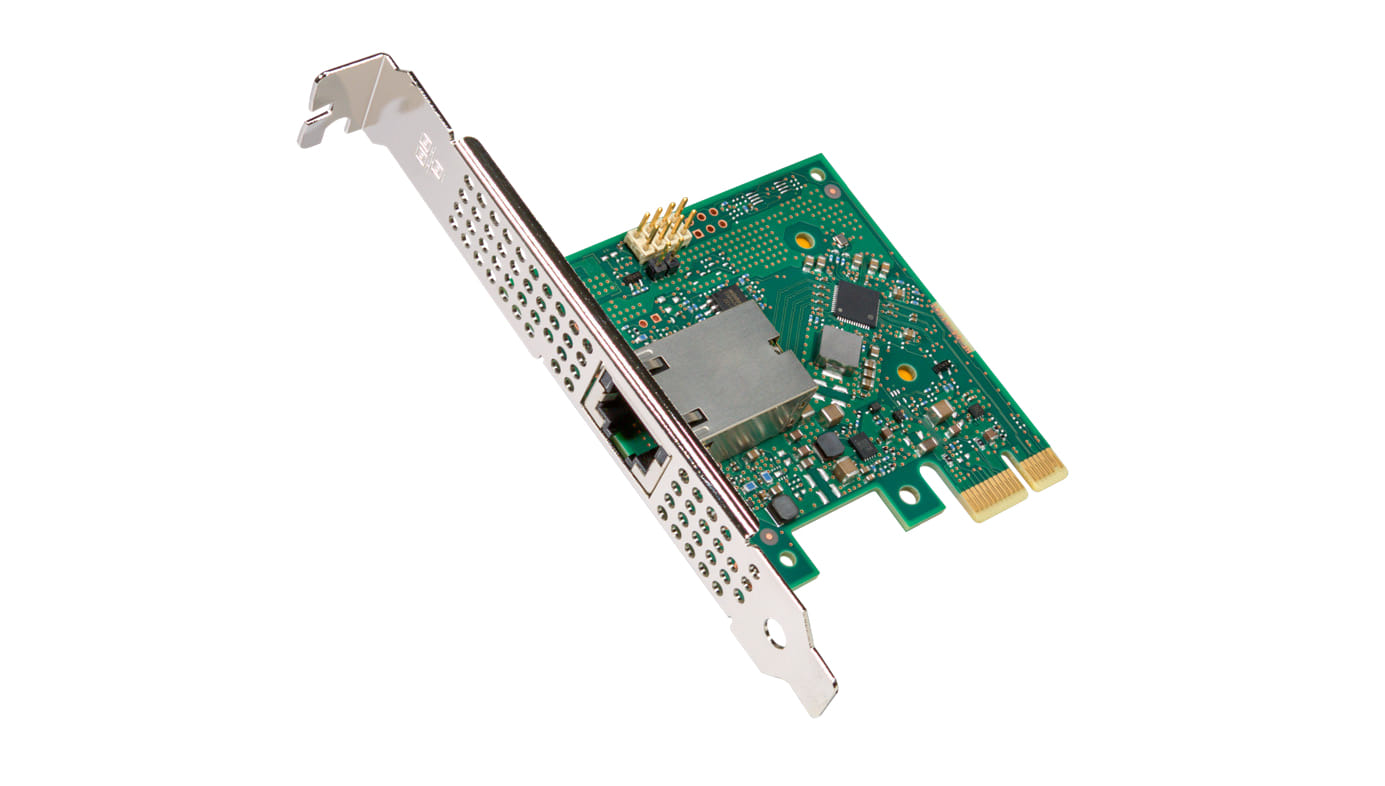

Intel I226-T1, Internal, Wired, PCI Express, Ethernet, 25000 Mbit/s, Green, Silver
The Intel Ethernet Network Adapter I226-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I226-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.
Packed with performance optimization capabilities, the I226-T1 includes advanced interrupt-handling features to reduce CPU overhead. Combining interrupt-handling features with intelligent filtering, ordering, and directing packets to specific queues and cores, enables load-balancing network traffic flows to improve throughput in multi-core platforms.
Based on the Intel Ethernet Controller I226-LM, this versatile networking solution supports 2.5Gbps, 1Gbps, 100Mbps and 10Mbps network speeds without the need to overhaul existing cabling infrastructure. Simplifying technology transitions with autonegotiation between port speeds provides maximum flexibility.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PCI version | 3.1 |
| PCI Card form factor Design of the PCI Card. | Full-height (low-profile) |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 25000 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Jumbo frames support |
|
| Maximum operating distance The maximum distance from which you can operate the device. | 100 m |
| Design | |
| Component for What this product is used as a part of (component for). | PC/Server |
| Product colour The colour e.g. red, blue, green, black, white. | Green, Silver |
| Internal The product is built in. |
|
| LED indicators | Activity, Link |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1.4 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | BSMI, CE, Federal Communications Commission (FCC), KCC, RoHS, VCCI |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68.7 mm |
| Depth The distance from the front to the back of something. | 65.3 mm |
| Logistics data | |
| Harmonized System (HS) code | 8517620090 |
| Other features | |
| Market segment | Desktop |
| Launch date | Q3'23 |
| Network interface card cable medium | Copper |
| Ethernet adapter ARK ID | 225771 |
| Export Control Classification Number (ECCN) | 5A991.B.4.A |
| Cabling type | CAT5e, CAT6, CAT6A |
| SKU | 757175 |
| MPN | I226T1 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
