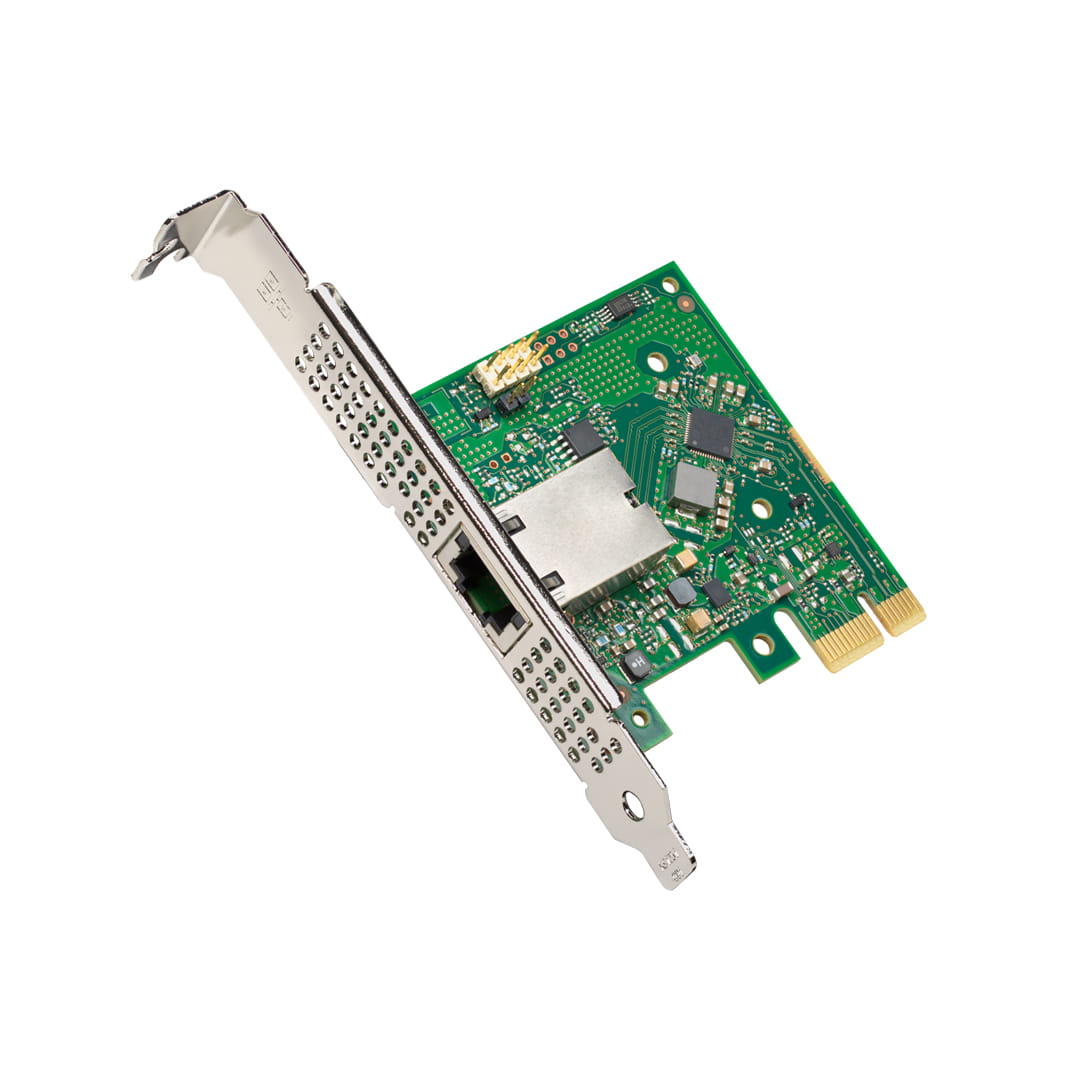

Intel I225-T1, Internal, Wired, PCI Express, Ethernet, 2500 Mbit/s, Green, Grey
The Intel Ethernet Network Adapter I225-T1 is ideally suited for personal computers and workstations used for enterprise, gaming, and home networks. These systems require more bandwidth than ever before. This ultra-compact, easy-to-integrate PCIe 3.1 x1 adapter, is a cost-effective networking solution for speeds up to 2.5GbE. The I225-T1 is also designed with a ventilated bracket, for increased efficiency and reduced power consumption.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| PCI version | 3.1 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 2500 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,2500 Mbit/s |
| Design | |
| Component for What this product is used as a part of (component for). | PC |
| Product colour The colour e.g. red, blue, green, black, white. | Green, Grey |
| Internal The product is built in. |
|
| LED indicators | Activity, Link |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 68.7 mm |
| Depth The distance from the front to the back of something. | 65.3 mm |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Cable type Type of cable e.g. electicity cable, optical cable. | CAT5e, CAT6, CAT6A |
| Speed & slot width | 5.0 GT/s, x1 Lane |
| Launch date | Q1'21 |
| Network interface card cable medium | Copper |
| Network interface card type | Desktop |
| Status | Launched |
| Thermal Design Power (TDP) | 1.92 W |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Ethernet adapter ARK ID | 211808 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| SKU | 758150 |
| MPN | I225T1 |
| Brand | Intel |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.intel.com.au/ |
